General:
A revolutianary evolution of the Fast Connector Socket. This socket line has the smallest connector diameter available inthe market today, and still meets the respective EN standards. It has been designed to go through the smallest spaces in a crane reeving system.
This unique patent pending design allows refitting by pouring in the field, saving valuable down time compared to swaging techniques.
Available with both regular and spin resistant (SR) connector.
The standard finish of our sockets is blue. Hot dipped galvanized is also available.

Standard: EN 10204-2.1 declaration of conformity / EN 10204-3.1 material certificate.
Option: hot dip galvanized.
  • Material: Quenched and tempered cast steel.

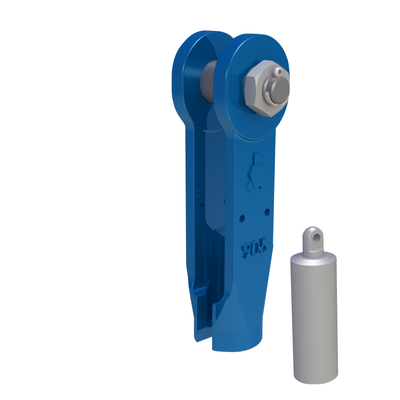

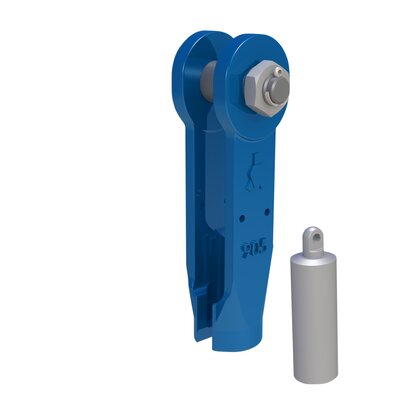

Super reeve connector Socket

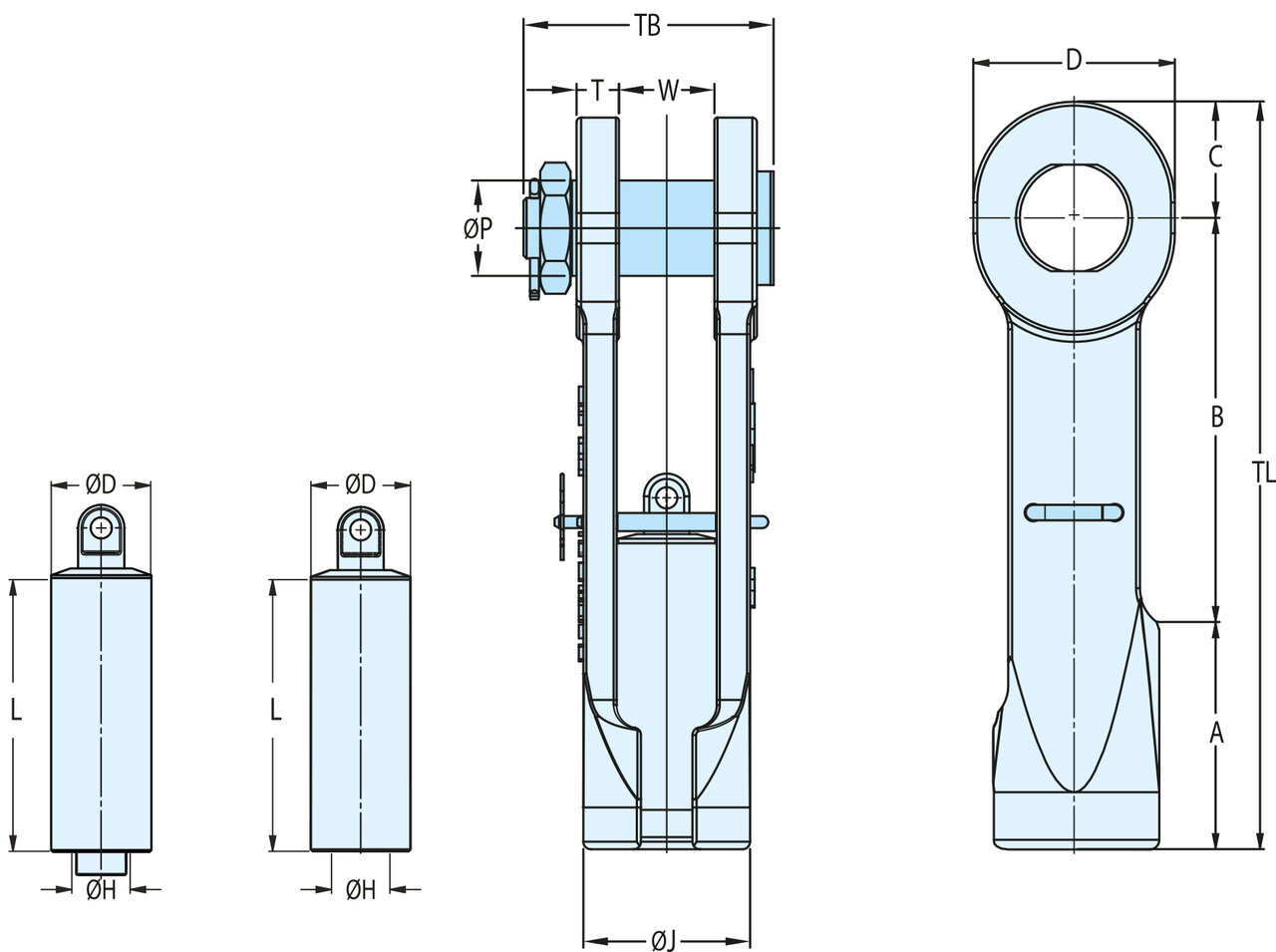

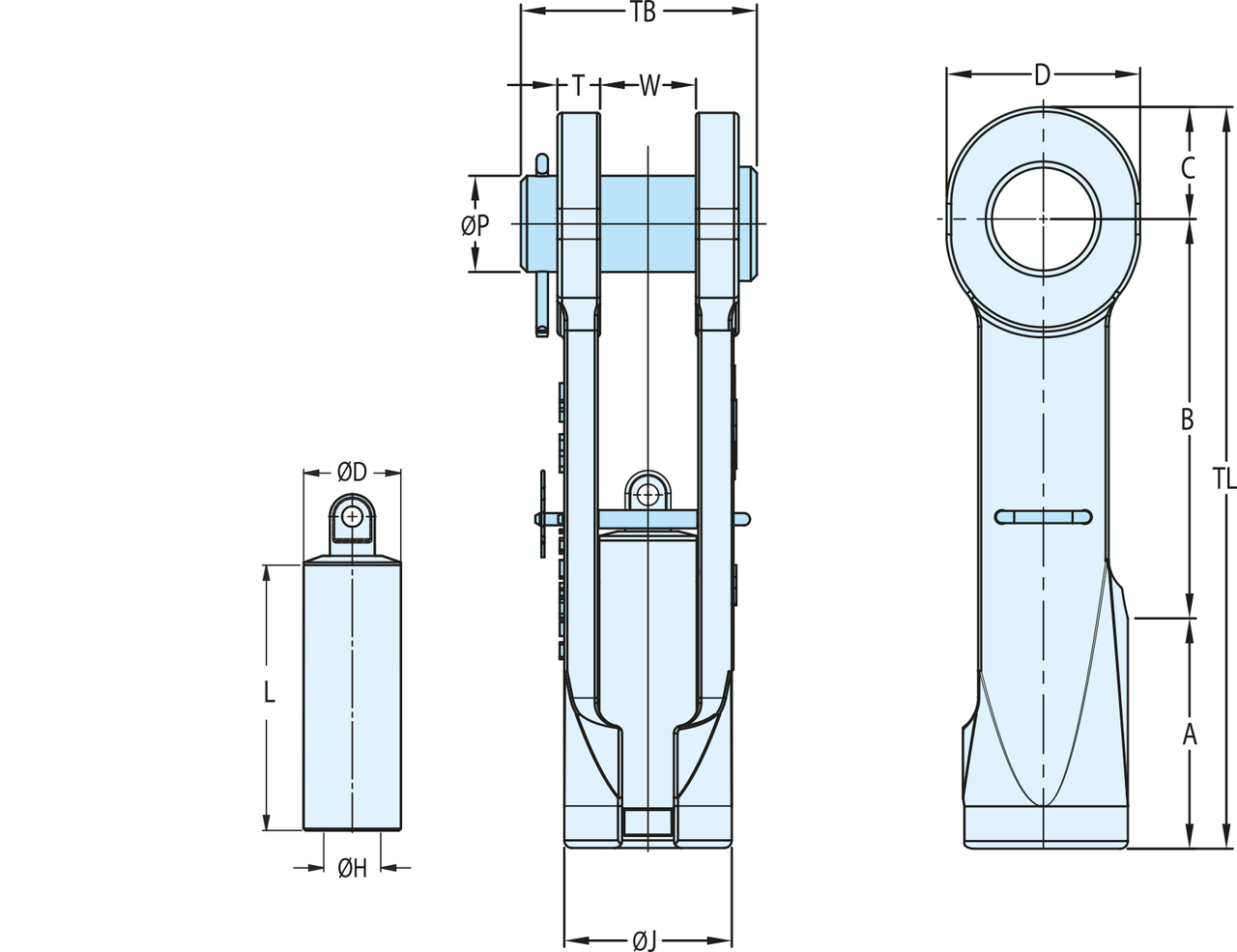

Drawing_super_reeve_socket
Art No
Code
MBL
Wire Ø
A
B
C
ØH
ØP
T
W
D
ØD
ØJ
L
TB
TL
Weight
Galvanized
tons
mm
mm
kg
10.10SCS902B.GAL
SCS 902 B
25
13-16
85
133
32
19
30
14
32
58
32
56
98
96
250
3,1
10.10SCS903B.GAL
SCS 903 B
40
16-19
90
160
40
22
35
16
38
70
40
65
114
107
290
4,8
10.10SCS904B.GAL
SCS 904 B
55
20-22
107
184
45
26
41
19
44
80
44
77
130
123
336
8
10.10SCS905B.GAL
SCS 905 B
75
23-26
115
211
60
31
50
22
51
104
52
88
142
138
386
12
10.10SCS906B.GAL
SCS 906 B
90
27-29
140
215
65
34
57
25
57
114
58
96
159
160
420
16
10.10SCS907B.GAL
SCS 907 B
125
30-32
150
260
73
36
63
28
63
126
64
110
177
165
483
23
10.10SCS908B.GAL
SCS 908 B
125
33-36
170
260
73
40
64
28
69
126
68
114
197
185
503
25
Art No
Code
MBL
Wire Ø
A
B
C
ØH
ØP
T
W
D
ØD
ØJ
L
TB
TL
Weight
Galvanized
tons
mm
mm
kg
10.10SCS902B.SR.GAL
SCS 902 B.SR
25
13-16
85
133
32
19
30
14
32
58
32
56
98
96
250
3,1
10.10SCS903B.SR.GAL
SCS 903 B.SR
40
16-19
90
160
40
22
35
16
38
70
40
65
114
107
290
4,8
10.10SCS904B.SR.GAL
SCS 904 B.SR
55
20-22
107
184
45
26
41
19
44
80
44
77
130
123
336
8
10.10SCS905B.SR.GAL
SCS 905 B.SR
75
23-26
115
211
60
31
50
22
51
104
52
88
142
138
386
12
10.10SCS906B.SR.GAL
SCS 906 B.SR
90
27-29
140
215
65
34
57
25
57
114
58
96
159
160
420
16
10.10SCS907B.SR.GAL
SCS 907 B.SR
125
30-32
150
260
73
36
63
28
63
126
64
110
177
165
483
23
10.10SCS908B.SR.GAL
SCS 908 B.SR
125
33-36
170
260
73
40
64
28
69
126
68
114
197
185
503
25
SCS 912 B.SR
280
49-54
225
373
108
60
95
45
101
194
105
185
280
263
706
93
