• Ordinary right hand lay
  • Bright
  • Not to be used with swivel

Also available in Warrington construction (6&6/6/1)
Excellent stretch characteristics


  • Features: High quality six strand lift rope
  • Material: High Carbon Steel
  • Marking: According to standard, On Termination ID and CE mark
  • Finish: Ungalvanised
  • Standard: EN 12385-5
  • Fill factor: 0.49
  • Elevator Steel wire rope for use in elevators

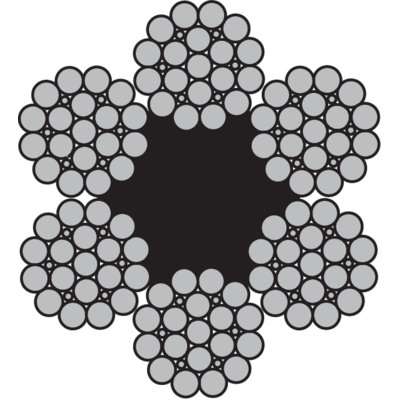

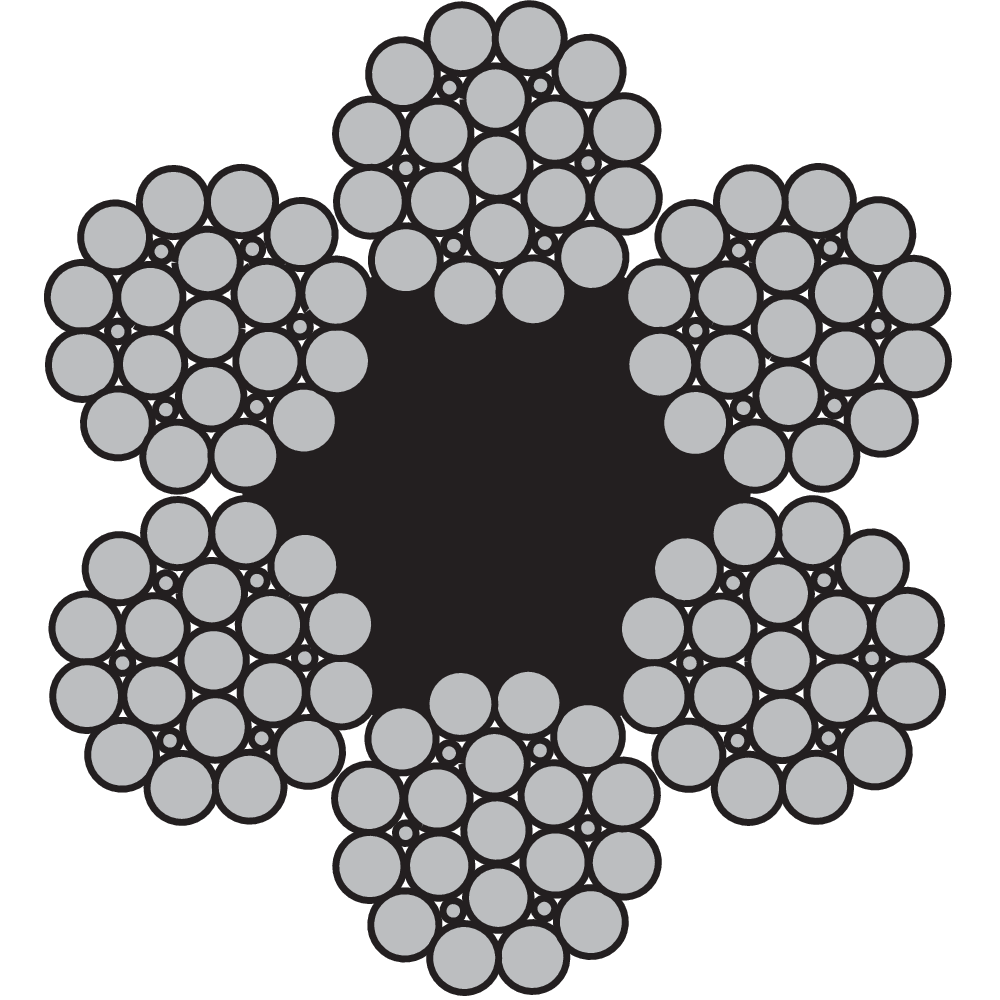

Trulift 6F[new]
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Steel Area
mm²
Min. breaking force
kN
1370/1770 N/mm²
Weight
kg/100m
-- 6 13,8 17,8 13
-- 6,5 16,2 20,9 15
-- 7 18,8 24,3 18
-- 8 24,6 31,7 23
-- 9 31,1 40,1 29
-- 10 38,4 49,5 36
-- 11 46,5 59,9 43
-- 12 55,3 71,3 52
-- 13 64,9 83,7 61
-- 14 75,3 97 70
-- 15 86,4 111 81
-- 16 98,3 127 92
-- 19 139 179 130
-- 22 186 240 174
Other dimensions on request.
