Bridon
  • Right hand langs lay
  • Left hand langs lay
  • Bright finish
  • Galvanized
  • Compacted strands
  • Rotation resistant
  • Can be used with swivel

Very Low Rotation.
Superior bending fatigue life when compared with conventional low rotation ropes.
Excellent resistance to crushing and abrasion particuarly on multi layer drums resulting from the compacted strands.
Reduced elongation results from increased steel content and the Dyform process.
Plastic impregnation to further extend fatigue life, improve structural stability and resistance to corrosion.

ISO 4309 Rope Category No: 10-40mm RCN.23-2, 42-76mm RCN.31

  • Features: Extremely strong low rotation Crane Hoist Rope.
  • Material: High Carbon Steel
  • Marking: According to standard, CE-marked, On Termination ID
  • Finish: Galvanised or Ungalvanised
  • Standard: EN 12385-4
  • Fill factor: 0.76

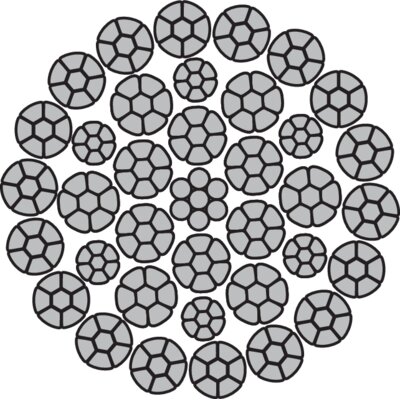

Dyform 34LR

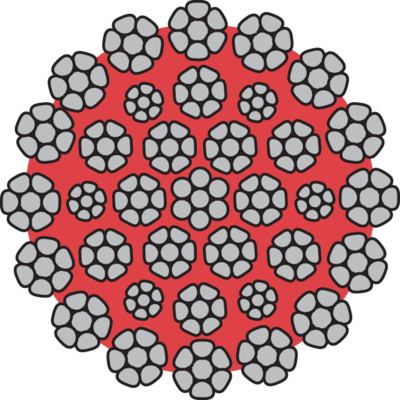

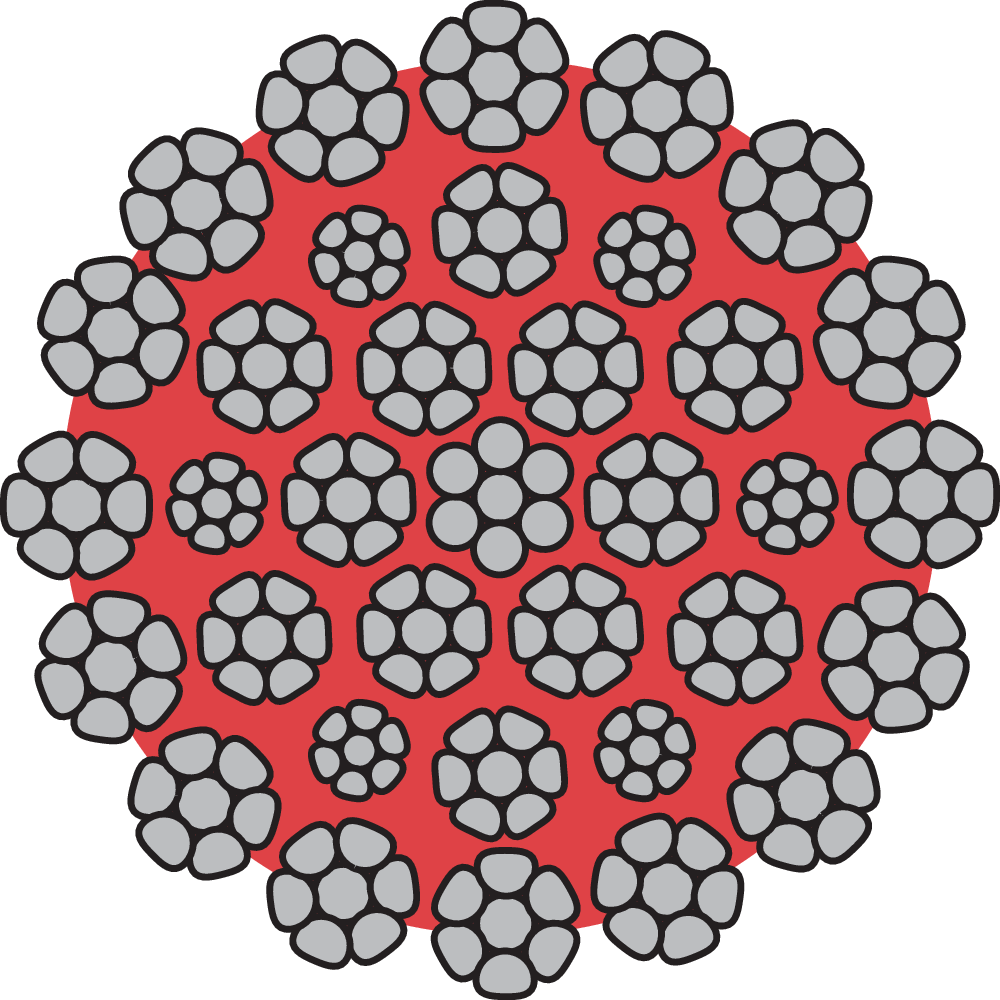

Dyform 34LR-PI
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Min. breaking force
kN
1960 N/mm²
Min. breaking force
kN
2160 N/mm²
Weight
kg/100m
-- 10 90,8 95,3 51,4
-- 11 109 115 61,7
-- 12 130 137 72,9
-- 13 153 161 84,6
-- 14 179 191 97,1
-- 15 204 214 114
-- 16 232 251 130
-- 17 262 275 140
-- 18 298 319 159
-- 19 331 356 178
-- 20 370 397 197
-- 21 400 420 222
-- 22 442 482 240
-- 23 480 504 261
-- 24 528 569 286
-- 25 568 595 312
-- 26 618 660 340
-- 27 662 694 356
-- 28 712 758 391
-- 29 764 801 425
-- 30 823 857 445
-- 32 919 1 008 505
-- 34 1 050 1 151 574
-- 35 1 110 1 214 602
-- 36 1 170 1 287 644
-- 38 1 310 1 444 712
-- 40 1 450 1 590 807
-- 42 1 600 1 758 884
-- 44 1 750 1 925 961
-- 46 1 920 1 060
-- 48 2 090 1 150
-- 50 2 270 1 230

Larger sizes available on request.
10mm - 40mm
34x7 WSC - Compact Strands
42mm - 68mm
34x19 WSC - Compact Strands
70mm - 76mm
34x31 WSC - Compact Strands
