verope
  • Ordinary right hand lay
  • Ordinary left hand lay
  • Galvanized
  • Bright
  • Compacted strands
  • Not to be used with swivel

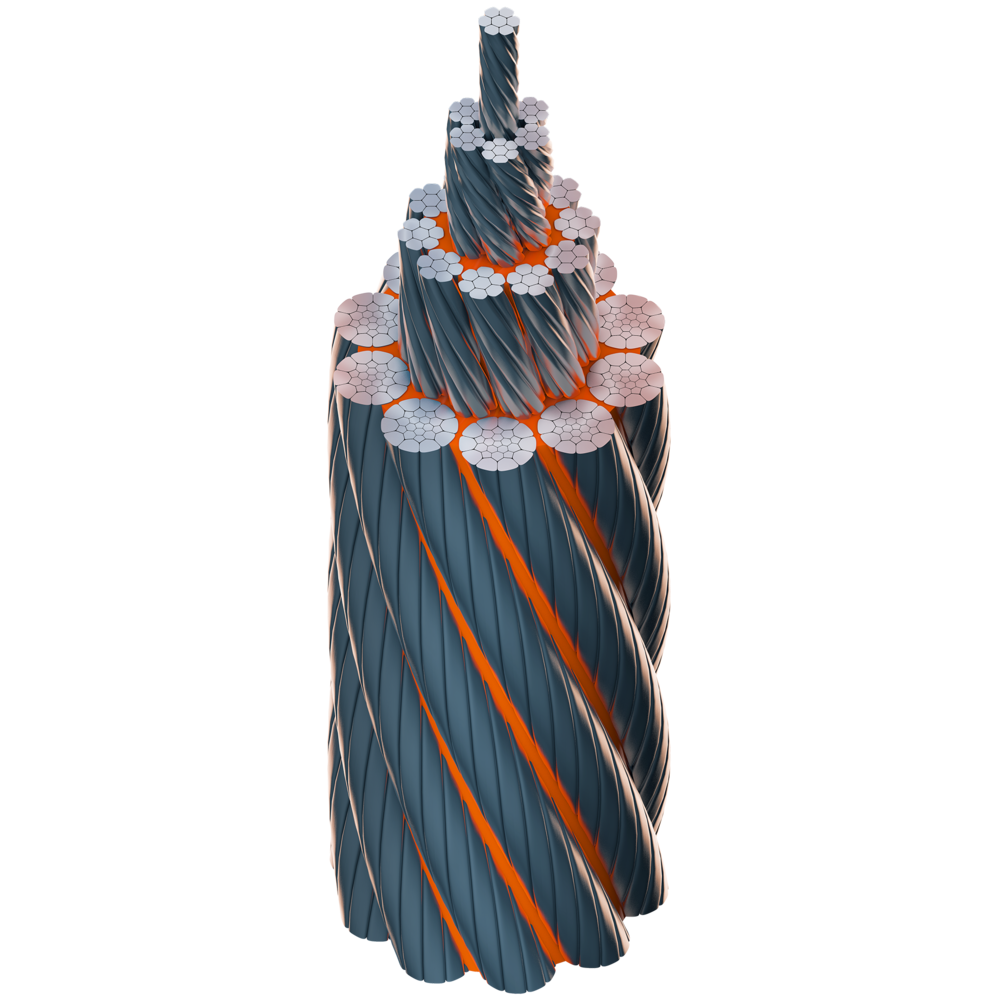

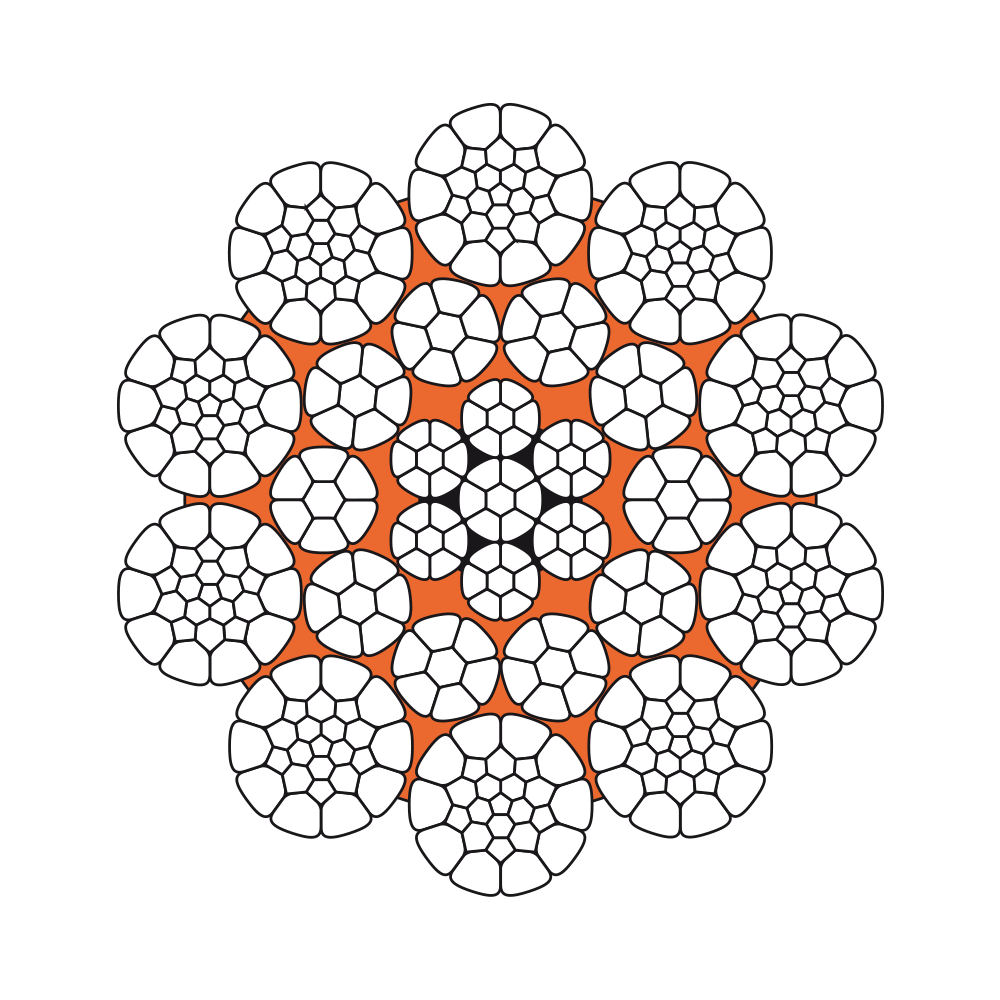

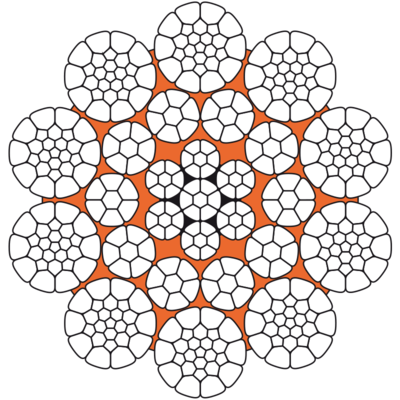

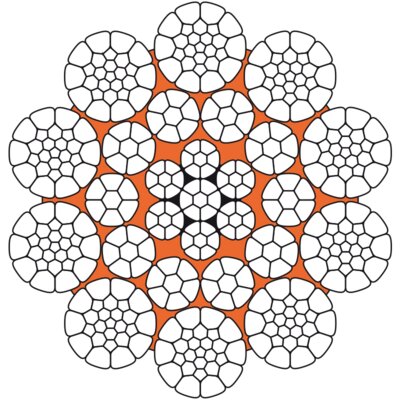

Wire rope construction: verotech 10 is a very flexible 10-strand, non-rotation-resistant rope in parallel lay construction with compacted strands and a rope core covered with a plastic layer.

Features:

  • Very high breaking strength.
  • Very stabile rope construction with very good fatigue properties.
  • A plastic layer between inner and outer strands prevents inner wear and protects the core from corrosion.
  • Very high resistance against flattening and wear.
  • Specially suitable for multilayer spooling.

ISO 4309 Rope Category No: All Diameters RCN.11.

  • Marking: According to standard
  • Standard: EN 12385-4
  • Note: verotech 10 may not be used with a swivel.
  • Fill factor: 0.732
  • Tolerance Ø: +2% to +4%
  • Overhead cranes For the use with overhead crane
  • Ladle crane Wire for ladle crane
verotech10
Verotech 10
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Steel Area
mm²
Min. breaking force
kN
1960 N/mm²
Min. breaking force
kN
2160 N/mm²
Weight
kg/100m
-- 6 21 34,9 38 18
-- 7 28 47,5 51,7 24
-- 8 37 62 67,6 32
-- 9 47 78,5 85,5 40
-- 10 57 96,9 105,6 49
-- 11 70 117,3 127,7 60
-- 12 83 139,5 152 71
-- 13 97 163,8 178,4 84
-- 14 113 189,9 206,9 97
-- 15 129 218 237,5 111
-- 16 147 248,1 270,2 127
-- 17 166 280,1 305,1 143
-- 18 186 314 342 160
-- 19 208 349,8 381 179
-- 20 230 387,6 422,2 198
-- 21 254 427,4 465,5 218
-- 22 278 469 510,9 239
-- 23 304 512,6 558,4 262
-- 24 331 558,2 608 285
-- 25 359 605,7 659,7 309
-- 26 389 655,1 713,5 334
-- 27 419 706,5 769,5 360
-- 28 451 759,8 827,5 388
-- 29 484 815 887,7 416
-- 30 517 872,2 950 445
-- 31 552 931,3 1 014 475
-- 32 589 992,3 1 081 506
-- 33 626 1 055 1 149 538
-- 34 665 1 120 1 220 572
