verope
  • Right hand langs lay
  • Ordinary left hand lay
  • Ordinary right hand lay
  • Left hand langs lay
  • Galvanized
  • Bright
  • Compacted strands
  • Not to be used with swivel

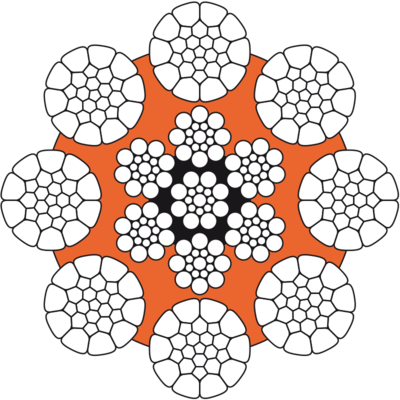

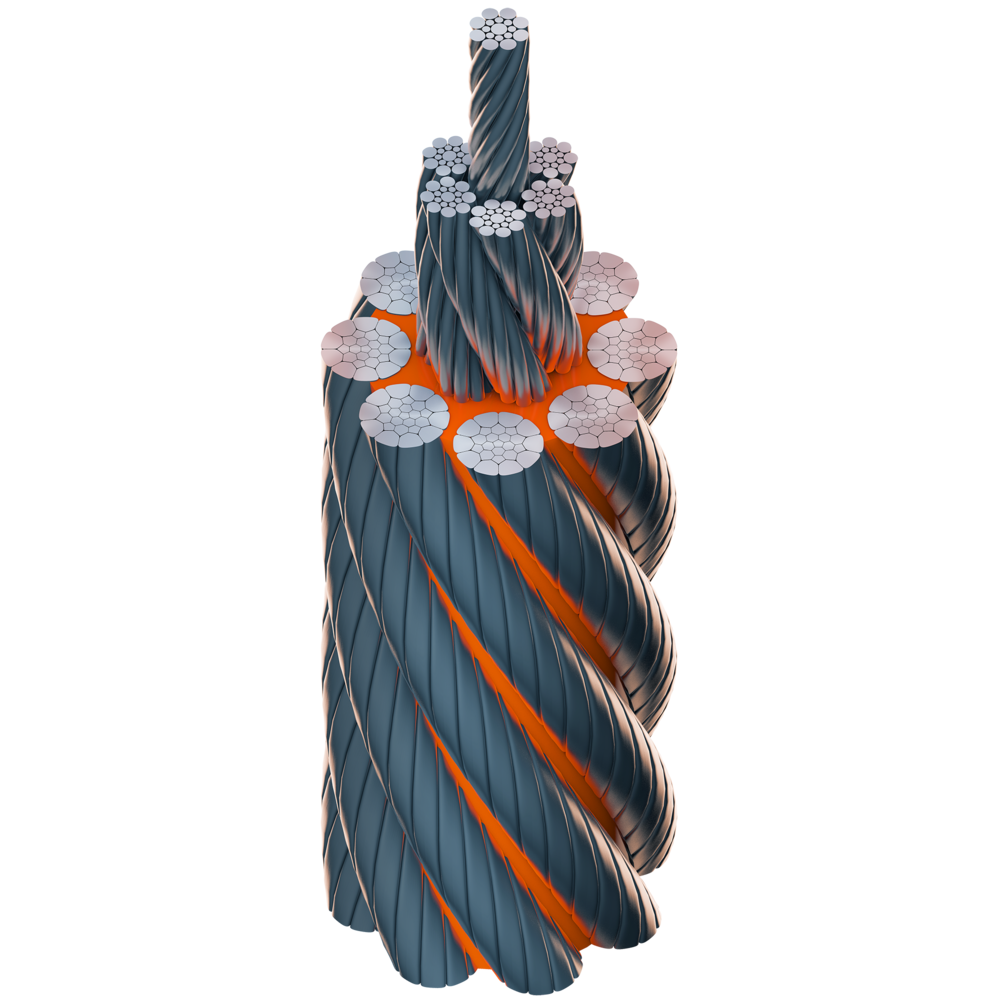

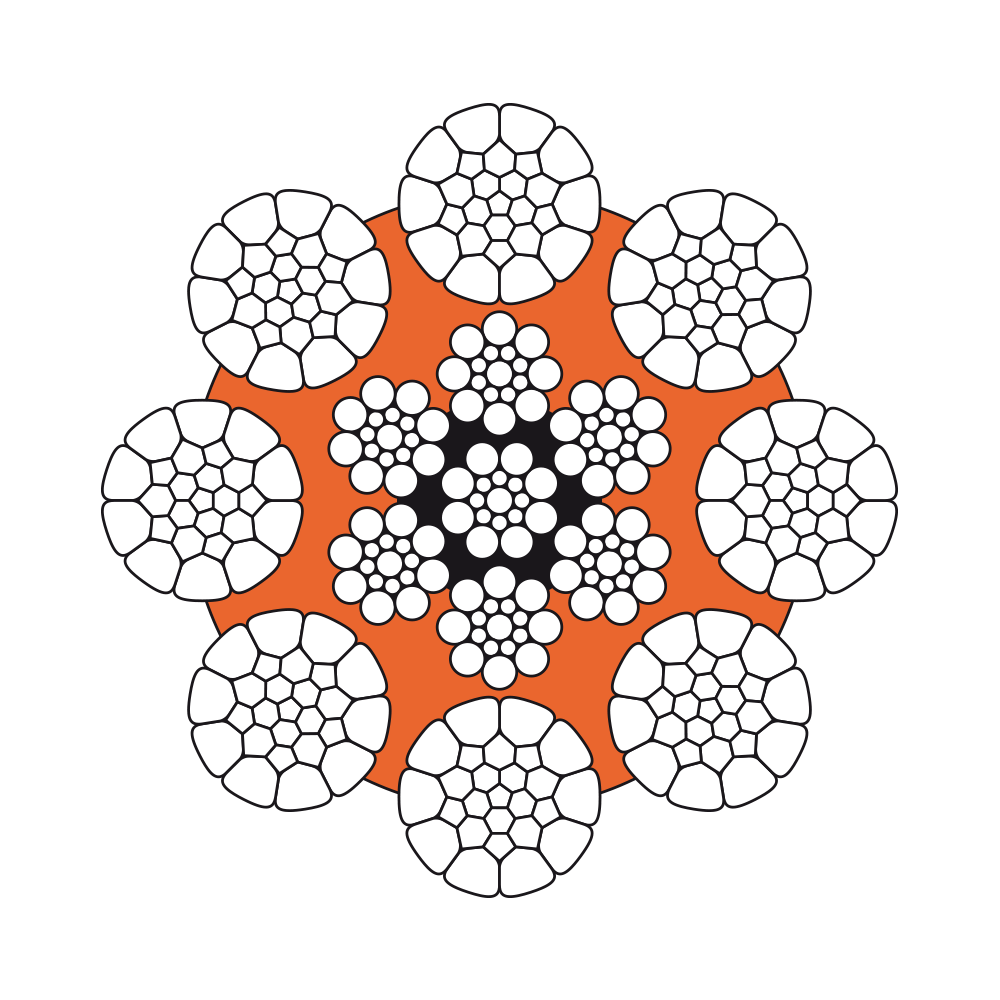

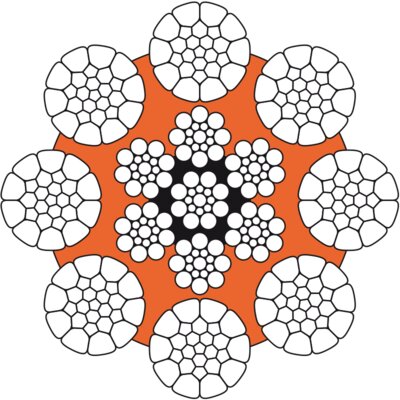

Wire rope construction: veropro 8 is a 8-strand, non rotation-resistant rope with compacted outer strands and a rope core covered with a plastic layer.

Features:

  • Very high breaking strength.
  • Very stabile rope construction with very good fatigue properties.
  • A plastic layer between inner and outer strands prevents inner wear and protects the core from corrosion.
  • Very high resistance against flattening and wear.
  • Specially suitable for multilayer spooling.

ISO 4309
Rope Category No:
Up to 42mm RCN.09, 43-48mm RCN.11, > 48mm RCN.13

  • Marking: According to standard
  • Standard: EN 12385-4
  • Warning: veropro 8 may not be used with a swivel.
  • Fill factor: 0.666
  • Tolerance Ø: 2% - 4%
  • Overhead cranes For the use with overhead crane
  • Mobile port crane Information icon
  • Offshore crane Information icon
  • Loading crane Information icon
  • Crawler crane Information icon
  • Container crane For use with container crane
  • Piling crane Information icon
  • Tower crane Information icon
  • Deck crane Information icon
  • Straddle carrier Information icon
Veropro 8_225mm
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Steel Area
mm²
Min. breaking force
kN
1770 N/mm²
Min. breaking force
kN
1960 N/mm²
Min. breaking force
kN
2160 N/mm²
Weight
kg/100m
-- 8 33 52.1 57.7 60.6 28.8
-- 9 42 66 73 76.7 36.4
-- 10 52 81.5 90.1 94.7 45
-- 11 63 98.6 109.1 114.6 54.4
-- 12 75 117.3 129.8 136.3 64.8
-- 12.7 85 131.4 145.4 152.7 72.6
-- 13 88 137.7 152.3 160 76
-- 14 103 159.7 176.7 185.6 88.2
-- 15 118 183.3 202.8 213 101.2
-- 16 134 208.6 230.7 242.4 115.2
-- 17 151 235.5 260.5 273.6 130
-- 18 169 264 292 306.8 146.7
-- 19 189 294.2 325.4 341.8 162.4
-- 20 209 325.9 360.5 378.7 179.9
-- 21 231 359.3 397.5 417.5 198.4
-- 22 253 394.4 436.2 458.3 217.7
-- 22.4 264 408.9 452.2 475.1 225.7
-- 23 277 431 476.8 500.9 238
-- 24 301 469.3 519.1 545.4 259.1
-- 25 327 509.3 563.3 591.8 281.2
-- 25.4 339 525.7 581.5 610.8 290.2
-- 26 354 550.8 609.3 640 304.1
-- 27 381 594 657 690.2 327.9
-- 28 410 638.8 706.6 742.3 352.7
-- 28.6 430 666.5 737.2 774.5 368
-- 29 440 685.3 758 796.3 378.3
-- 30 471 733.4 811.1 852.1 404.9
-- 31 503 783.1 866.1 909.9 432.3
-- 32 536 834.4 922.9 969.5 460.6
-- 33 570 887.4 981.5 1,031 489.9
-- 34 605 941.9 1,042 1,095 520
-- 35 641 998.2 1,104 1,160 551.1
-- 36 678 1,056 1,168 1,227 583
-- 38 755 1,177 1,301 1,367 649.6
-- 40 837 1,304 1,442 1,515 719.8
-- 41.3 897 1,390 1,537 1,615 767.3
-- 42 923 1,437 1,590 1,670 793.5
-- 44 1,013 1,578 1,745 1,833 870.9
-- 45 1,059 1,650 1,825 1,917 910.9
-- 46 1,107 1,724 1,907 2,003 951.9
-- 47.5 1,187 1,838 2,034 2,136 1,015
-- 48 1,205 1,877 2,077 2,181 1,036.4
-- 50 1,308 2,037 2,253 2,367 1,124.6
-- 52 1,414 2,203 2,437 2,560 1,216.4
-- 54 1,525 2,376 2,628 2,761 1,311.7
-- 56 1,640 2,555 2,826 1,410.7
-- 58 1,760 2,741 3,032 1,513.3
-- 60 1,883 2,933 3,245 1,619.4
