• Ordinary right hand lay
  • Stainless
  • Not to be used with swivel

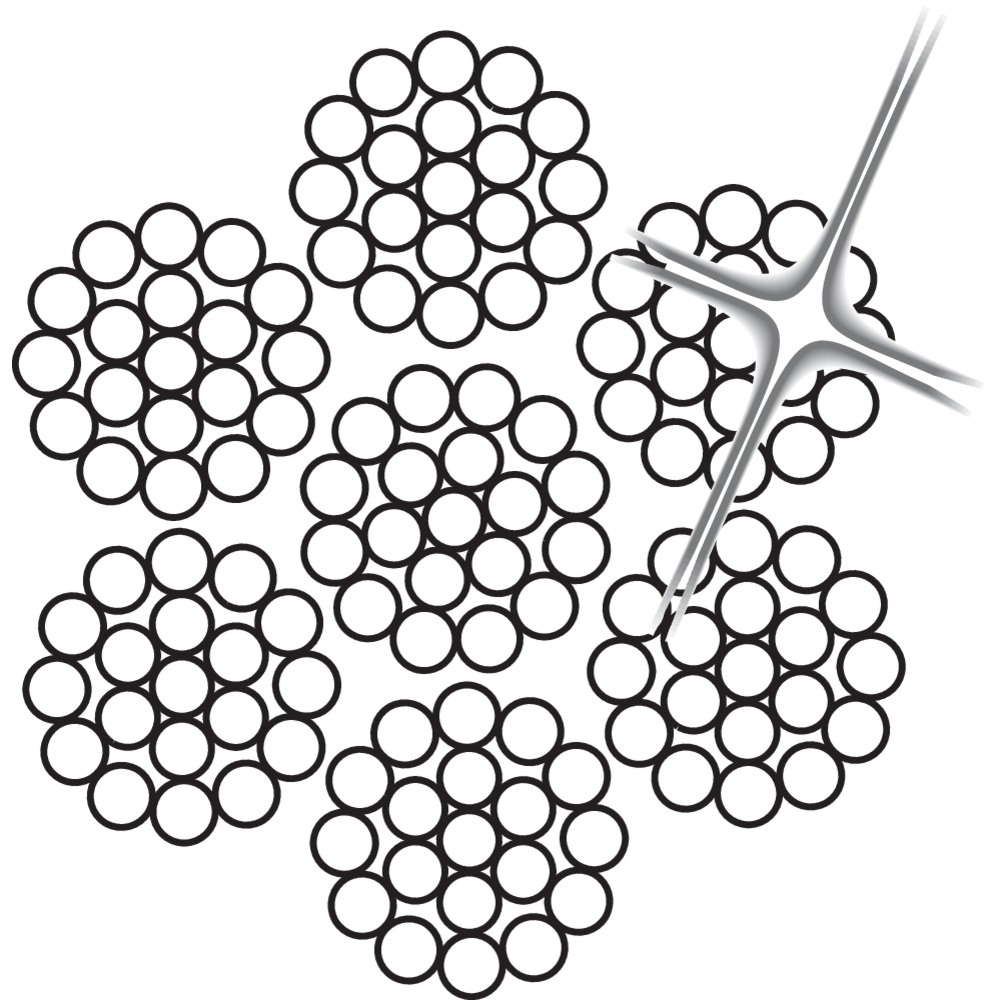

  • Rope construction: 6x19M-WSC
  • Material: AISI 316
  • Marking: According to standard
  • Temperature range: -40°C up to +200°C
  • Standard: EN 12385-4
    exept material
  • Fill factor: 0,53
  • RCN: 04
  • Winch rope Information icon
  • Stay rope Information icon
  • Overhead cranes For the use with overhead crane
  • Agriculture and livestock Information icon
  • Slings Information icon
6x19-WSC stainless[new] [Converted]_225mm
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Steel Area
mm²
Min. breaking force
kN
1570 N/mm²
Rope Catagoy Nr. (RCN) Weight
kg/100m
-- 2 1.67 2.27 4 1.52
-- 3 3.76 5.12 4 3.43
-- 4 6.69 9.09 4 6.1
-- 5 10.5 14.2 4 9.53
-- 6 15 20.5 4 13.7
-- 7 20.5 27.8 4 18.7
-- 8 26.8 36.4 4 24.4
-- 9 33.9 46 4 30.9
-- 10 41.8 56.8 4 38.1
-- 11 50.6 68.8 4 46.1
-- 12 60.2 81.8 4 54.9
-- 13 70.6 96 4 64.4
-- 14 81.9 111 4 74.7
-- 15 94.1 128 4 85.7
-- 16 107 145 4 97.5
-- 18 135 184 4 123
-- 20 167 227 4 152
