• Ordinary right hand lay
  • Galvanized
  • Not to be used with swivel


ISO 4309 Rope Category No: All Diameters RCN.02

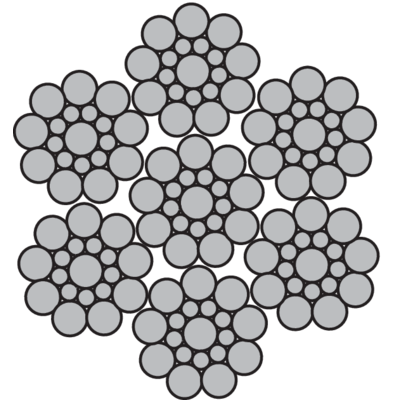

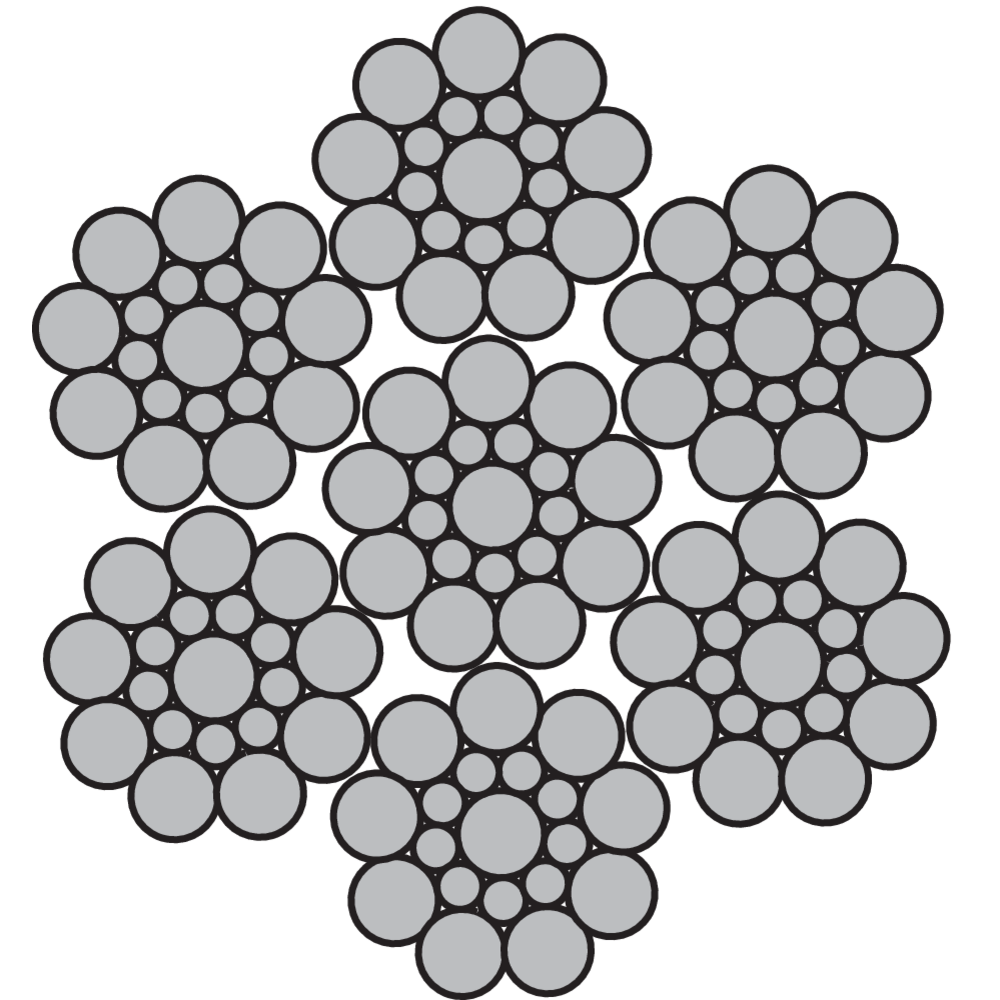

  • Rope construction: 6x19-WSC Seale.
  • Marking: According to standard
  • Standard: EN 12385-4
    • Slings Sling wire rope
    • Winch rope Wire for winches
    • Stay rope Stay rope
    • Overhead cranes For the use with overhead crane
    6x19-WSC Seale_225mm
    Select a row from the table below, then click the add to quote button
    Part Code Rope diameter
    mm
    Steel Area
    mm²
    Min. breaking force
    kN
    1770 N/mm²
    Min. breaking force
    kN
    1960 N/mm²
    Weight
    kg/100m
    -- 6 16,2 22,7 25,1 14,4
    -- 7 22 30,9 34,2 19,6
    -- 8 28,7 40,3 44,7 25,6
    -- 9 36,4 51 56,5 32,4
    -- 10 44,9 63 69,8 40
    -- 11 54,3 76,2 84,4 48,4
    -- 12 64,7 90,7 101 57,6
    Other dimensions on request. Filling factor 0,57
