• Ordinary right hand lay
  • Stainless
  • Not to be used with swivel

Typical applications: Cranes, hoist blocks, lifts, wire rope slings.

  • Material: AISI 316.
  • Marking: According to standard
  • Standard: EN 12385-4
  • Fill factor: 0.45
  • Slings Sling wire rope
  • Overhead cranes For the use with overhead crane

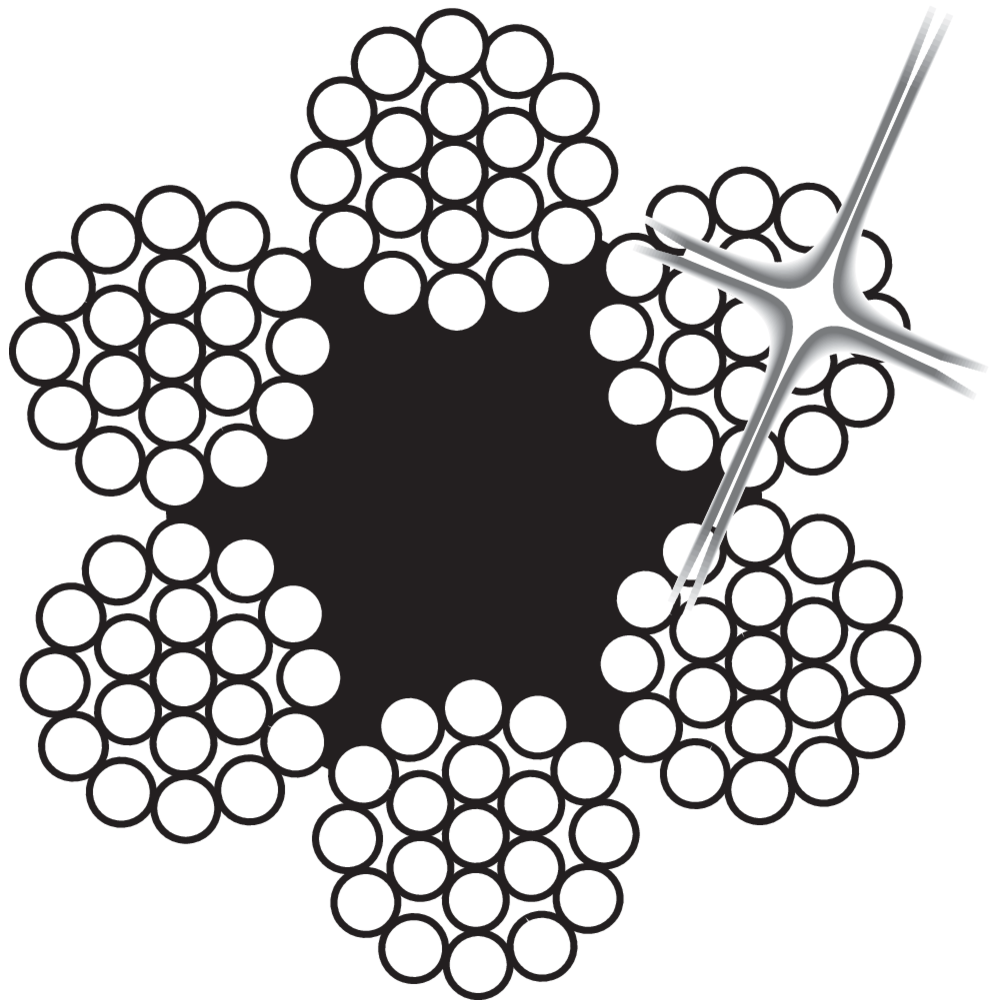

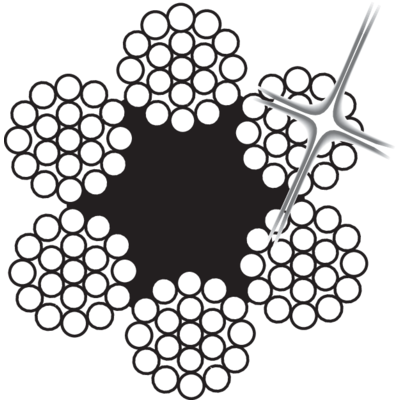

Stainless steel AISI 316 6x19M-FC wire rope core structure
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Steel Area
mm²
Min. breaking force
kN
1570 N/mm²
Weight
kg/100m
-- 3 3,21 4,34 3,1
-- 4 5,71 7,71 5,5
-- 5 8,93 12 8,7
-- 6 12,9 17,4 13
-- 7 17,5 23,6 17
-- 8 22,8 30,8 22
-- 9 28,9 39 28
-- 10 35,7 48,2 35
-- 12 51,4 69,4 50
