• Not for lifting
  • Left spiral strand
  • Right spiral strand
  • Stainless
  • Not to be used with swivel

Typical applications: Wire rope for rigging, stays and controls.
Design: Right- or left-handed.

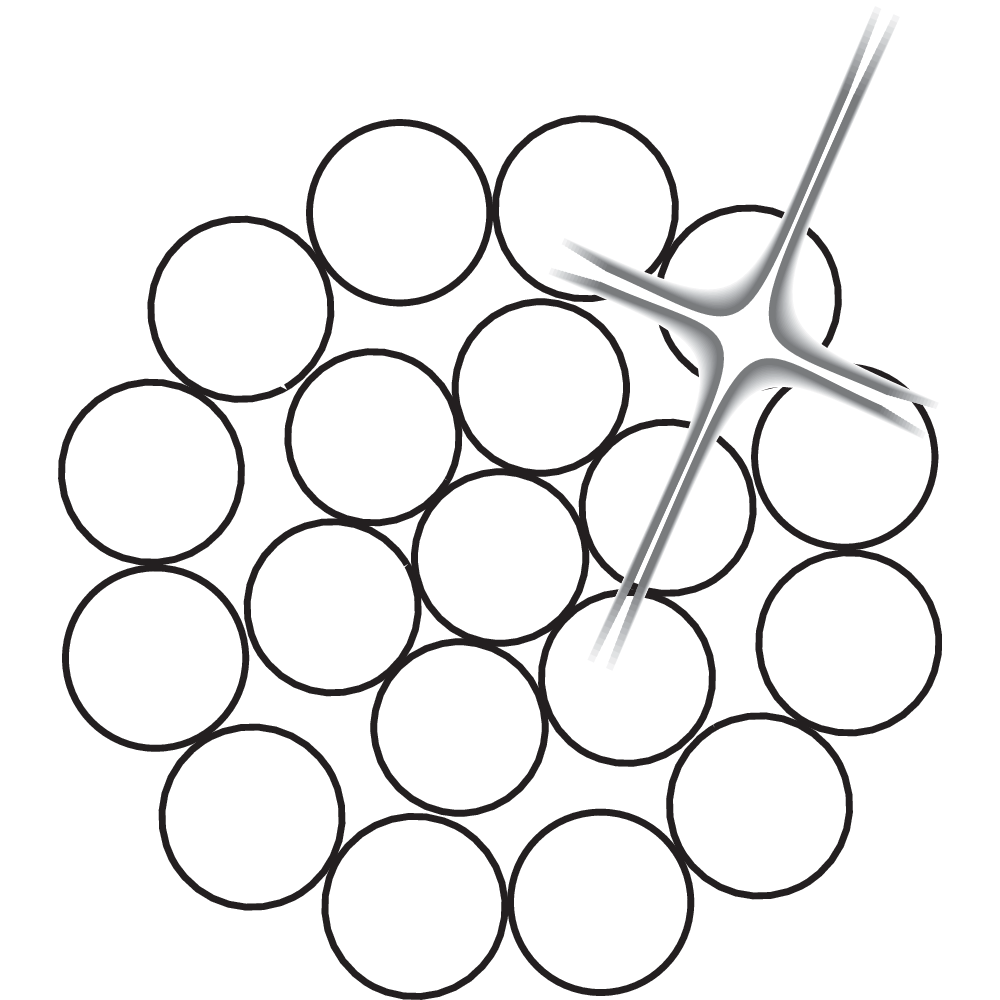

  • Rope construction: 1x19
  • Material: AISI 316
  • Marking: According to standard
  • Standard: EN 12385-10
    except material
  • Fill factor: 0.76
  • Stay rope Stay rope
1x19 stainless[new] [Converted]_225mm
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Min. breaking force
kN
1570 N/mm²
Weight
kg/100m
-- 1 0,82 0,5
-- 2 3,3 2
-- 3 7,42 4,5
-- 4 13,2 7,9
-- 5 20,6 12,4
-- 6 29,7 17,8
-- 7 40,4 24,3
-- 8 52,8 31,7
-- 10 82,5 49,5
-- 12 119 71,3

Other sizes upon request
