Ropetex
  • Right hand langs lay
  • Galvanized
  • Can be used with swivel


Excellent Resistance to Rotation giving over three times more lifting height than a conventional 18 x 7 class rope

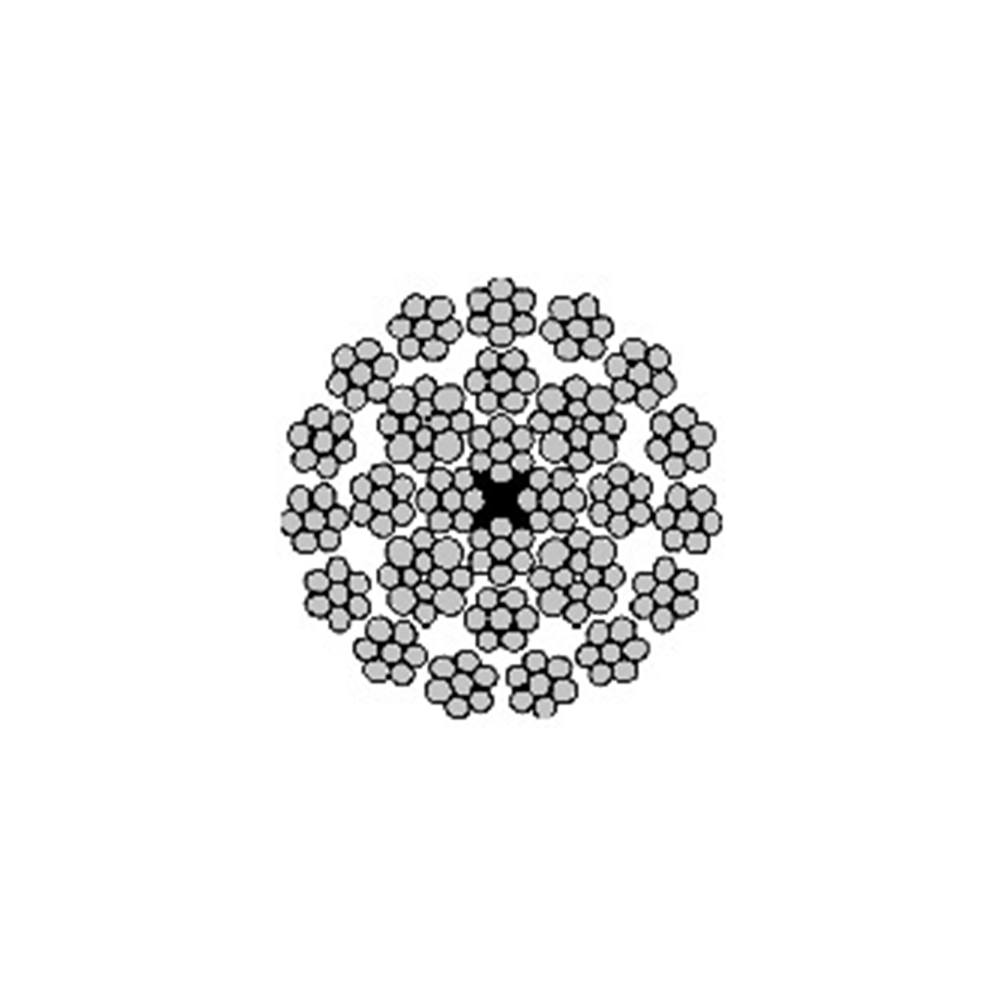

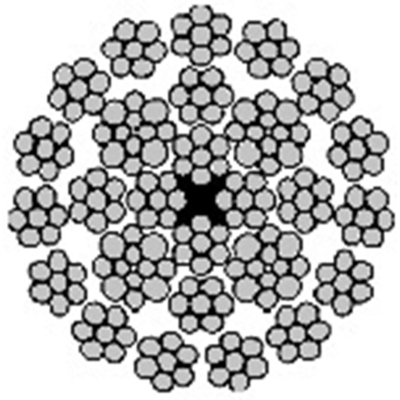

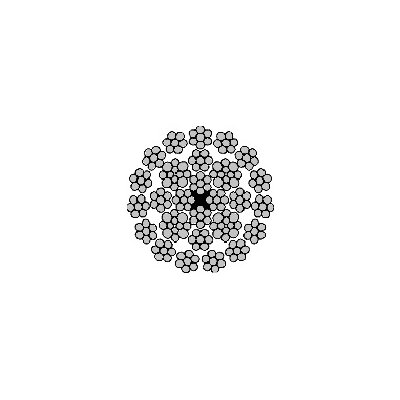

Flexibility is optimised by the unique strand and rope construction.
Langs Lay construction combines excellent wear characteristics with efficient spooling on the drum.
RopeTex Ropes are lubricated with the very latest High Performance Wire rope lubricants to give excellent corrosion protection, fatigue life combined with low fling off


ISO 4309 Rope Category No: All Diameters RCN.23-1

  • Features: Very High Breaking Load
  • Material: High Carbon Steel
  • Marking: According to standard, On Termination ID and CE mark
  • Finish: Galvanised as standard
  • Standard: EN 12385-4
  • Fill factor: 0.64
RopeTex55
Select a row from the table below, then click the add to quote button
Part Code Diameter
mm
Minimum Breaking Force
ton
Approx mass
01D0200 8 5.15 27.6
01D0210 9 6.52 34.4
01D0220 10 8.05 43
01D0230 11 9.75 52
01D0230 12 11.62 62
01D0250 13 13.66 72
01D0260 14 15.8 84
01D0270 15 18.14 96
01D0280 16 20.6 110
-- 17 23.2 120
01D0290 18 26.1 135
01D0300 19 29.1 150
01D0310 20 32.2 166
01D0320 22 38.94 201
01D0330 24 46.38 245
01D0340 26 53.72 297
01D0350 28 62.38 345
