Bridon
  • Right hand langs lay
  • Left hand langs lay
  • Galvanized
  • Rotation resistant
  • Can be used with swivel

Excellent Resistance to Rotation giving over three times more lifting height than a conventional 18 x 7 class rope
Flexibility is optimised by the unique strand and rope construction.
Langs Lay construction combines excellent wear characteristics with efficient spooling on the drum.


Standard: EN 12385-4
ISO 4309 Rope Category No: All Diameters RCN.23-1

  • Features: Very High Breaking Load
  • Material: High Carbon Steel
  • Marking: On Termination ID and CE mark
  • Finish: Galvanised as standard
  • Fill factor: 0.64

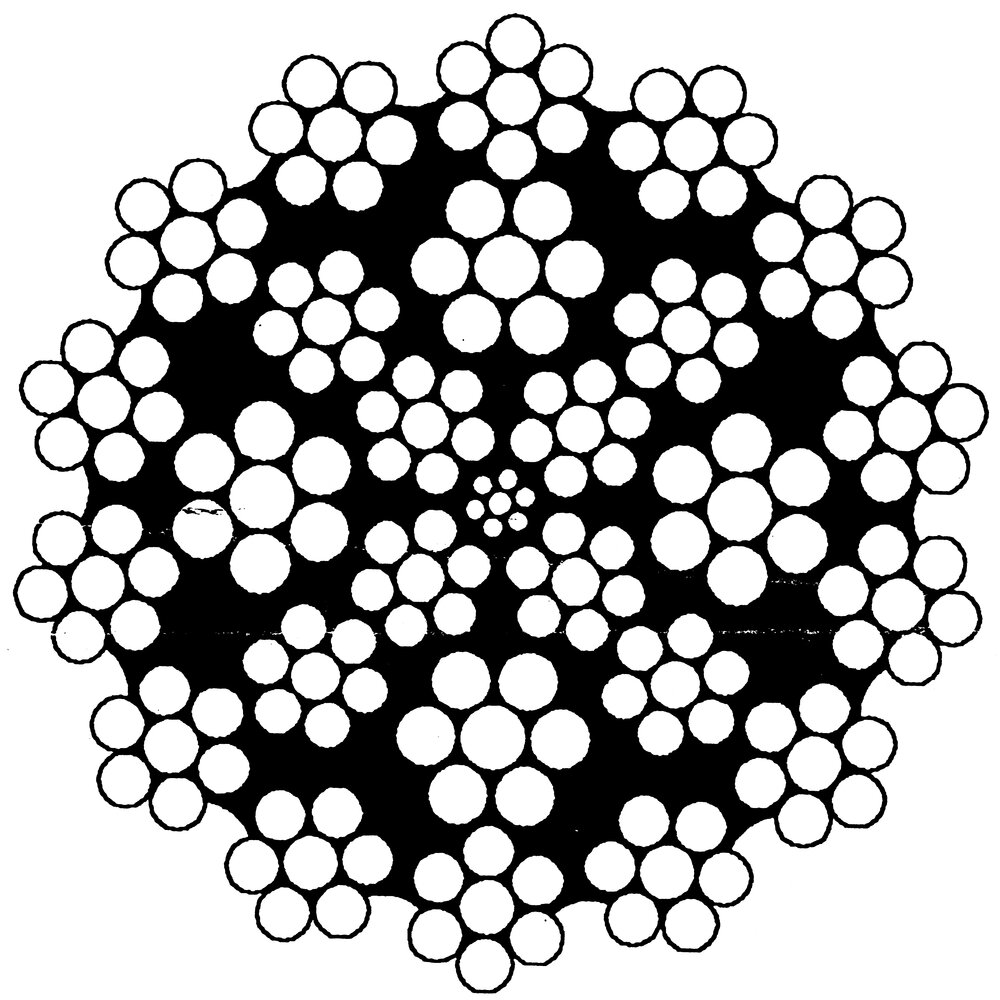

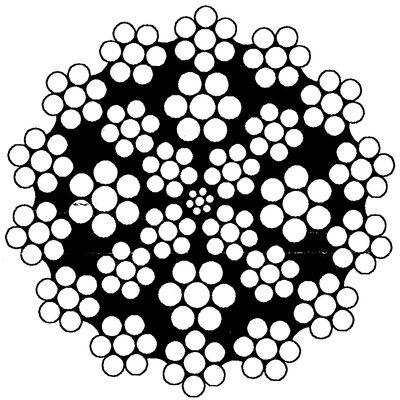

DB SCAN
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Min. breaking force
kN
1960 N/mm²
Minimum breaking force Rope grade 1960
ton
Weight
kg/100m
-- 8 49,6 5,06 27,6
-- 9 62,8 6,41 34,4
-- 10 77,6 7,91 42,5
-- 11 93,9 9,6 51,8
-- 12 112 11,4 61,9
-- 13 131 13,4 72,8
-- 14 152 15,5 83,6
-- 15 175 17,8 96
-- 16 199 20,2 110
-- 17 224 22,9 121
-- 18 251 25,6 136
-- 19 280 28,5 156
-- 20 310 31,6 168
-- 21 342 34,9 185
-- 22 375 38,3 206
