Crosby

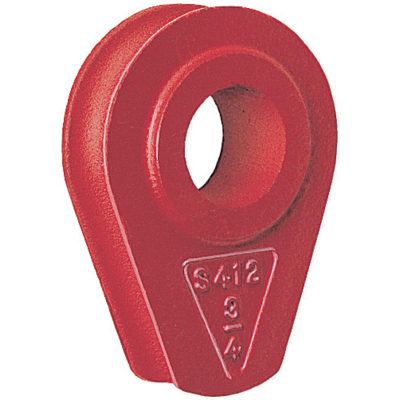

Fits pin for open wire rope socket, boom pendant clevis and wedge socket.

  • Features: Greater protection against wear and deformation of the wire rope eye giving longer service life.
  • Material: Cast Ductile Iron.
  • Marking: According to standard, Manufacturer's symbol.
  • Standard: EN 13411-1
    6003_e_225mm_2

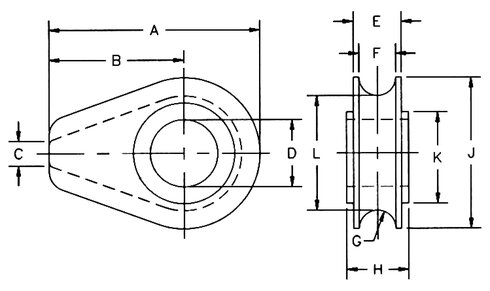

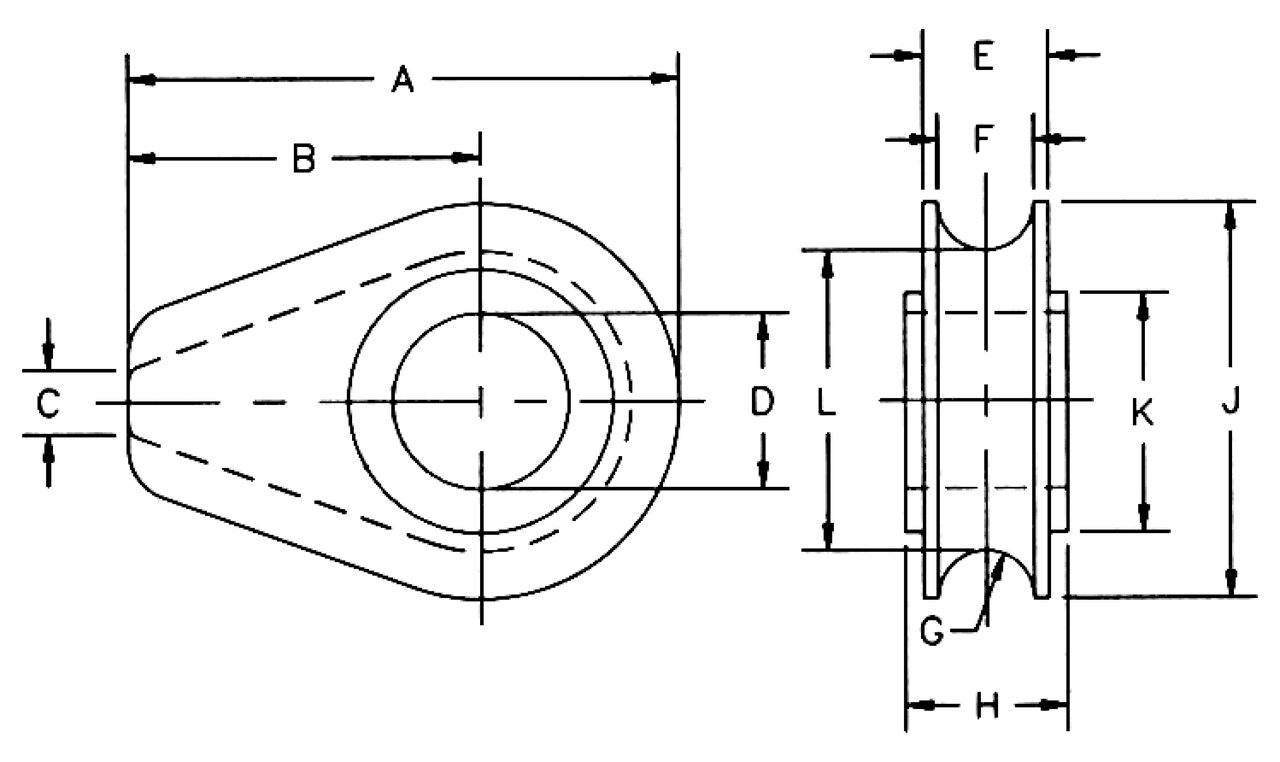

    Crosby S-412 Solid Thimble_sketch
    Select a row from the table below, then click the add to quote button
    Part Code Rope diameter
    mm
    A
    mm
    B
    mm
    C
    mm
    D
    mm
    D tolerance E
    mm
    F
    mm
    G
    mm
    H
    mm
    J
    mm
    K
    mm
    L
    mm
    Weight
    kg
    CAD
    -- 16 119 76 9,65 33,3 +-4% 26,9 20,6 10,4 28,7 86 57 65 1
    -- 18-20 119 76 9,65 38,1 +-3% 26,9 20,6 10,4 35,1 86 57 65 1,05
    -- 22 154 97 12,7 44,5 +-3% 35,1 26,9 13,5 41,4 114 82,5 87,5 2,47
    -- 24-26 154 97 12,7 54 +-3% 35,1 26,9 13,5 46 114 82,5 87,5 2,38
    -- 28-30 184 116 16 60,5 +-2% 44,5 33,3 16,8 52,5 137 98,5 103 4,21
