Green Pin


Standard: generally to EN 13411-6

  • Material: high tensile steel
  • Temperature range: -20°C up to +200°C
  • Finish: hot dipped galvanized

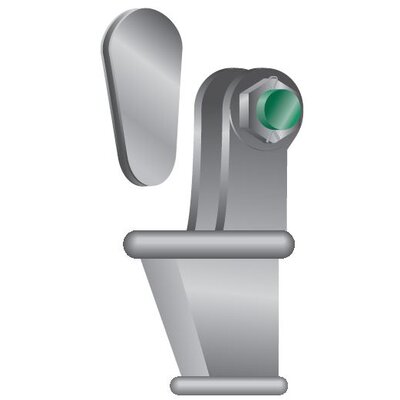

    Product Image 1
    Product Image 2
    Select a row from the table below, then click the add to quote button
    Part Code Rope diameter
    mm

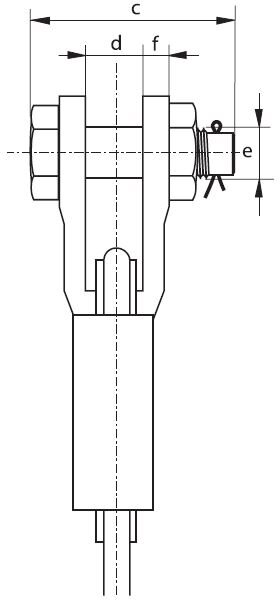

    Finish Number width c
    mm
    diameter eye g
    mm
    diameter pin e
    mm
    MBL
    ton

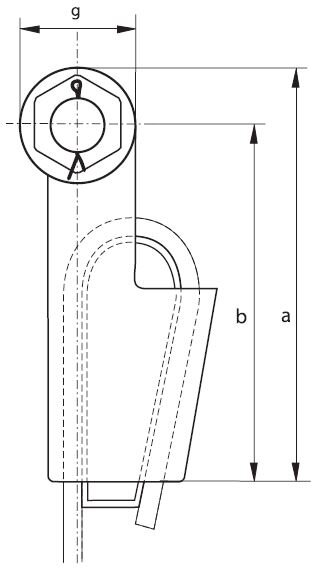

    length to center pin b
    mm
    thickness side plates f
    mm
    length a width inside d Weight
    kg
    CAD
    -- 7-8 Galvanized 0,25 69 36 16 8 110 9 128 18 0,8 -
    -- 9-10 Galvanized 0,5 83 46 20 12 142 11 165 20,5 1,5 -
    -- 11-13 Galvanized 1 101 57 25 20 146 12 175 25 2,4 -
    -- 14-16 Galvanized 2 124 70 30 25 176 15 211 31 4,8 -
    -- 18-19 Galvanized 3 138 80 35 40 212 16 252 38 8,3 -
    -- 20-22 Galvanized 4 148 95 41 55 240 19 288 44 11 -
    -- 24-26 Galvanized 5 176 110 50 75 274 22 329 51 17,9 -
    -- 27-29 Galvanized 6 193 130 57 90 310 25 375 57 21 -
    -- 30-32 Galvanized 7 210 146 63 110 350 28 423 63 33 -
    -- 34-36 Galvanized 8 216 148 65 125 400 28 474 69 42 -
    -- 37-39 Galvanized 9 230 153 70 150 450 30 527 76 52 -
    -- 40-42 Galvanized 10 244 160 77 170 500 33 580 76 73 -
