General: sockets incorporate a reduced machined area of the shank which is the equivalent to the proper after swage dimension. Before swaging, this provides for an obvious visual difference in the shank diameter. After swaging, a uniform shank diameter is created allowing for a QUIC CHECK™ permanent visual inspection opportunity. Designed to quickly determine whether the socket has been through the swaging operation and assist in field inspections, it does not eliminate the need to perform standard production inspections which include gauging for the proper after swage dimensions or proof loading.
Hardness controlled by spheroidise annealing.
Swage socket terminations have an efficiency rating of 100% based on the catalogue strength of wire rope.

  • Material: Carbon Steel.
  • Marking: ID code and Manufacturer's symbol.
  • Finish: Ungalvanised.
  • Safety factor: 5:1

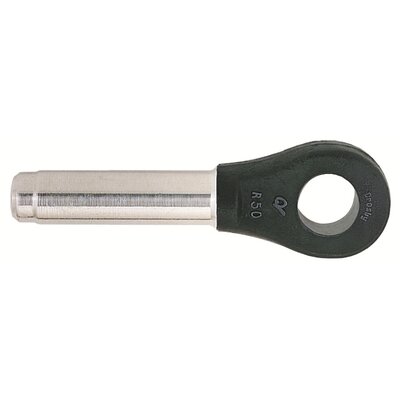

Crosby S502
S502

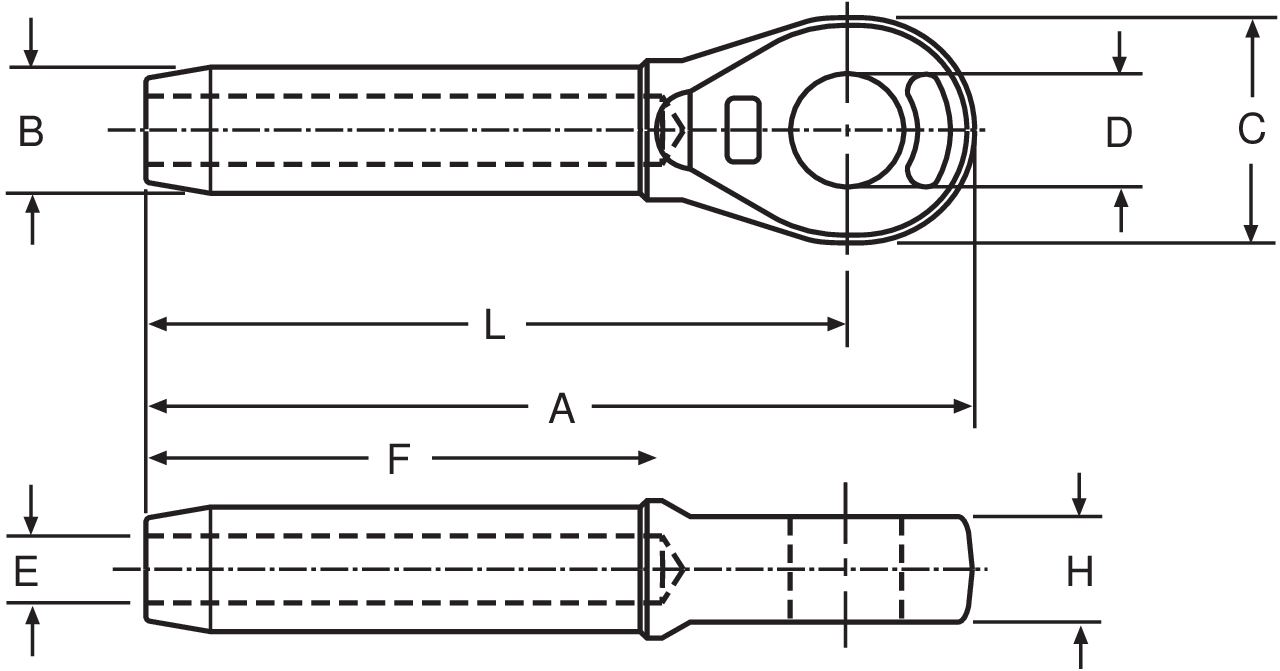

Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Diameter
mm
Max. after swage dia.
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
H
mm
L
mm
Weight
kg
-- 5.4 6 11,7 109 12,7 35,1 19,1 6,85 54 12,7 89,0 0.15
-- 11.8 8 18,0 138 19,6 41,1 22,4 8,65 81 17 114 0.34
04B0260 13.6 9-10 18,0 138 19,6 41,1 22,4 10,4 81 17 114 0.33
04B0270 18.1 11-12 23,1 176 24,9 51,0 26,9 12,2 108 21,8 146 0.64
04B0280 21.3 13 23,1 176 24,9 51,0 26,9 14,0 108 21,8 146 0.64
04B0295 31.8 14 29,5 220 31,8 60,5 31,8 15,5 135 28,7 184 1.32
04B0300 34.9 16 29,5 220 31,8 60,5 32,5 17 135 28,7 184 1.29
04B0306 43.5 18-20 36,1 261 39,4 73 36,6 20,3 162 33,3 219 2.27
-- 51.5 22 39,4 303 43,2 79 44 23,9 189 38,1 257 3.08
-- 71.4 24-26 45,7 344 50,5 92 52,5 26,9 216 44,5 292 4.72
-- 83.3 28 52,0 382 57,0 102 58,5 30.2 243 51 324 6.72
-- 109 32 58,5 430 64,5 114 65 33,8 270 57 365 9.78
-- 136 33-34 65,0 473 71 127 65 36,8 297 57 400 12.9
-- 181 38-40 71,5 511 78 140 71,5 40,1 325 63 432 17.3
-- 228 44 77,5 598 86 159 90,5 47,2 378 76 508 23.1
-- 272 48-52 90,5 702 100 184 96,5 53,5 432 82,5 584 40.5
