Crosby

Standard: Fed Spec RR-S-550D TYPE B.

  • Features: Spelter socket terminations have an efficiency rating of 100%, based on the catalogue strength of wire rope.
  • Material: Forged steel sockets through 11/2”, cast alloy steel 1-5/8” through 4”.
  • Marking: ID code and Manufacturer's symbol.
  • Finish: Galvanised.
  • Safety factor: 5:1.

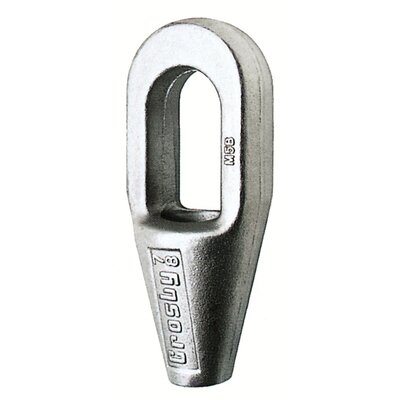

Crosby G-417 Closed Spelter Socket
Crosby G-417
Select a row from the table below, then click the add to quote button
Art No WLL
Ton

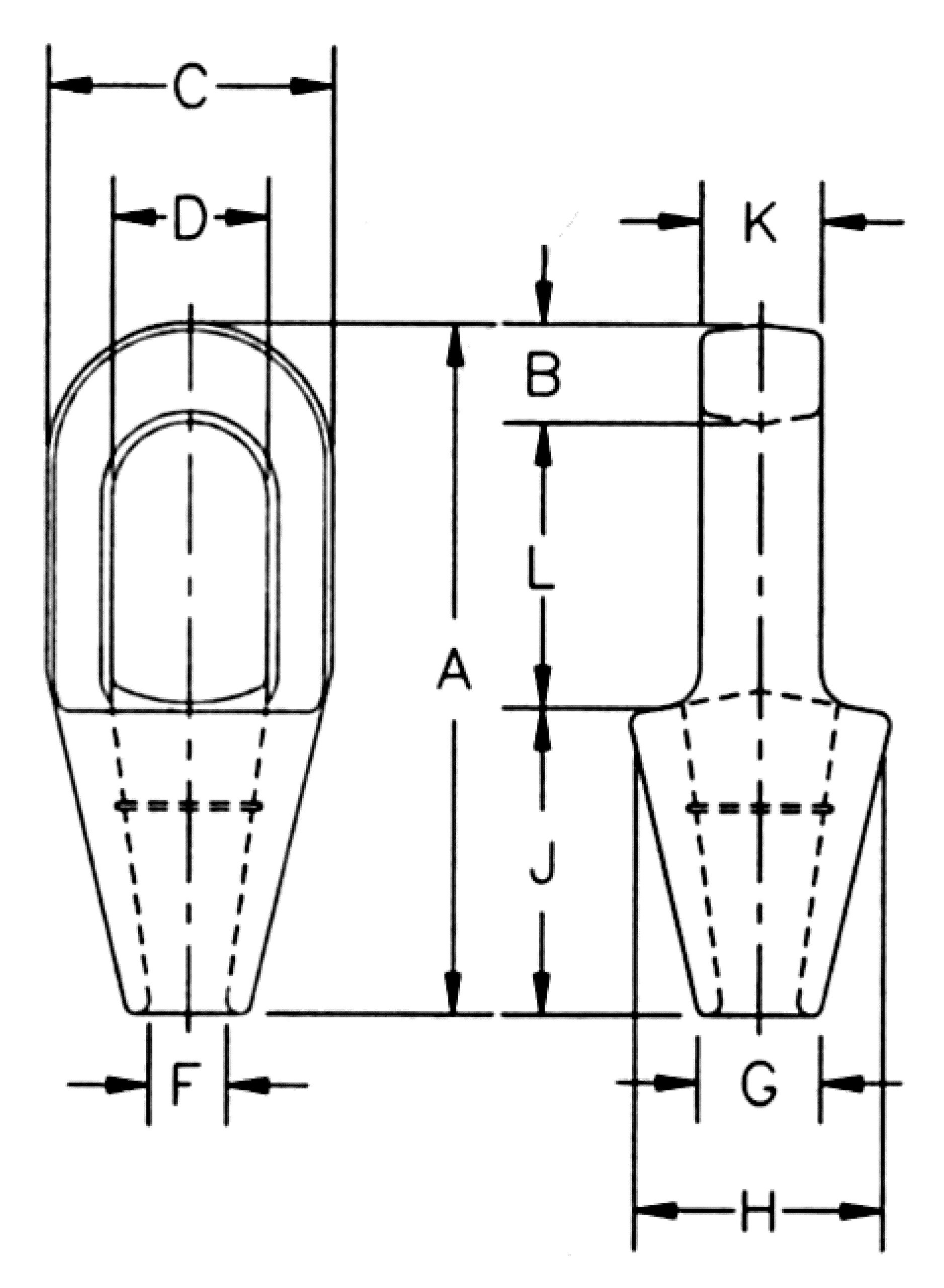

A (mm) B (mm) C (mm) D*(mm) F (mm) G (mm) H (mm) J (mm) K (mm) L (mm) Rope dia. (inch) Rope dia (mm) Weight
kg
CAD
10.101039897 4.5 116 12.7 39.6 22.4 9.65 17.5 39.6 57.2 12.7 46 1/4 6-7 0.23
04A0190 12 125 15.8 42.9 24.6 12.7 20.6 42.9 57.2 17.5 52.5 5/6 -3/8 8-10 0.34
04A0200 20 140 17.5 51 29.5 14.2 23.9 51 63.5 22.4 58.7 7/16-1/2 11-13 0.68
04A0210 30.8 162 20.6 67 35.8 17.5 30.2 67 76.2 25.4 65 9/16-5/8 14-16 1.13
04A0220 43.5 194 26.9 76.2 42.2 22.4 33.3 70 89 31.8 77.5 3/4 18 1.92
04A0230 65.3 226 33.3 92 49.3 25.4 38.1 82.5 102 38.1 90.5 7/8 20-22 3.28
04A0240 81.6 254 36.6 105 58.5 28.7 44.5 95.5 114 44.5 103 1 24-26 4.76
04A0250 100 283 39.6 114 65 31.8 51 105 127 51 116 1 1/8 26-30 6.46
04A0260 136 309 41.4 127 71 38.1 58.5 119 138 56.5 129 1 1/4-1 3/8 32-35 8.95
04A0270 170 355 49.3 137 81 41.4 70.5 132 151 62.5 155 1 1/2 38 13.2
10.101040091 188 390 54 146 82.5 44.5 76.2 140 165 70 171 1 5/8 40-42 16.3
10.101040117 268 445 55.5 171 95.5 51 79.5 162 191 76.2 198 † 1 3/4-1 7/8 44-48 26
10.101040135 309 505 62 194 111 57.2 95.5 187 216 82.5 224 † 2-2 3/8 50-54 35.8
10.101040153 360 546 70 216 127 66.8 105 210 229 92 254 † 2 1/4 - 2 3/8 56-60 47.6
10.101041759 424 597 79.5 241 140 74.5 114 235 248 102 270 † 2 1/2 - 2 7/8 64-67 64
10.101041777 549 645 79.5 273 159 79.5 124 259 279 124 286 † 2 3/4 - 2 7/8 70-73 100
10.101041795 656 689 85.6 292 171 86 133 292 305 133 298 † 3 - 3 1/8 75-80 125
10.101041811 750 743 102 311 184 92 146 311 330 146 311 † 3 1/4 - 3 3/8 82-86 142
10.101041839 820 787 102 330 197 98.5 165 330 356 159 330 † 3 1/2 - 3 5/8 88-92 181
10.101041857 1,005 845 108 362 216 108 184 362 381 178 356 † 3 3/4 - 4 94-102 246

* Diameter of pin must not exceed pin used on companion 416 socket.
† Cast alloy steel.
