Talurit

The turnback ferrule system is easy to use. It is quick, safe and has proved itself to be totally reliable. The ferrules are thoroughly specified and very well defined for many different wire rope applications.

The ferrules can be used for fibre core single layer wire ropes, steel core single layer wire ropes, rotation resistant wire ropes and spiral strand ropes.

  • Material: Aluminum
  • Marking: According to standard
  • Standard: EN 13411-3
    except size range
  • Note: See the manufacturer's product data sheet below for guidance on dimension selection.

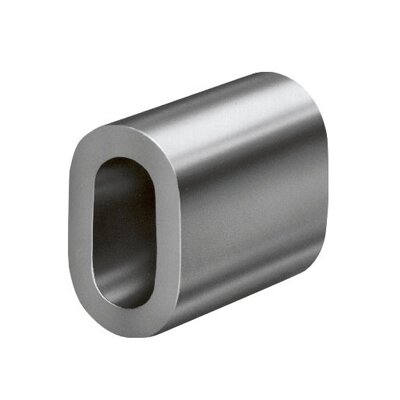

    Ferrule T Talurit™
    Select a row from the table below, then click the add to quote button
    Part Code Ferrule size
    mm
    Length
    mm
    -- 3 14
    -- 4 18
    -- 5 23
    -- 6 27
    -- 7 32
    -- 8 36
    -- 9 40
    -- 10 45
    -- 11 50
    -- 12 54
    -- 13 59
    -- 14 63
    -- 16 72
    -- 18 81
    -- 2,5 12
    -- 20 90
    -- 22 99
    -- 24 108
    -- 26 117
    -- 28 126
    -- 3,5 16
    -- 30 135
    -- 32 144
    -- 34 153
    -- 36 162
    10.01T38 38 171
    10.01T045 4,5 20
    10.01T40 40 180
    10.01T44 44 198
    10.01T48 48 216
    10.01T52 52 234
    10.01T56 56 252
    10.01T065 6,5 29
    10.01T60 60 270
    Diameter after pressing, see instruction.
    Length is after pressing.
