General: Rotates through 360° adjustable in the direction of the load.
Load rated parts are 100% magnaflux crack detected.
Individual forged parts and cap screw are traceable to Test Certification.
Passed 22.2 KN/person Load testing.
Passed 150 kg dynamic fall testing ( EU standard is 100 kg).
Meets all requirements of the German BG BAU ( Employer ́s insurance association of the building industry).
Correspond to the European Directive for “personnel protection equipment” (89/686/EWG).
PSA - Lifting point to be as an anchor point for personal protective equipment.
Max number of persons: 1-2

  • Material: Manufactured from forged alloy steel, quenched and tempered
  • Finish: Yellow painted
  • Safety factor: 4:1

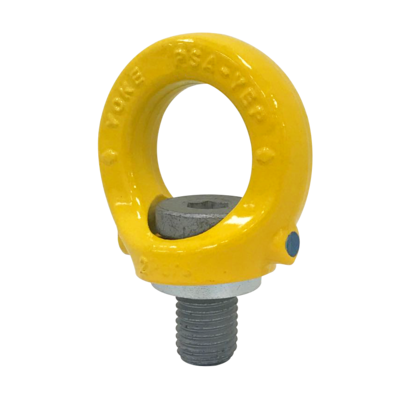

Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button
Art No Torque
Nm

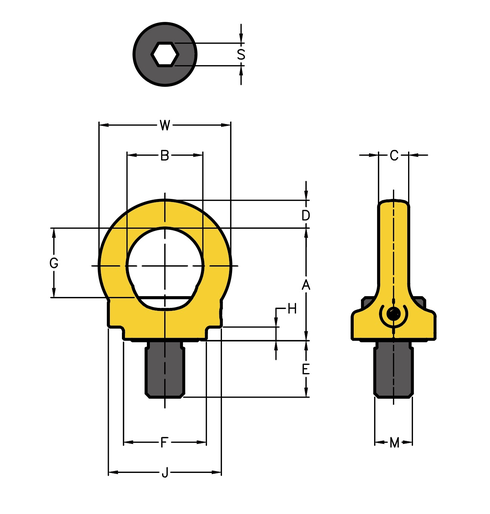

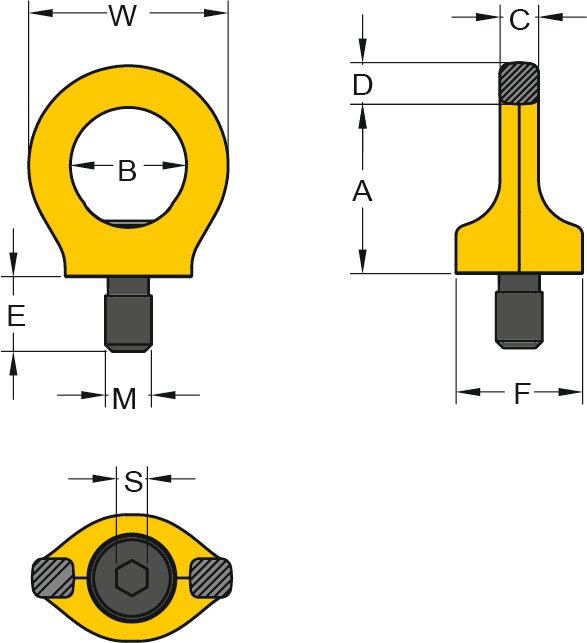

Max. number of persons thread M H (mm) B (mm) C (mm) D (mm) E (mm) F (mm) S (mm) W (mm) Weight
kg
CAD
11528-281-007 10 1 person M12 x 1.75 45 30 10 11 19 33 8 52 0.2
11528-281-015 30 2 person M16 x 2 52 35 14 13 24 35 10 61 0.3
11528-281-023 70 2 person M20 x 2.5 60 40 16 15 30 44 12 70 0.6
