Crosby

General:

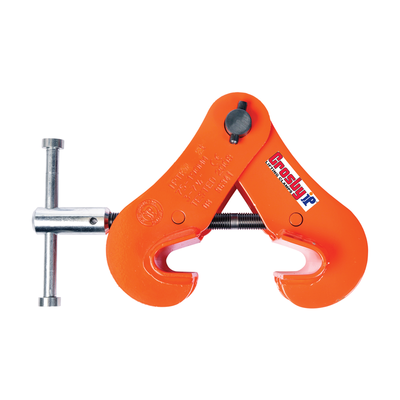

The IPTKW series beam clamp is suitable for use as a temporary tackle eye for a beam and it is an economy version of the IPTK model.

Features:
• Available in capacities of 2 thru 5 metric tons.
• Wide variety of jaw openings available: 75 to 350 mm.
• Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
• Individually Proof Tested to 2 times the Working Load Limit with certification.
• User manual with test certificate is included with each clamp.
• Maintenance and repair kits are available.
• All sizes are RFID EQUIPPED.

  • Material: Alloy steel
  • Marking: According to standard, CE-marked
  • Standard: EN 13155
Select a row from the table below, then click the add to quote button

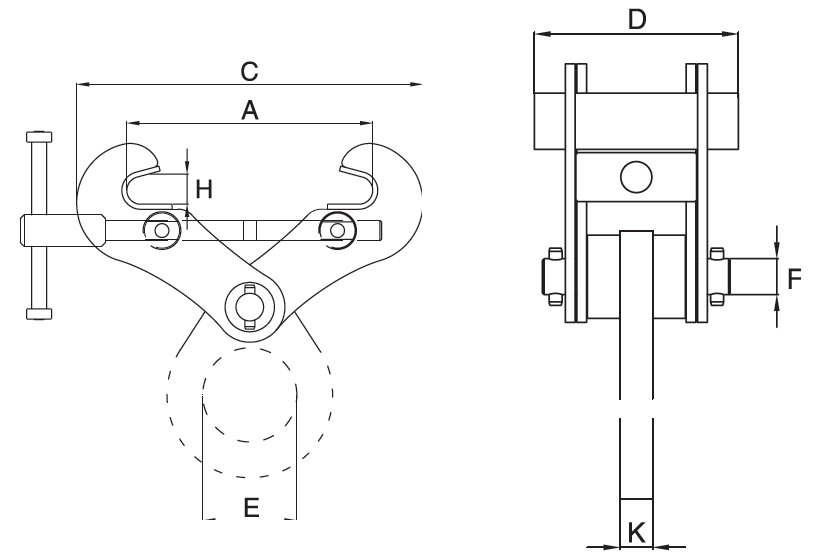

Part Code WLL
ton
I P Model. Jaw width (mm) C
mm
D
mm
F
mm
H
mm
Weight
kg
06D0190 2 2-IPTKW 75-190 jaw+80 125 28 25 4
06D0200 3 3-IPTKW 75-190 jaw+80 125 28 25 4.5
06D0210 4 4-IPTKW 150-280 jaw+100 125 33 35 6.3
06D0220 5 5-IPTKW 120-350 jaw+195 125 33 40 8.8
