General:
The McKissick UB-500 overhaul balls fitted with top swivel and eyehook.

Features:

  • The top swivel design on the UB500 assures the ball remains stationary if the wire rope spins.
  • The swivel incorporates a sealed roller thrust bearing together with a grease fitting for easy lubrication.
  • Each ball can be optional equipped with the new McKissick US422 wedge socket which can be easily adjusted to fit various sizes of wire rope by changing the wedge (ensure that correct wedge is used for selected wire rope size).
  • All hooks forged from Alloy steel and complete with latches.
  • RFID equipped.



  • Marking: CE-marked
  • Safety factor: 4:1

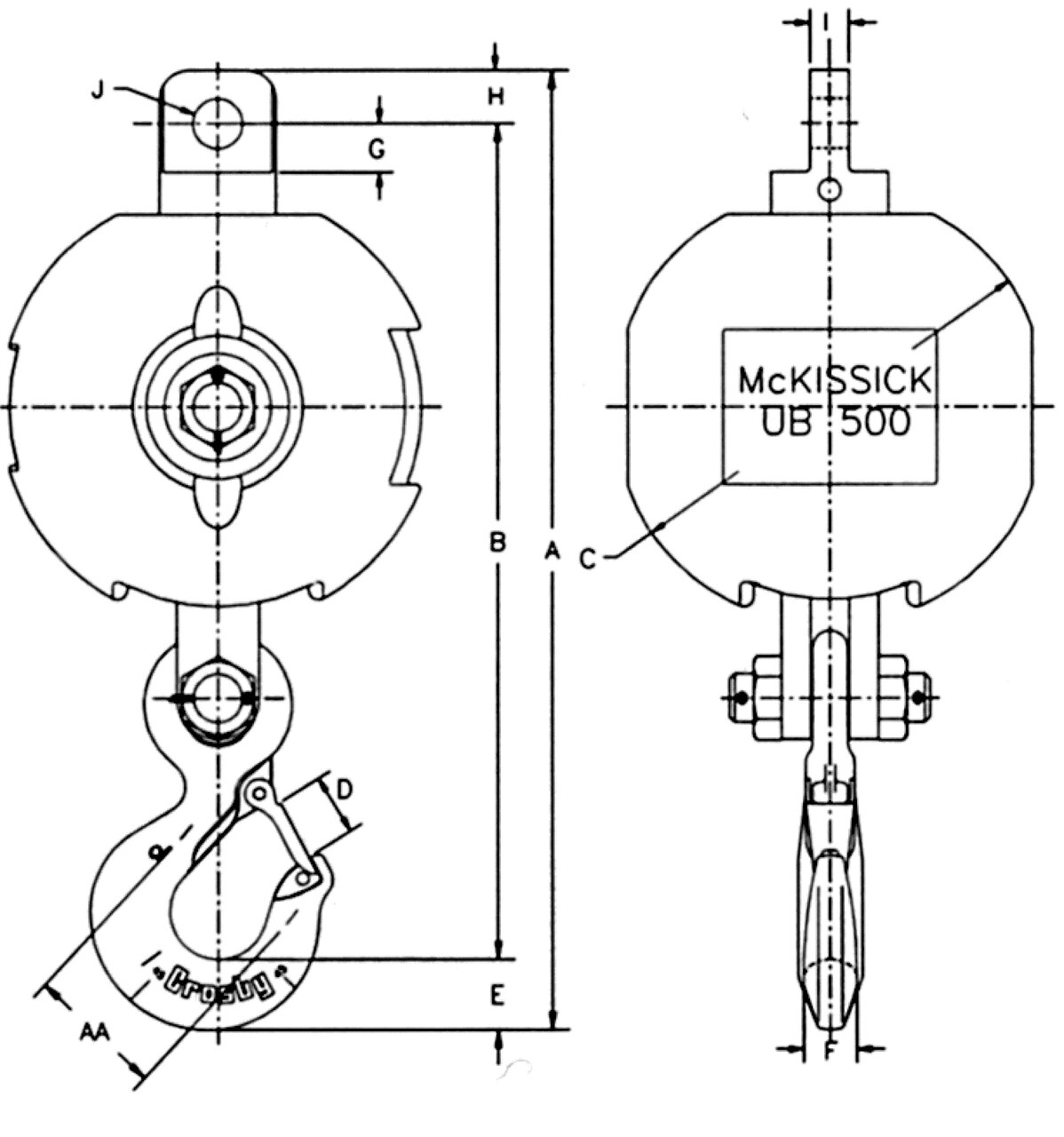

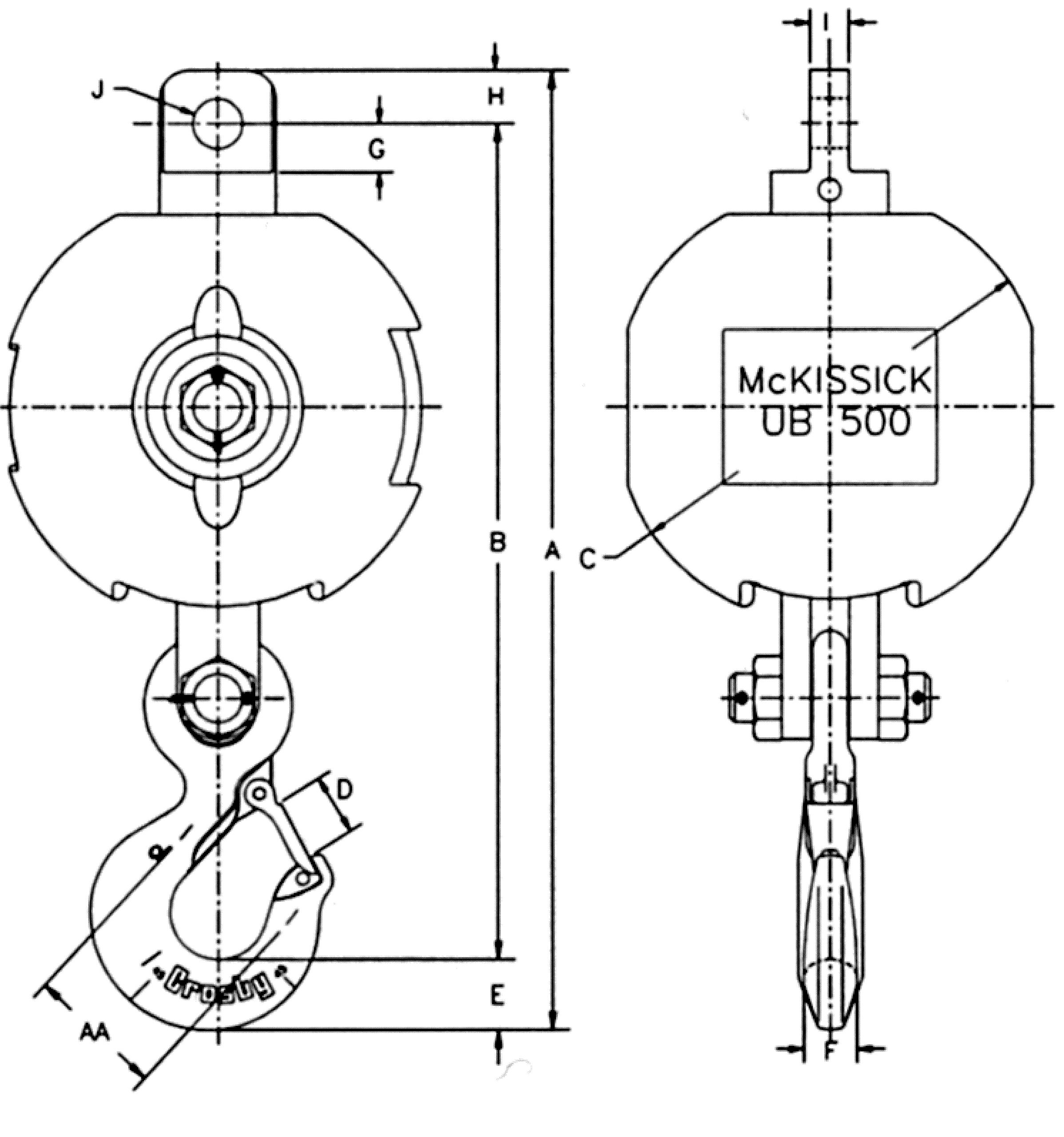

Overhaul ball S316A 320 eye Hook
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Model no. A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
I
mm
J
mm
AA
mm
Weight
kg
-- 3.6 MB4T35 510 439 191 34.5 36.6 28.4 47.8 35.1 22.4 33.3 63.5 26.3
-- 3.6 MB4T85 533 61 235 34.5 36.6 28.4 47.8 35.1 22.4 33.3 63.5 46.3
-- 3.6 MB4T150 558 487 286 34.5 36.6 28.4 47.8 35.1 22.4 33.3 63.5 73.5
-- 3.6 MB4T200 568 496 318 34.5 36.6 28.4 47.8 35.1 22.4 33.3 63.5 91.2
-- 6.3 MB7T85 589 517 235 40.9 46 35.1 47.8 35.1 22.4 33.3 76 49.4
-- 6.3 MB7T150 624 543 286 40.9 46 35.1 47.8 35.1 22.4 33.3 76 77.1
-- 6.3 MB7T200 632 551 318 40.9 46 35.1 478 35.1 22.4 33.3 76 95.3
-- 6.3 MB7T285 657 576 353 40.9 46 35.1 47.8 35.1 22.4 33.3 76 146
-- 9 MB10T150 799 691 286 53 57 41.1 70 51 31.6 45.2 102 98
-- 9 MB10T200 808 700 318 53 57 41.1 70 51 31.8 45.2 102 118
-- 9 MB10T285 832 700 318 53 57 41.1 70 51 31.8 45.2 102 166
-- 9 MB10T350 846 738 381 53 57 41.1 70 51 31.8 45.2 102 183
-- 9 MB10T650 884 776 456 53 57 41.1 70 51 31.8 45.2 102 326
-- 10.8 MB12T150 799 691 286 53 57 41.1 70 51 31.8 45.2 102 98
-- 10.8 MB12T200 808 700 318 53 57 41.1 70 51 31.8 45.2 102 117
-- 10.8 MB12T285 832 724 353 53 57 41.1 70 51 31.8 45.2 102 166
-- 10.8 MB12T350 846 738 381 53 57 41.1 70 51 31.8 45.2 102 183
-- 10.8 MB12T650 909 776 458 53 57 41.1 70 51 31.8 45.2 102 326
-- 13.5 MB15T200 955 828 318 76.5 76 60.5 60.5 51 31.8 45.2 127 135
-- 13.5 MB15T350 986 859 381 76.5 76 60.5 60.5 51 31.8 45.2 127 207
-- 13.5 MB15T650 1,022 895 456 76.5 76 60.5 60.5 51 31.8 45.2 127 342
-- 13.5 MB15T1150 1,072 945 549 76.5 76 60.5 60.5 51 31.8 45.2 127 595
-- 18 MB20T200 955 828 318 76.5 76 60.5 60.5 51 31.8 45.2 127 135
-- 18 MB20T350 986 859 381 76.5 76 60.5 60.5 51 31.8 45.2 127 207
-- 18 MB20T650 1,022 895 381 76.5 76 60.5 60.5 51 31.8 45.2 127 342
-- 18 MB20T1150 1,072 945 549 76.5 76 60.5 60.5 51 31.8 45.2 127 595
-- 22.5 MB25T350 1,198 1,021 381 76 92 76 84 70 44.5 45.2 165 242
-- 22.5 MB25T650 1,248 1,086 456 76 92 76 84 70 44.5 45.2 165 392
-- 22.5 MB25T1150 1,297 1,135 549 76 92 76 84 70 44.5 45.2 165 645
-- 27 MB30T650 1,248 1,086 456 76 92 76 84 70 44.5 45.2 165 392
-- 27 MB30T1150 1,297 1,135 549 76 92 76 84 70 44.5 45.2 165 645
