Crosby

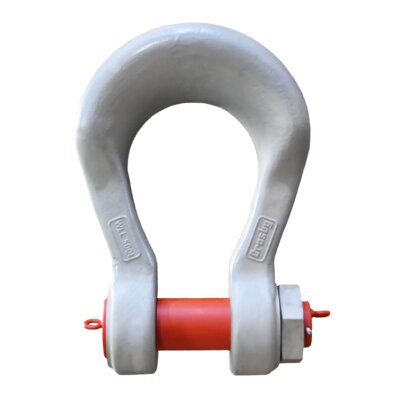

Design: Wide body shackle. Shackle with improved bow radius that greatly improves life of wire rope slings. Can be used to connect wire rope slings, high strength synthetic web slings or high strengths ynthetic round slings.
Approved for use at -40 degree C to 204 degree C. Shackles 18t and larger have DNV Type Approval to Rules for Certification of Lifting Appliances, and are produced in accordance with DNV MSA requirements.

Proof load: All 2160 shackles are individually proof tested and magnetic particle inspected. Sizes 300 metric tons and smaller are proof tested to 2 times the Working Load Limit, sizes 400 metric tons and larger are tested to 1.33 times Working Load Limit.

  • Material: Forged alloy steel from 7 through 300 metric tons. Cast alloy steel from 400 through 1550 metric tons.
  • Marking: According to standard, CE-marked, WLL. Shackles, 30t and larger, are RFID EQUIPPED.
  • Finish: 7-55 tons are galvanized with painted pin. 75t and larger, bows are furnished Dimetcoted, and pins are Dimetcoted, then painted.
  • Standard: EN 13889
  • Safety factor: 7-300 t 5:1 ; 400 t < 4,5:1.
Crosby S2169_red

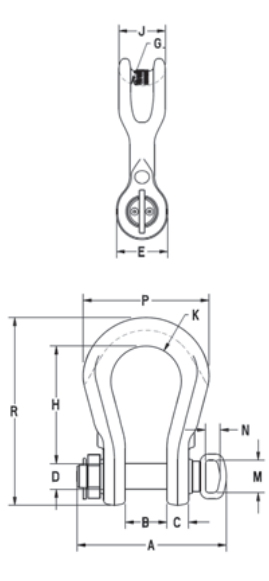

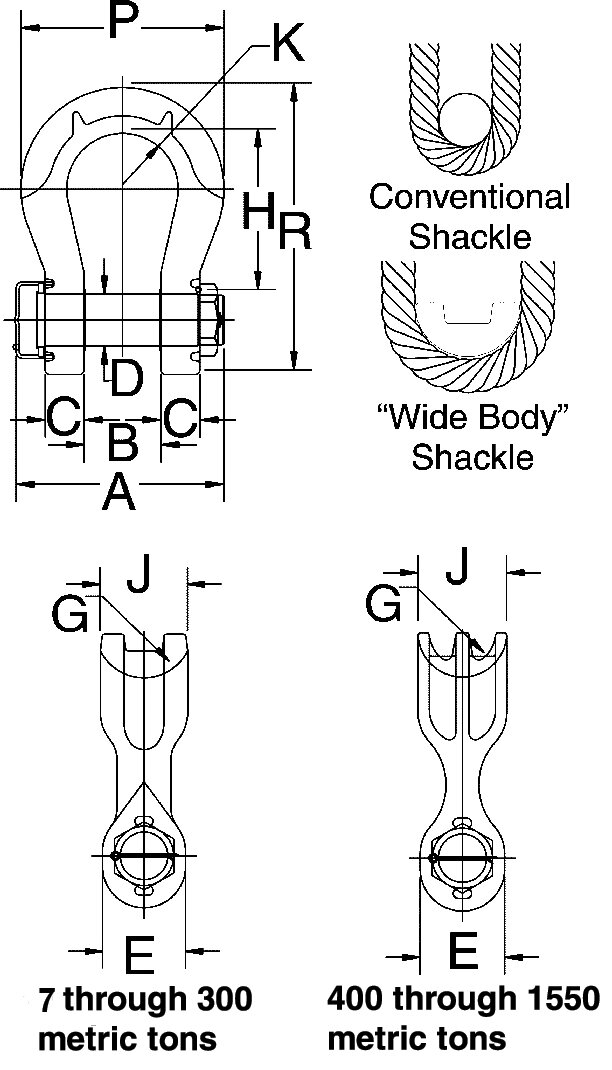

G2160dwg
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Pin Ø
mm
Effective body Ø A
mm
***B
mm
C
mm
E
mm
G
mm
H
mm
J
mm
K
mm
P
mm
R
mm
Weight
kg
-- 7 22.4 53 105 31.8 17,5 46 31.8 90.4 40.6 31.8 104 149 1.81
-- 12.5 28.7 61 137 42.9 23.4 60.5 34.9 118 54.1 41.4 140 194 4.54
-- 18 35.1 71 170 51.6 29.5 68.3 38.1 148 63.5 50.8 172 238 6.8
-- 30 41.4 104 195 60.2 35.1 88.9 63.5 176 79.5 63.5 216 289 11.3
-- 40 50.8 91 236 73.2 42.9 102 44.4 205 95.3 76.2 270 346 20.9
-- 55 57.2 109 263 82.6 50.8 118 66.9 238 114 88.9 311 397 32.2
-- 75 69.9 150 392 105 53.8 136 95.3 293 127 92.5 312 474 51
-- 125 80 173 450 130 67.6 165 95.3 365 150 110 393 594 87
-- 200 105 226 491 150 74.7 214 133 480 217 138 520 773 191
-- 300 133 300 574 187 97.5 267 156 600 264 160 610 957 365
-- 400 160 363 772 220 131 320 203 575 320 185 690 985 518
-- 500 180 376 849 250 146 340 205 630 340 225 790 1,085 653
-- 600 200 516 916 275 158 394 330 700 370 247 865 1,200 967
-- 700 215 422 990 300 167 433 223 735 400 270 940 1,275 1,170
-- 800 230 457 1,059 325 185 449 248 750 420 277 975 1,323 1,372
-- 900 250 569 1,112 350 198 478 330 757 440 293 1,025 1,387 1,712
-- 1,000 270 490 1,169 380 212 508 261 760 460 308 1,075 1,405 1,850
-- 1,250 300 620 1,276 432 233 573 354 930 530 323 1,175 1,660 2,588
-- 1,550 320 693 1,588 465 292 616 318 1,075 590 338 1,316 1,896 3,650
Pin Ø Tolarance +/- 0,5 mm
B Tolarance +/- 6,35 mm
