Standard: Generally to DIN580

Certificates: As standard a works test certificate is supplied, also upon request a basic raw material cert and EC declaration of conformity

  • Material: Stainless steel AISI 316
  • Finish: Polished
  • Safety factor: MBL equals 3 x SWL
Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button

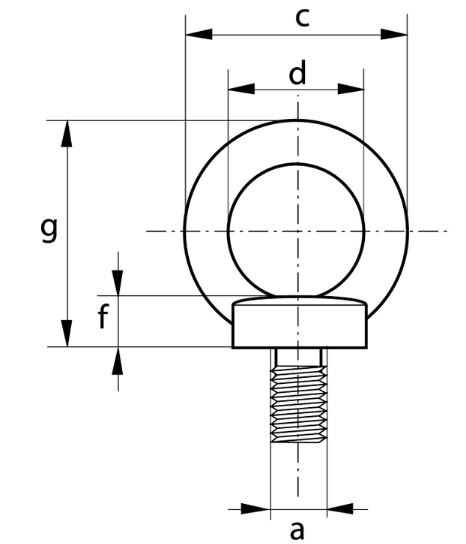

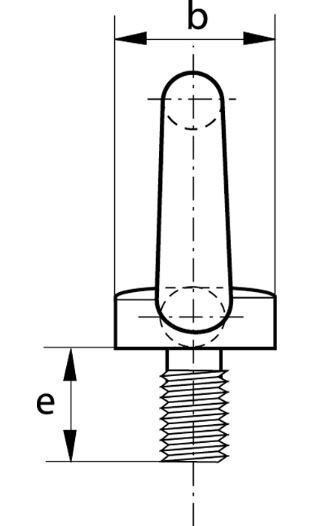

Art No WLL diameter base b (mm) diameter eye outside c (mm) diameter eye inside d (mm) t'ness base f mm height g (mm) weight per 100 pieces (kg) WLL Thread a length e CAD
92101 0.07 20 36 20 6 36 6 6 13
92103 0.23 254 45 25 8 45 10.3 10 17
92104 0.34 30 54 30 10 53 17.7 12 20.5
92105 0.49 35 63 35 12 60 27.7 14 27
92107 0.9 40 72 40 14 71 40.5 18 30
92109 1.5 45 81 45 14 71 67.3 22 35
92102 20 36 20 6 36 6 0.14* 8 13
92106 35 63 35 12 62 28 0.70* 16 27
92108 40 72 40 14 71 42.4 1.20* 20 30
92110 50 90 50 18 90 83.4 1.80* 24 36
92111 65 108 60 22 109 166 3.20* 30 45
92112 75 126 70 26 128 265 4.60* 36 54
Sizes marked * are additional and proportional to the specification Sizes marked * are additional and proportional to the specification Sizes marked * are additional and proportional to the specification Sizes marked * are additional and proportional to the specification Sizes marked * are additional and proportional to the specification Sizes marked * are additional and proportional to the specification Sizes marked * are additional and proportional to the specification Sizes marked * are additional and proportional to the specification Sizes marked * are additional and proportional to the specification
