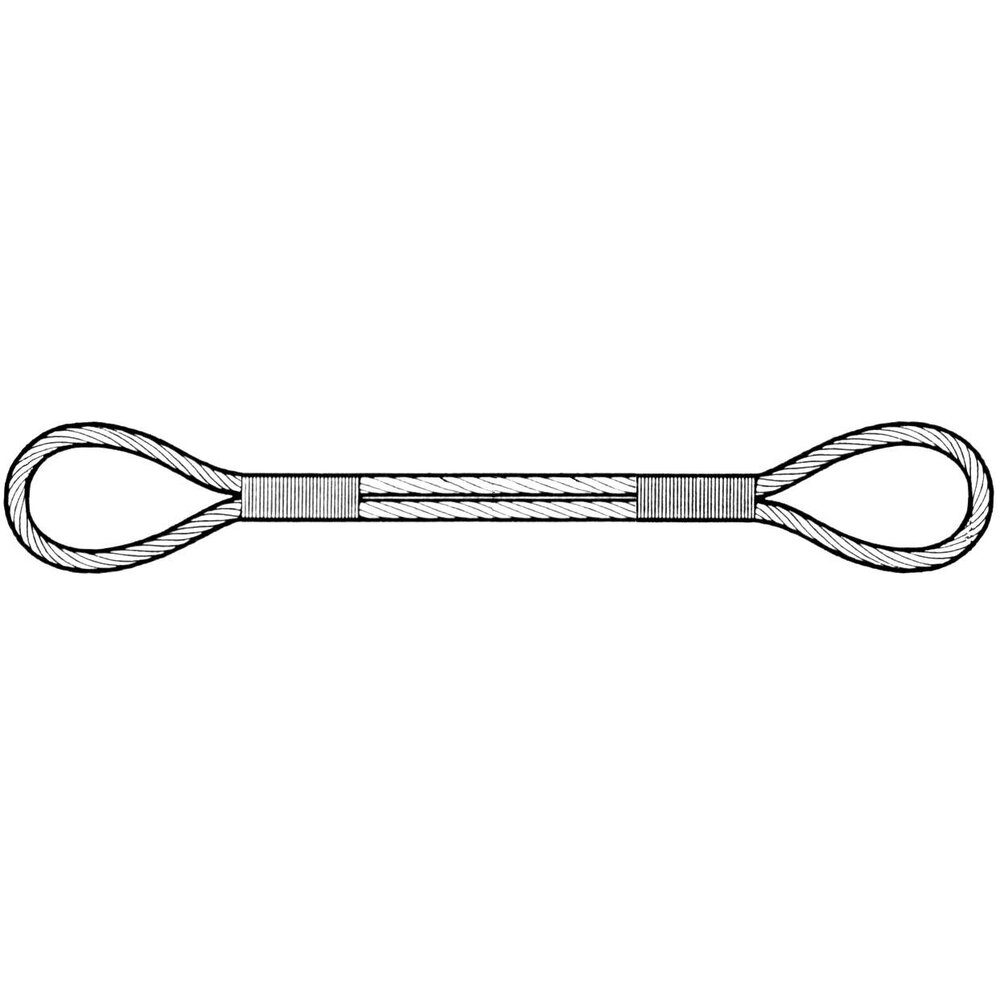

General: Cable layed grommets can be used in all types of lifting operations. They come in different lengths and designs. This design gives great flexibility.

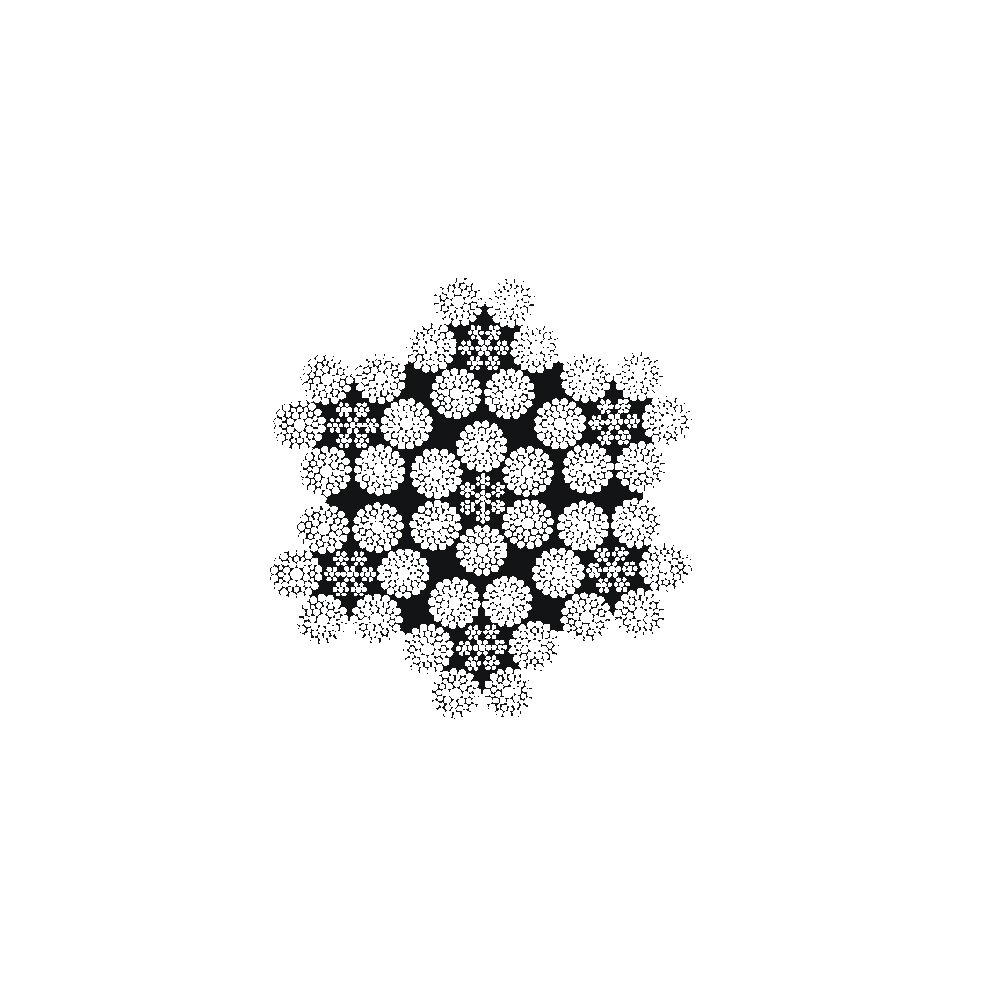

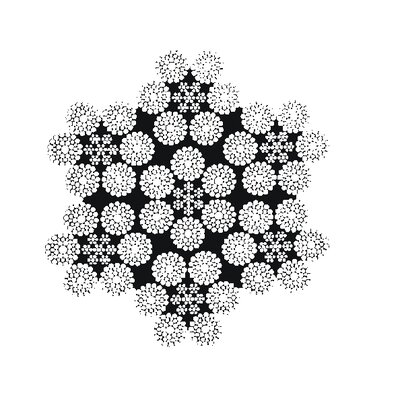

Cablelayed grommets: 7x6x36WS-CW EN 13414-3.
Breaking load: 1960 N/qmm.

  • Standard: EN 13414-3
Select a row from the table below, then click the add to quote button
Art No Diameter
mm
WLL
Ton
Minimum breaking (kn) Min circ m Weight
kg/m
CAD
30 10 15.369 753.581 1,05 3.068
33 11 18.596 911.833 1,16 3.712
36 12 22.131 1 085,156 1,26 4.417
39 13 25.973 1 273,552 1,37 5.184
42 14 30.123 1 477,018 1,47 6.012
48 16 39.344 1 929,167 1,68 7.853
54 18 49.795 2 441,602 1,89 9.939
60 20 61.475 3 014,323 2,10 12.27
66 22 76.245 3 647,331 2,31 14.847
72 24 93.262 4 340,625 2,52 17.669
78 26 112.584 5 094,206 2,73 20.736
84 28 134.417 5 908,073 2,94 24.049
90 30 158.987 6 782,227 3,15 27.608
96 32 186.553 7 716,667 3,36 31.411
102 34 217.405 8 711,394 3,57 35.46
108 36 251.871 9 766,407 3,78 39.755
114 38 290.326 10 881,707 3,99 44.295
120 40 333.198 12 057,293 4,20 49.08
126 42 380.98 13 293,165 4,41 54.111
132 44 434.237 14 589,324 4,62 59.387
138 46 493.63 15 945,770 4,83 64.908
144 48 559.925 17 362,502 5,04 70.675
150 50 634.025 18 839,520 5,25 76.688
18.NO45156 52 692.619 20 376,825 5,46 82.945
