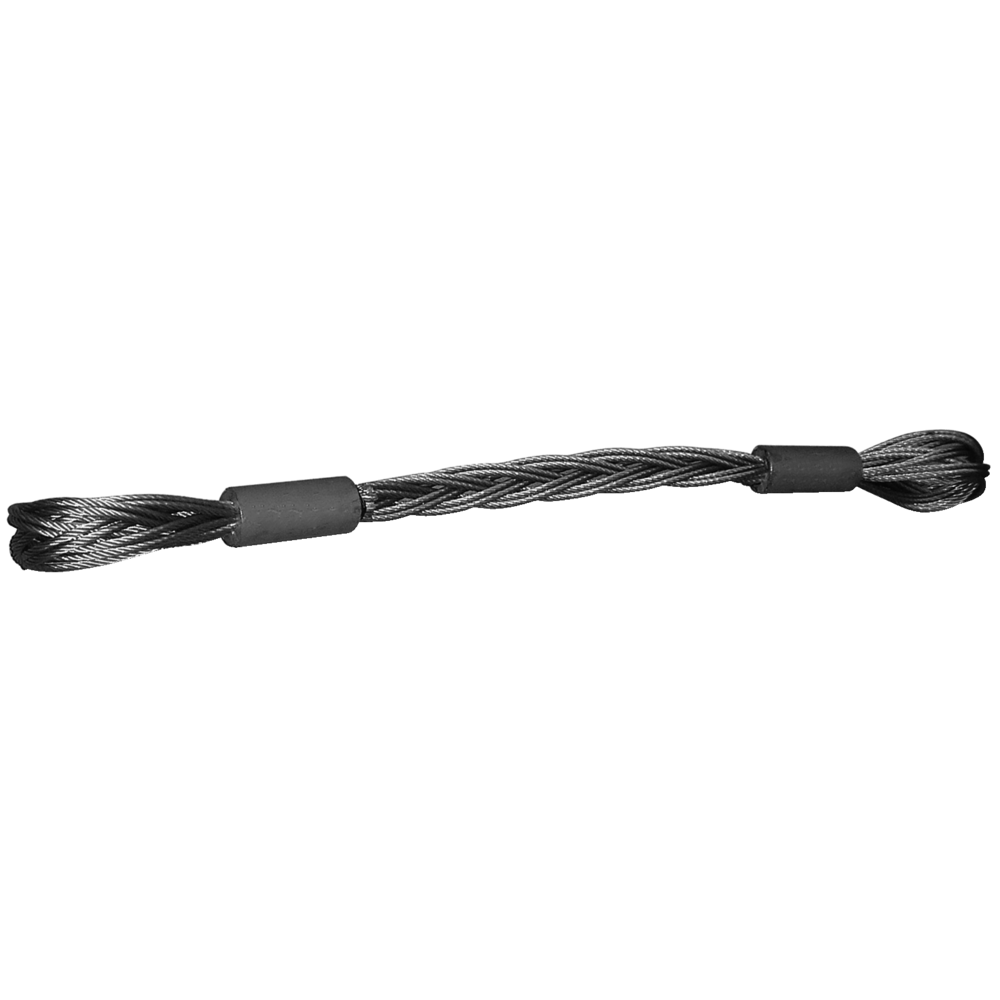

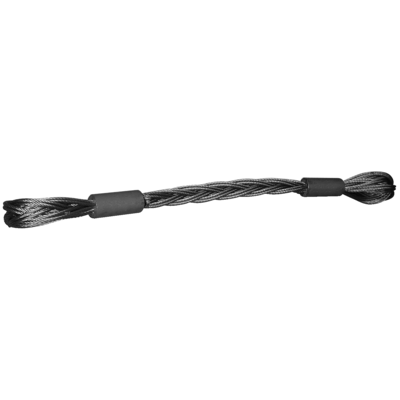

Flat braided wire slings for advanced lifting in all industries.

Manufactured of 10 steel wire ropes in construction 6x19-WSC, which have been braided to provide a very flexible lifting sling with a wide connect surface. Length according to customers requirements.

The manufacturing, testing and calculation is according to Machinerydirective 2006/42/EC, and has been witnessed by DNV GL.

  • Features: Standard slings are manufactured with standard aluminum ferrule. Can be manufactured with conical ferrule on request.

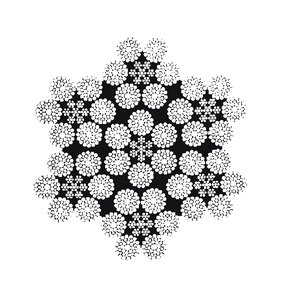

  • Rope construction: 6x19-WSC (7x19)
  • Marking: CE-marked
  • Temperature range: -40°C up to +150°C
  • Finish: Galvanized
  • Note: Before using the lifting gear, the instructions for use should be read and understood. The instructions of use are containing information on how the lifting gear is used and working in a safe and correct way.
  • Safety factor: 5:1
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
-- 0.95
-- 1.6
-- 2.5
-- 3.2
-- 4.8
-- 5.8
-- 8
The last digit of article numbers indicate lenght in metres.
* WLL for other D/d ratio see the user manual.


Straight lift
WLL (ton)
Choked lift
WLL(ton)
U-lift
WLL (ton)
Basket 0-45°
WLL (ton)
Basket 45-60°
WLL (ton)
Load factor
1
Load factor
0,8
Load factor
2
Load factor
1,4
Load factor
1
