100% taring capability (by rotating the dial face).
Zero set by rotating the dial face.
Plexiglass dial face cover.
160mm scale diameter.
Graduated in kilogrammes and tonnes.
Fixed link top suspension up to 5.000kg.
Hook with latch bottom suspension up to 5.000kg.
Eye – eye suspension over 5.000kg.

  • Features: Accuracy better than display resolution (1% of rated load, nominal).
  • Finish: Zinc plated.
  • Safety factor: 4:1.

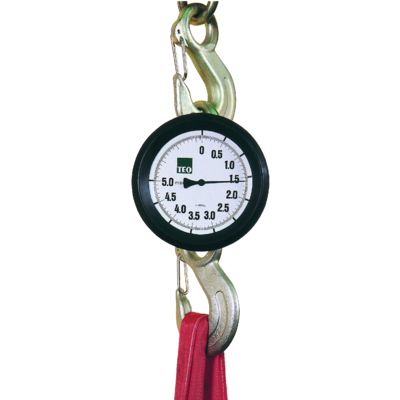

CRANE WEIGHER

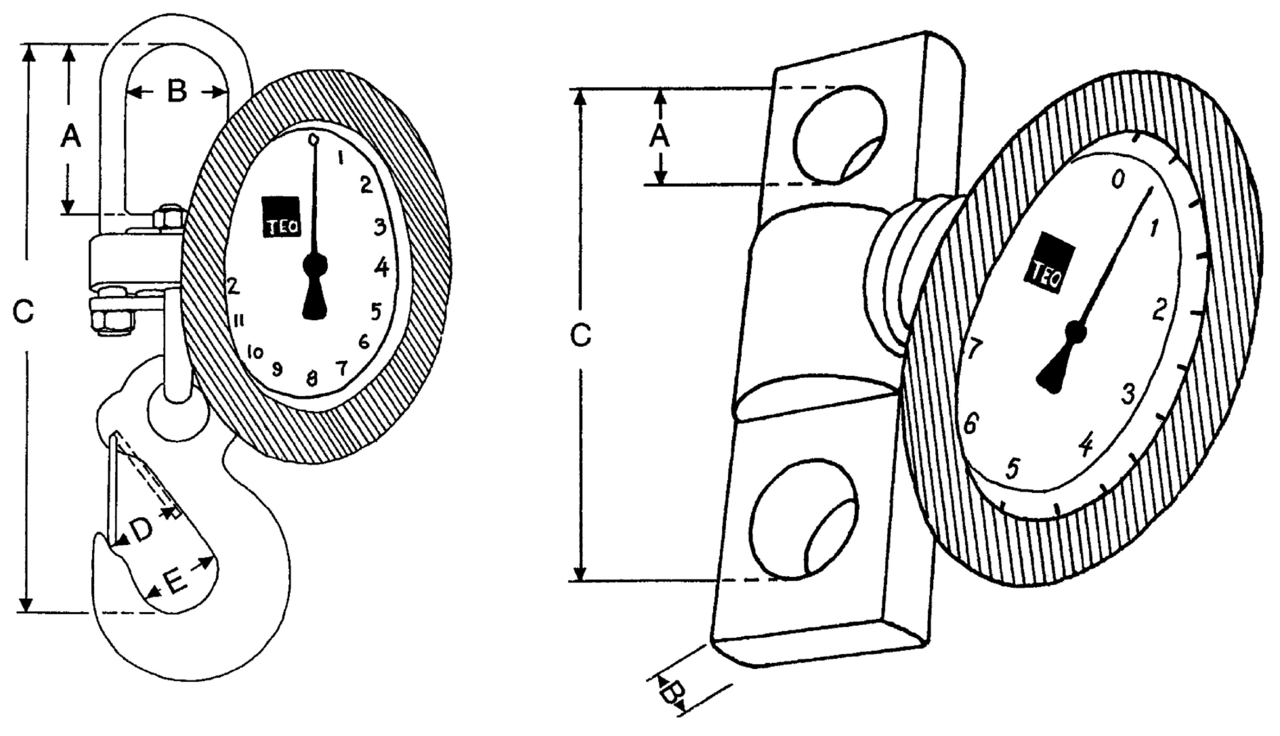

TEO crane scale dwg
Select a row from the table below, then click the add to quote button
Art No WLL
Ton
Type SWL Division (kg) A (mm) B (mm) C (mm) D (mm) E (mm) Weight
kg
CAD
16.5013-0200 0.2 200-SK 1 5:1 1 68 54 254 27 35 5
16.5013-0320 0.32 320-SK 2 5:1 2 68 54 254 27 35 5
16.5013-0500 0.5 500-SK 2 5:1 2 68 54 254 27 35 5
16.5013-0750 0.75 750-SK 5 5:1 5 68 54 254 27 35 5
16.5013-1250 1.25 1250-SK 5 5:1 5 68 54 254 27 35 5
16.5013-2000 2 2000-SK 10 5:1 10 68 54 254 27 35 5
16.5013-3200 3.2 3200-SK 20 5:1 20 93 54 304 34 46 5.5
16.5013-5000 5 5000-SK 20 5:1 20 93 54 328 42 56 6.5
16.5013-7500 7.5 7500-SK 50 4:1 50 40 41 213 - - 8.1
16.5014-012 12.5 12500-SK 50 4:1 50 40 41 213 - - 8.1
16.5014-025 25 25000-SK 100 4:1 100 55 42 267 - - 12.9
16.5014-032 32 32000-SK 200 4:1 200 75 56 329 - - 30
16.5014-050 50 50000-SK 200 4:1 200 75 56 329 - - 30
16.5014-085 85 85000-SK 500 4:1 500 85 60 390 - - 60
