Welded Master Link designed for 3-4 legs Wire Rope and Chain Slings.
At least 25% greater WLL than traditional Grade 8 products. Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.

  • Material: Quenched and Tempered Alloy Steel
  • Marking: According to standard, CE-marked, Type, manufacturer ID, traceability.
  • Temperature range: -40° up to +200°C (without reduction in WLL).
  • Finish: Blue painted.
  • Standard: EN 1677-4
  • Safety factor: 4:1
  • Grade: 10

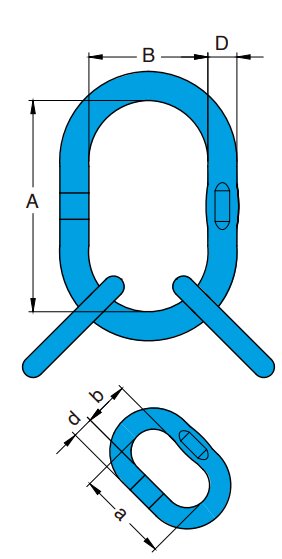

Product Picture 1

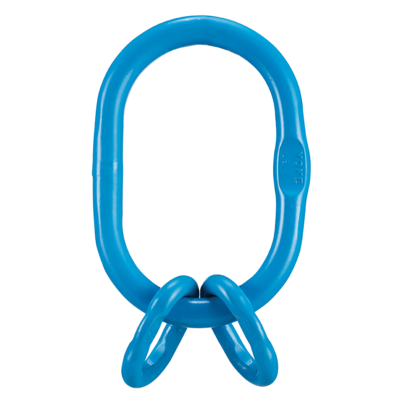

Product Picture 2
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
For chain gr 10 Ø 2 leg
mm
For chain gr 10 Ø 3-4 leg
mm
WLL β 0-45°
ton
Used to single hook acc. to DIN 15401 No. Proof Load
kN
D
mm
A
mm
B
mm
d
mm
a
mm
b
mm
Weight
kg
11.02X-0082-22 ED-22 3,55 6,7,8 6 3,55 25 87 22 340 180 13 54 25 3,2
11.02X-0082-28 ED-28 5,6 10 7,8 5,6 25 137 28 340 180 16 70 34 5,4
11.02X-0082-32 ED-32 9,5 13 10 9,5 25 233 32 340 180 19 85 40 7,4
11.02X-0082-40 ED-40 14,1 16 13 14,1 25 343 40 340 180 22 115 50 12,1
11.02X-0082-401 ED-40 21,1 20 16 21,2 25 519 40 340 180 25 140 65 14,2
