Bulldog

Super-quick adjustment to any monorail
Durable baked enamel paint protection
Precision ball bearing trolley wheels
  • Features: Lightweight robust construction

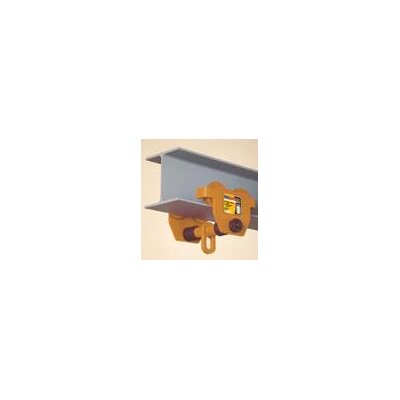

    BULL PUSH GIRDER

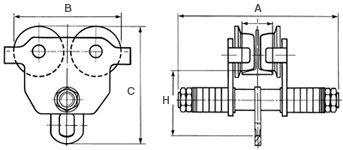

    BULL PUSH GIRDER DRAW
    Select a row from the table below, then click the add to quote button
    Part Code WLL
    ton
    Beam width
    mm
    Net weight
    kg
    Min. Radius Curve
    m
    Clearance Dimensions
    mm for A
    Clearance Dimensions
    mm for B
    Clearance Dimensions
    mm for C
    Clearance Dimensions
    mm for H
    06C0010 0,5 254 8 0,9 254 216 195 110
    06C0020 1 318 14 1 318 260 239 135
    06C0030 2 335 21 1,1 335 300 286 161
    06C0040 3 357 36 1,3 357 345 336 185
    06C0050 5 368 51 1,4 368 395 393 220
    -- 10 405 90 1,7 405 455 500 280
