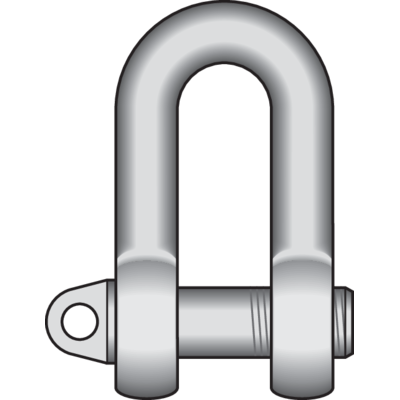

Design: A range of high quality UK manufactured Higher Tensile steel dee shackles
Material:
Marking:
Safety Factor:
4:1
Finish:
Standard:
101_225mm
SMALL DEE DRAW
ALTERNATIVE PINS DRAW
Select a row from the table below, then click the add to quote button
WLL
Ton
Stockcode D (mm) W (mm) S (mm) e (mm) Weight
kg
CAD
0.25 05A0590 3/8 1/2 1 3/4 0.06
0.5 05A0610 1/2 3/4 1.1/2 1 0.16
0.75 05A0630 5/8 1.1/8 2.1/8 1.1/4 0.35
1.5 05A0650 3/4 1.1/4 2.1/2 1.1/2 0.63
2 05A0660 7/8 1.1/2 2.7/8 1.3/4 1
3 05A0690 1 1.3/4 3.1/4 2 1.54
3.75 05A0710 1.1/8 2 3.3/4 2.1/4 2.21
5 05A0730 1.1/4 2.1/8 4.1/8 2.1/2 3.11
6 05A0740 1.3/8 2.3/8 4.1/2 2.3/4 4.33
7 05A0750 1.1/2 2.5/8 5 3 5.33
9.5 05A0760 1.3/4 2.3/4 5.3/8 3.1/2 8.46
11.25 1.7/8 3 5.3/4 3.3/4 10.48
13 05A0770 2 3.1/4 6.1/8 4 12.66
14.25 05A0780 2.1/8 3.5/8 7 4.1/4 15.34
16.25 05A0790 2.1/4 3.7/8 7.3/8 4.1/2 18.5
18 2.3/8 4.1/8 7.3/4 4.3/4 23.8
20 2.1/2 4.1/4 8.1/4 5 28.6
25 2.7/8 4.3/4 9.1/4 5.3/4 38
