Design: Warning! Safe working loads quoted refer to the load being applied vertically. Eyebolts need to be down rated when side loading occurs. Sizes marked * are additional and proportional to the specification.
Also available with UNC, UNF, BSF threads.

  • Safety factor: 4:1.
9508M_225mm

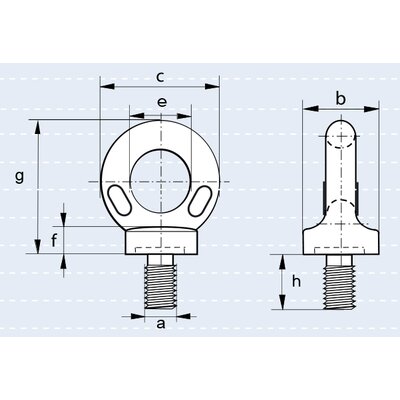

Dimensions
Select a row from the table below, then click the add to quote button
WLL
Ton
WLL stock code bsw stock code unc stock code long shank A (mm) B (mm) D (mm) E (mm) F (mm) G (mm) H (mm) Weight
kg
CAD
0.25 05B0300 05B0360 3/8 22 7 15 9 20 18 0.06
0.5 05B0310 05B0370 1/2 29 10 20 12 26 23 0.15
0.9 05B0320 05B0380 5/8 36 12 24 14 32 28 0.27
1.4 05B0330 05B0390 3/4 45 14 30 17 40 35 0.54
2 05B0340 05B0400 7/8 52 17 35 21 46 40 0.85
2.75 05B0350 05B0410 05B0490 1 58 20 39 23 52 46 1.13
3.5 05B0420 1.1/8 65 22 44 26 58 51 1.62
4.5 05B0430 1.1/4 72 24 48 29 64 56 2.37
6.5 05B0440 1.1/2 86 29 57 33 76 67 3.81
9 1.3/4 101 34 68 40 90 79 6.27
12 2 115 38 76 46 102 89 9.58
0.10* Ton 1/4 22 7 15 9 20 18 0.06
0.15* Ton 5/16 22 7 15 9 20 18 0.06
