General:
The IP10 series vertical lifting clamps are used for the lifting, turning, moving or vertical transfer of sheet, plates, or fabrications from horizontal to vertical and down to horizontal (180°) as needed. Usually used as a single point pick or when used with a spreader beam with multiple vertical drop lines. Available in a variety of models:
• IP10 - Standard clamp for materials with a surface hardness to 363HV10 (345 HB).
• IP10J - Larger jaw opening.
• IP10S - For use with Stainless Steel material.
• IP10H - For use with materials with a surface hardness to 472HV10 (450 HB).

Features:
• Available in capacities of .5 thru 30 metric tons
• Higher Working Load Limits are available upon request.
• Wide variety of jaw openings available: 0 to 155mm.
• Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
• Individually Proof Tested to 2 times the Working Load Limit with certification.
• User manual and test certificate included with each clamp.
• Full 180° turning range for material transfer, turning or moving.
• Lock open, lock closed ability with latch for pretension on material and then release of material.
• For plate surface hardness till 279HV10, only 5% min. WLL is needed.
• Maintenance and repair kits are available.
• All sizes are RFID EQUIPPED.

  • Material: Alloy Steel.
  • Marking: Logo, WLL, serial number, proofload test date and jaw opening.
  • Finish: Painted.
  • Standard: EN 13155
  • Warning: A minimum load of 10% of the WLL is required.
  • Safety factor: 4:1
IP10

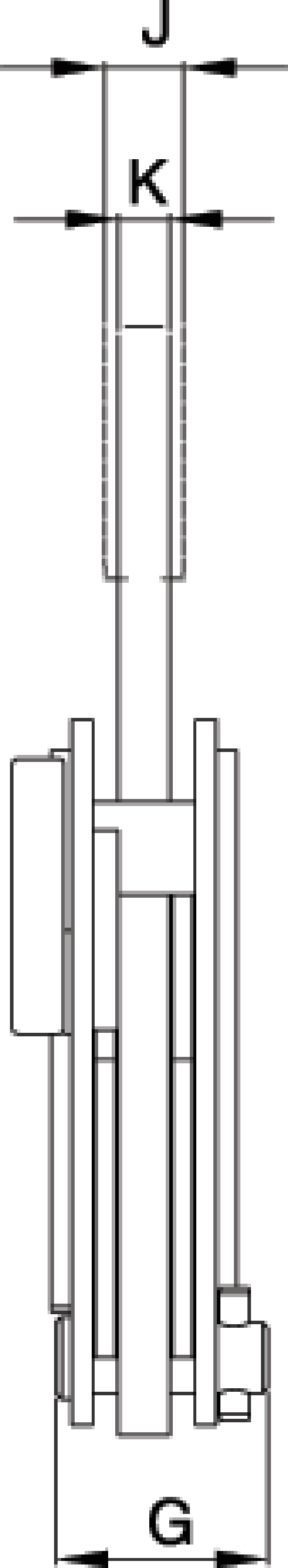

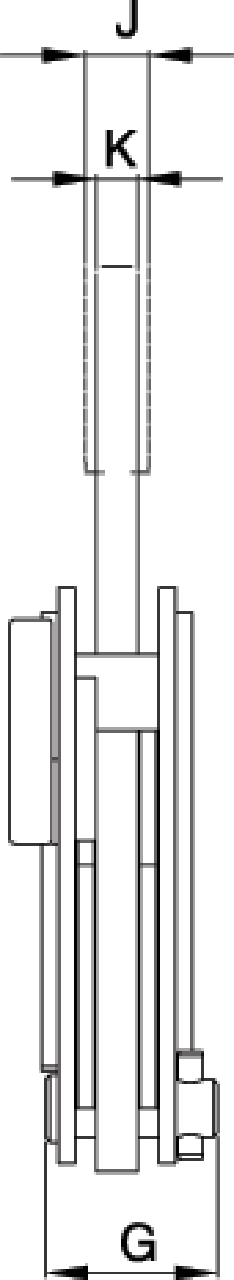

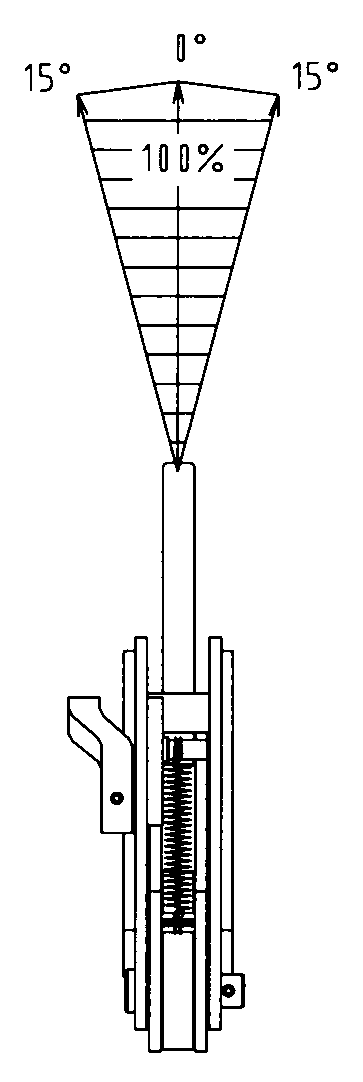

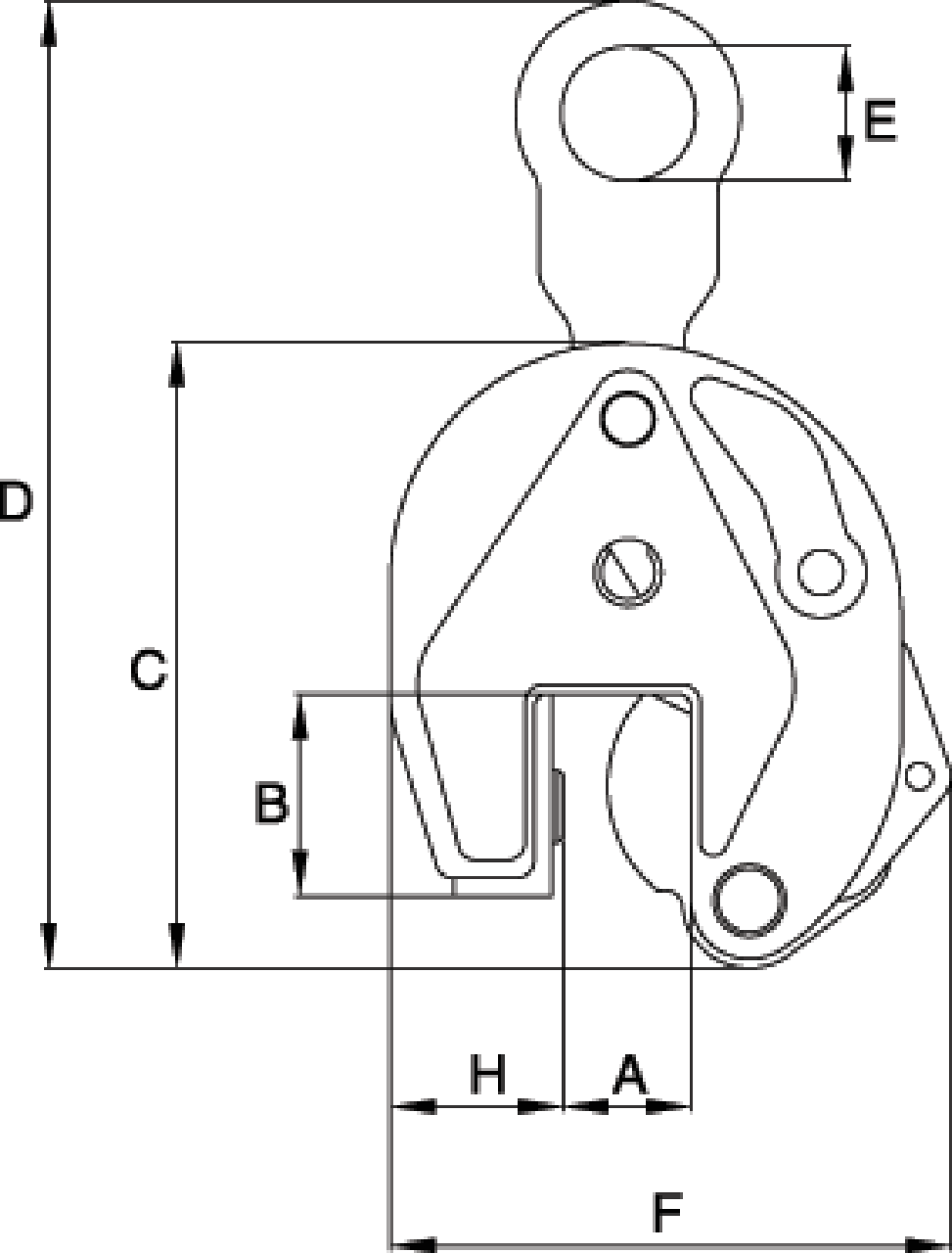

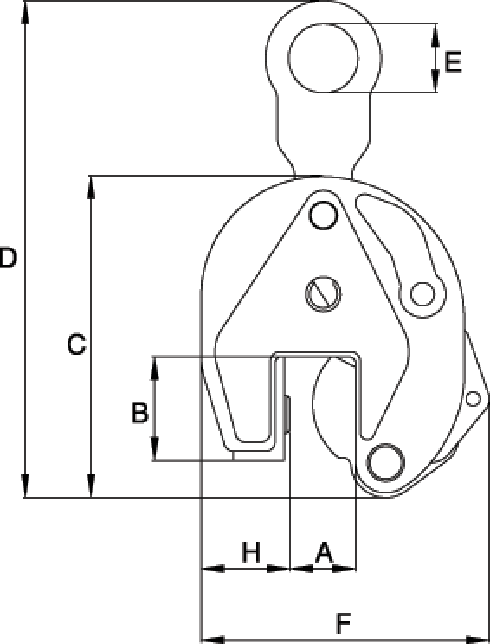

IP10 DRAW IP10 DRAW1
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
I P Model. Jaw width (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) J (mm) K (mm) Weight
kg
16.012701674 0.5 0.5-IP10 0-16 44 130 203 40 115 42 28 - 11 1.8
16.012701662 1 1-IP10 0-20 45 139 212 40 127 42 38 - 11 2.2
16.012701676 2 2-IP10 0-35 78 201 330 70 188 64 55 - 16 7.6
16.012701664 3 3-IP10 0-40 100 253 434 75 222 78 60 - 20 13.8
16.012701666 4.5 4.5-IP10 0-40 100 253 434 75 227 82 65 - 20 15
16.012701668 6 6-IP10 0-50 126 302 517 80 292 84 95 40 20 23.5
16.012701705 6 6-IP10J 50-100 126 302 506 80 336 84 95 40 20 24.5
16.012701670 9 9-IP10 0-50 126 325 545 80 310 94 104 44 25 27.5
16.012701672 9 9-IP10J 50-100 126 325 542 80 360 94 105 44 25 28.5
16.012701678 12 12-IP10 0-54 160 392 574 80 433 121 137 41 25 49
16.012701680 12 12-IP10J 54-108 178 438 620 80 491 121 136 41 25 58
16.012701682 16 16-IP10 5-64 180 463 686 88 492 121 153 49 25 68
16.012701684 16 16-IP10J 64-128 208 521 734 88 562 121 160 45 25 80
16.012701688 22 22-IP10J 80-155 255 628 883 110 660 139 196 49 25 131
16.012701686 22.5 22.5-IP10 5-80 222 554 803 110 565 153 186 54 30 124
16.012701690 30 30-IP10 5-80 222 554 803 110 565 153 186 54 30 124
16.012701692 30 30-IP10J 80-155 255 628 887 110 660 153 196 54 30 147
