General:
The IPBTO10 shipbuilding clamp is used as a temporary tackle eye in spaces which have been reinforced with HP (bulb) profiles such as engine rooms and shipsections. This clamp is fitted with a screwed spindle for easy attachment of the clamp. The moment a load is applied, the clamp is automatically fixed.

Features:
• Available in capacities of 1.5 thru 6 metric tons.
• Wide variety of jaw openings available: HP 160mm to HP 430mm
• Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
• Individually Proof Tested to 2 times the Working Load Limit with certification.
• User manual with test certificate is included with each clamp.
• Maintenance and repair kits are available


  • Material: Alloy steel.
  • Marking: According to standard, CE-marked
  • Standard: EN 13155

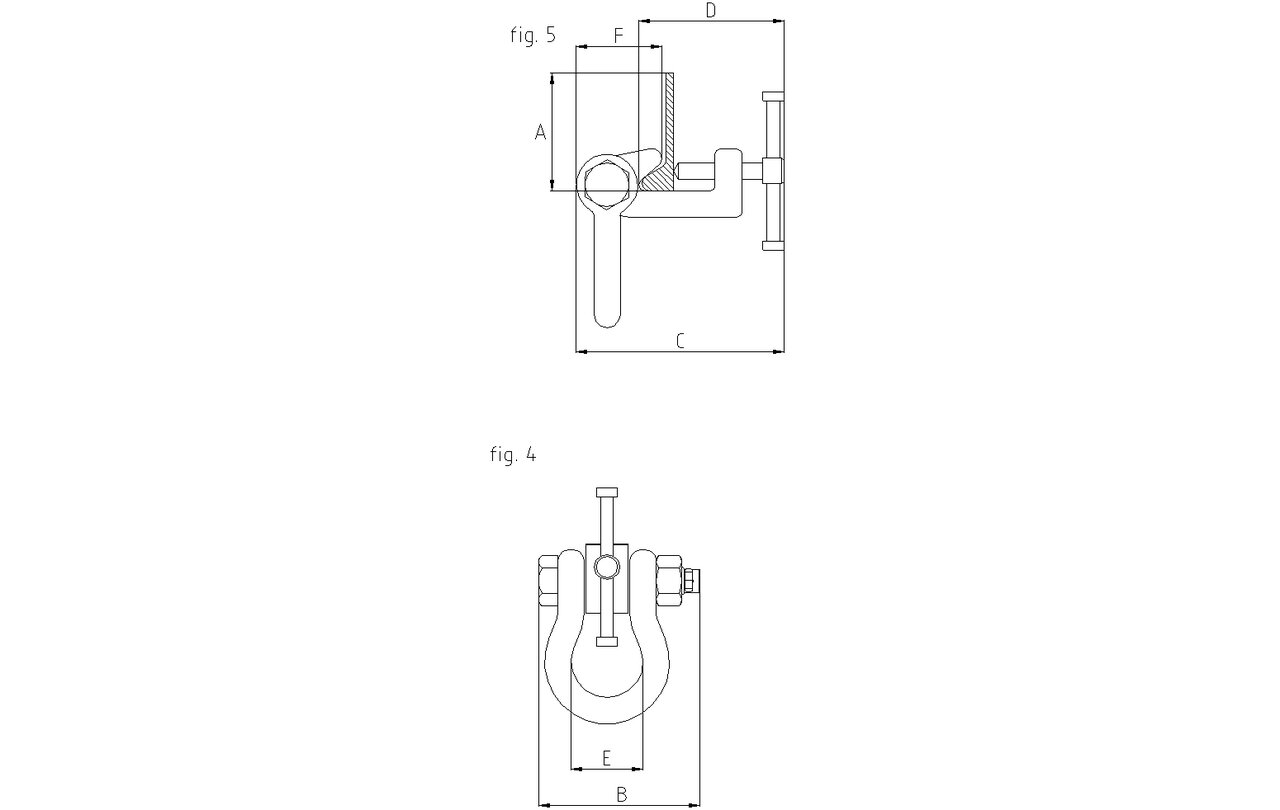

BTO10_afmetingen
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
I P Model. Profile A* B (mm) C (mm) D
mm
E (mm) F (mm) Weight
kg
-- 1.5 1.5-IPBTO10 HP 160 - 240 137 188-209 129-150 68 81 4.3
-- 3 3-IPBTO10 HP 240 - 320 137 188-217 145-174 68 78 6
-- 6 6-IPBTO10 HP 300 - 430 185 255-297 195-236 98 102 13

* Profile A is the type of Holland Bulb Profile style (HP) and size material.
