General:
The IPBSNZ beam clamp is used for lifting, transferring and stacking. Offset hoisting eye allows for level lifts of I-Beams. Also for lifting fabrications and ship sections. This series of clamps can be used in vertical and horizontal moving, transferring and stacking of different types of structural designs, such as I-Beams, depending on the application desired.

Features:
• Available in capacities of 1.5 thru 4.5 metric tons
• Wide variety of jaw openings available: 0 to 50mm.
• Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
• Individually Proof Tested to 2 times the Working Load Limit with certification.
• User manual with test certificate is included with each clamp.
• Maintenance and repair kits are available.
• All sizes are RFID EQUIPPED.

  • Material: Alloy steel.
  • Marking: According to standard, CE-marked
  • Standard: EN 13155
  • Warning: For a correct operation of the clamp a minimal load of 10% of the WLL is needed.
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Jaw width
mm

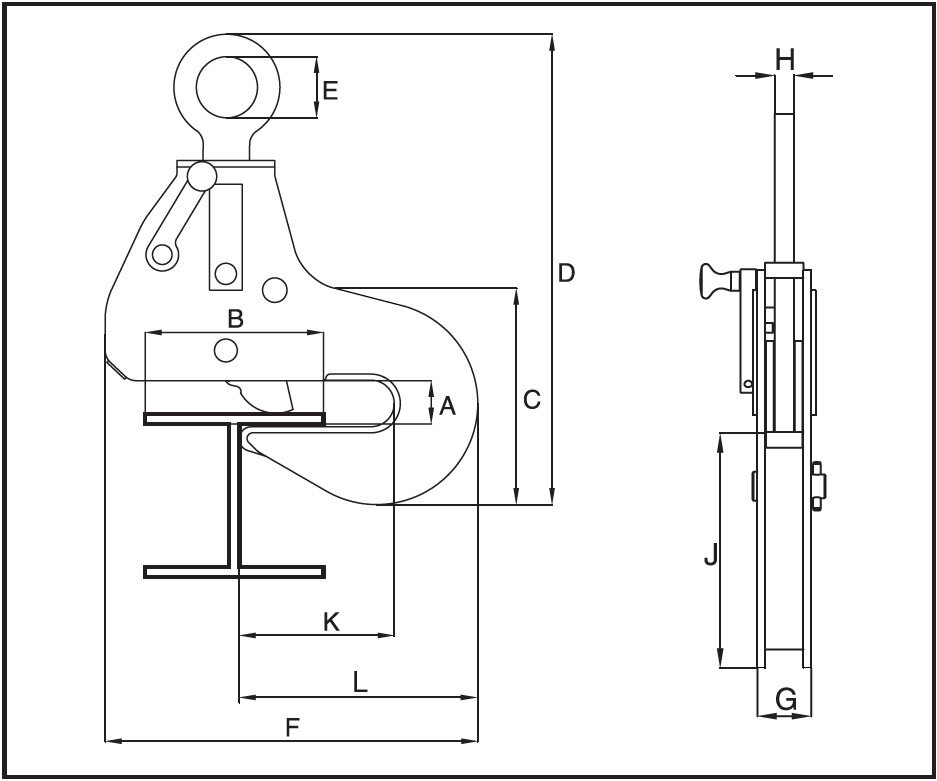

I P Model. B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
J
mm
K
mm
L
mm
Weight
kg
CAD
-- 1,5 0-32 1.5-IPBSNZ 100-270 304 480 70 319 47 16 165 148 240 14 -
-- 3 0-40 3-IPBSNZ 100-330 352 494 75 408 56 20 207 182 260 22 -
-- 4,5 0-50 4.5-IPBSNZ 100-360 420 630 75 457 56 20 250 188 293 30,5 -

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
