Crosby

General:
The IPBC horizontal lifting clamps have a pretension feature that allows the user to attach the clamps to the material for horizontal lifting and transfer of sagging and non-sagging material. These clamps may also be used to handle material that will be used in shears, bending and rolling machines or other fabrication equipment. May also be used for turning beams from the “H” into the “I” position.Thanks to the special construction with the ergonomic lever, your work is made light & easy and can be carried out by a single person.

Features:
• Available in capacities of 1 thru 4.5 metric tons.
• Jaw openings available: 0 to 40mm.
• Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
• Individually Proof Tested to 2 times the Working Load Limit
• User manual with test certificate is included with each clamp.
• Maintenance and repair kits are available.
• All sizes are RFID EQUIPPED.



  • Features:
  • Material: Alloy steel.
  • Marking: According to standard, CE-marked
  • Standard: EN 13155
Crosby_IPBC_pic

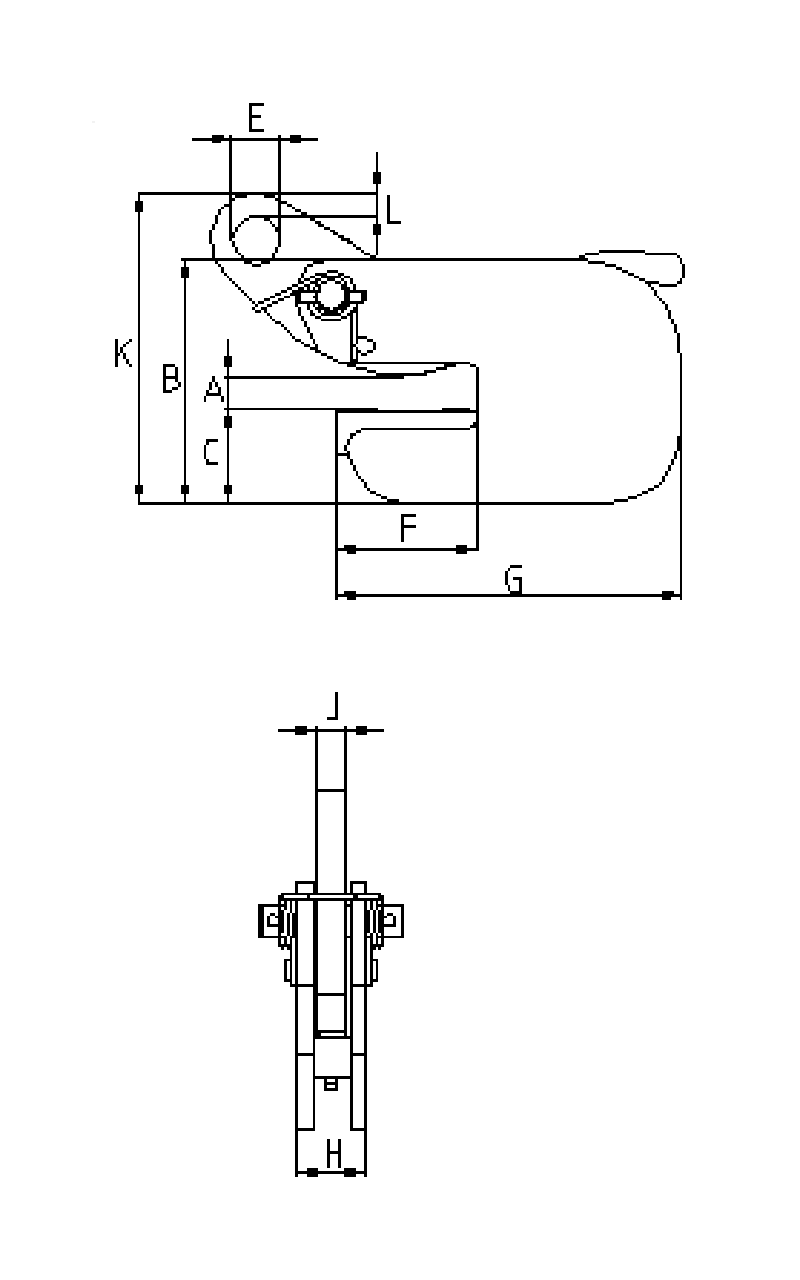

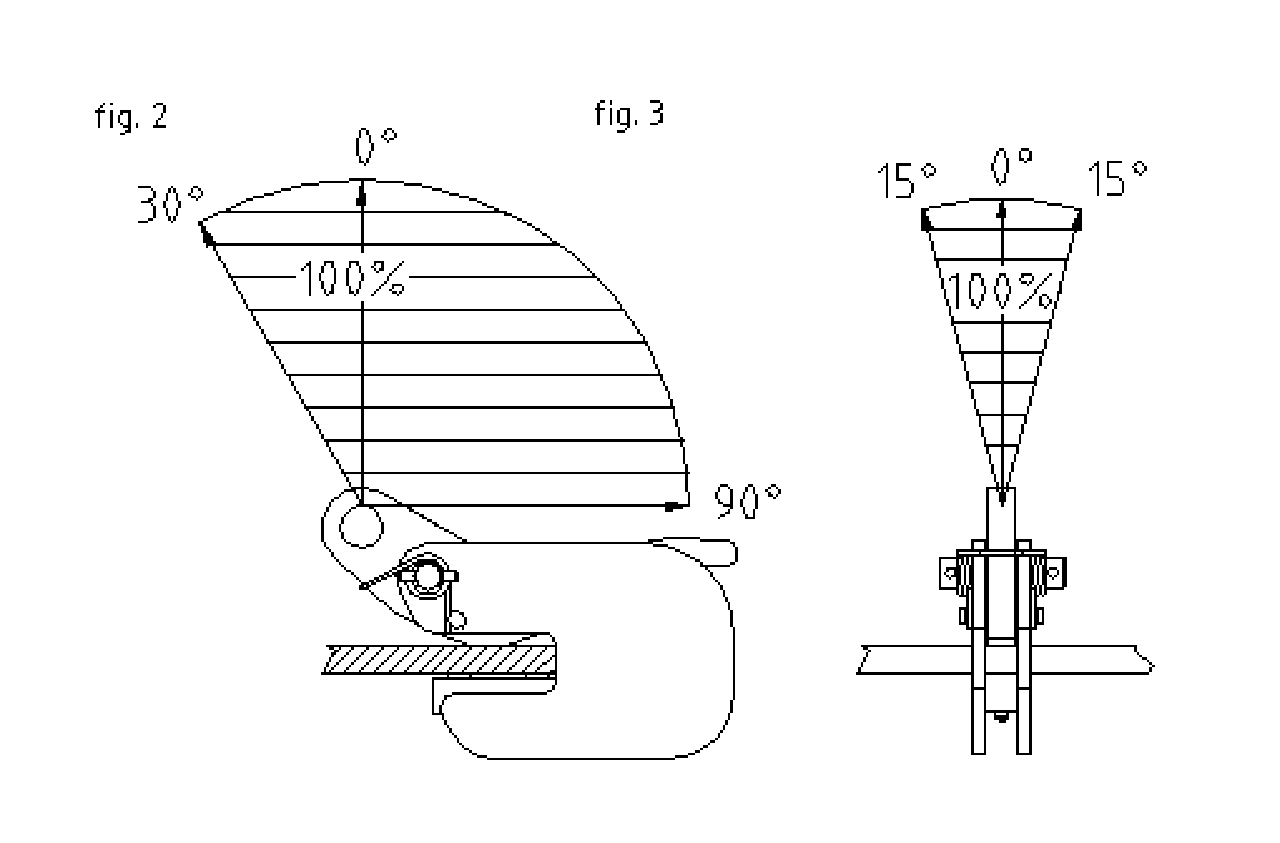

Crosby_IPBC_drw1 Crosby_IPBC_drw2
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Jaw width (mm) B
mm
C
mm
E
mm
F
mm
G
mm
H
mm
J
mm
K
mm
L
mm
Weight
kg
-- 1-IPBC 1 0-20 132 52 26 75 185 36 16 182 12 3.5
-- 2-IPBC 2 0-25 152 62 30 82 210 49 20 218 15 6.5
-- 3-IPBC 3 0-25 157 66 30 82 210 57 20 225 15 8.5
