Overhaul Balls Mc Kissick UB-500S Top Swiveling , With Self Locking Hook

Crosby

General:
The McKissick UB-500 overhaul balls fitted with top swivel and Shur-Lock self locking eye hook.

Features:

  • The top swivel design on the UB500 assures the ball remains stationary if the wire rope spins.
  • The swivel incorporates a sealed roller thrust bearing together with a grease fitting for easy lubrication.
  • Each ball can be optional equipped with the new McKissick US422 wedge socket which can be easily adjusted to fit various sizes of wire rope by changing the wedge (ensure that correct wedge is used for selected wire rope size).
  • All hooks forged from Alloy steel.
  • RFID equipped.



  • Marking: CE-marked
  • Safety factor: 4:1
Overhaul Balls Mc Kissick UB-500S Top Swiveling , With Self Locking Hook
Overhaul ball S316A shurloc Hook
Select a row from the table below, then click the add to quote button

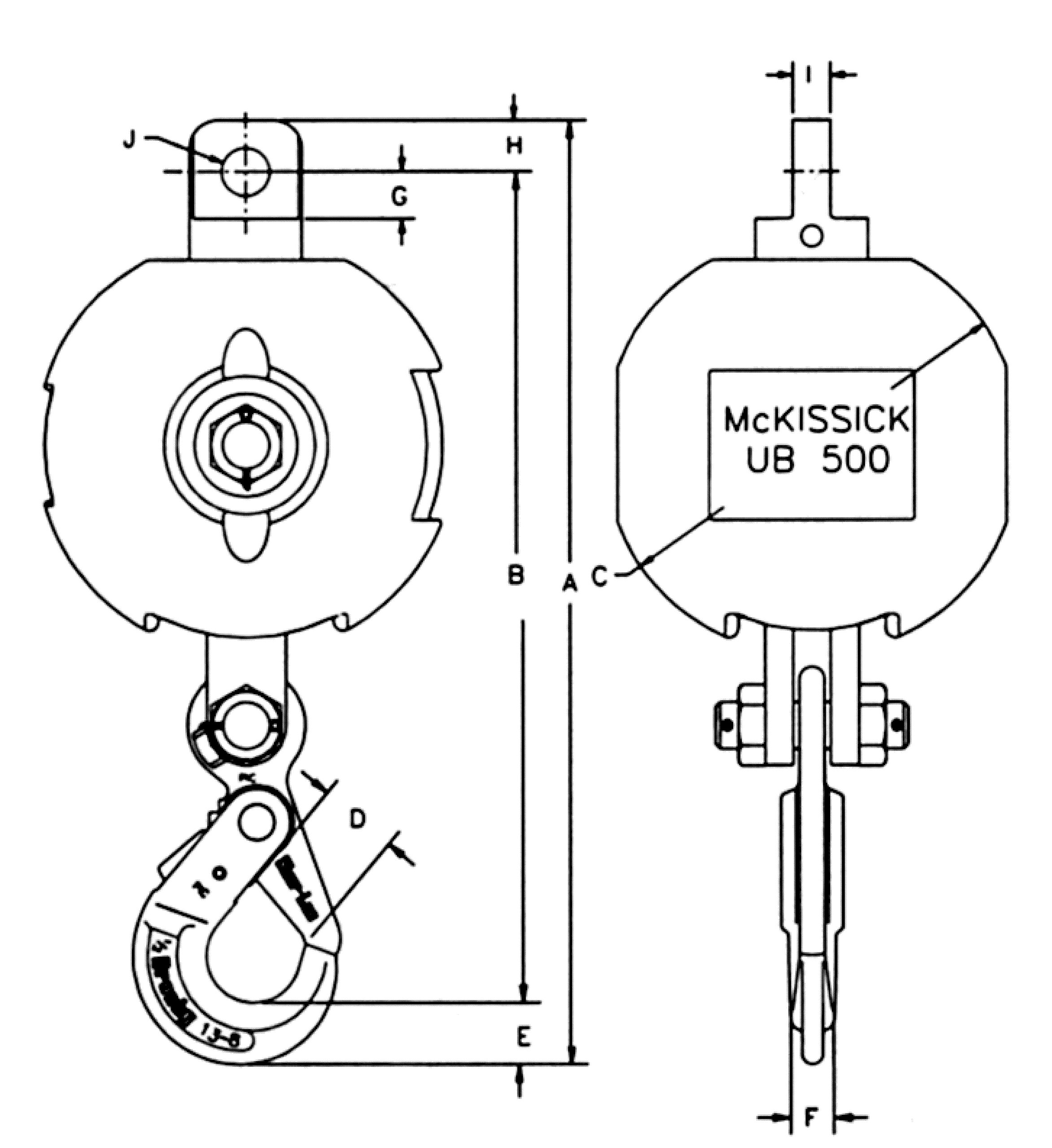

Part Code WLL
ton		 Model no. A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 G
mm		 H
mm		 I
mm		 J
mm		 Weight
kg		 CAD
-- 3,6 MB4T35S 525 462 191 46,5 29,2 23,9 47,8 35,1 22,4 33,3 26,3 -
-- 3,6 MB4T85S 547 484 235 46,5 29,2 23,9 47,8 35,1 22,4 33,3 46,3 -
-- 3,6 MB4T150S 573 509 286 46,5 29,2 23,9 47,8 35,1 22,4 33,3 73,5 -
-- 3,6 MB4T200S 582 519 318 46,5 29,2 23,9 47,8 35,1 22,4 33,3 91,2 -
-- 6,3 MB7T85S 607 541 235 53,5 42,2 29,5 47,8 35,1 22,4 33,3 49,4 -
-- 6,3 MB7T150S 642 56 286 53,5 42,2 29,5 47,8 35,1 22,4 33,3 77,1 -
-- 6,3 MB7T200S 650 575 318 53,5 42,2 29,5 47,8 35,1 22,4 33,3 95,3 -
-- 6,3 MB7T285S 675 600 353 53,5 42,2 29,5 47,8 35,1 22,4 33,3 146 -
-- 9 MB10T150S 793 691 286 63 52,5 38,1 70 51 31,8 45,2 98 -
-- 9 MB10T200S 803 700 318 63 52,5 38,1 70 51 31,8 45,2 118 -
-- 9 MB10T285S 827 724 353 63 52,5 38,1 70 51 31,8 45,2 166 -
-- 9 MB10T350S 841 738 381 63 52,5 38,1 70 51 31,8 45,2 183 -
-- 9 MB10T650S 879 776 456 63 52,5 38,1 70 51 31,8 45,2 326 -

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
