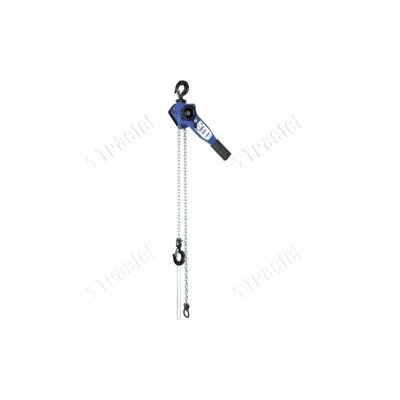

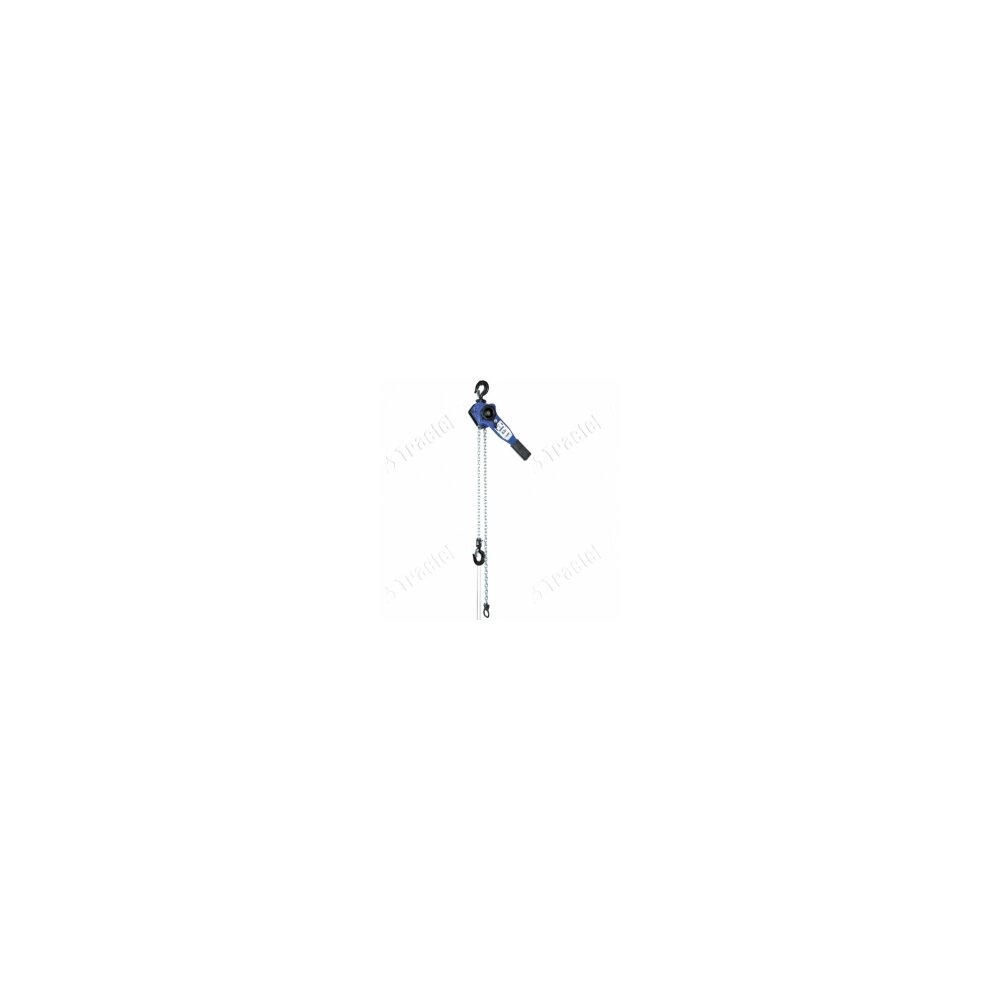

Bravo type hoists are manual lever hoists. They are used to lift and pull loads.

The product is very easy to install. For lifting, the hoists are usually attached to Corso clamps or trolleys.

Lifting, pulling, tensioning or positioning of a load using a Bravo lever hoist.

- Models from 250kg to 6000kg

- Robust design

- Adjustable lift

- Swivel hook with safety catch

- Hook with overload deformation indicator

- Automatic brake with double pawls

- Heavy duty bearings

- The chain length can be adjusted in the neutral position, i.e. without load.

- Option: load limiter

- Silver Chain

Select a row from the table below, then click the add to quote button
Art No WLL
Ton
Chain length (m) CAD
244089 0.25 1.5
35919 0.5 1.5
244029 0.75 1.5
244039 1 1.5
244049 1.5 1.5
244059 3 1.5
244069 6 1.5
244079 9 1.5
