Design: Screw pin anchor shackles meet the performance requirements of Federal Specification RR-C-271G Type IVA, Grade A, Class 2, except for those provisions required of the contractor.
- Material: Forged - Quenched and Tempered, with alloy pins.
- Marking: According to standard, CE-marked
- Temperature range: -40° C to 204° C
- Finish: Hot Dip galvanized or self colored.
- Standard: EN 13889, US. FED. SPEC. RR-C-271F
- Safety factor: 6:1
- Grade: 6

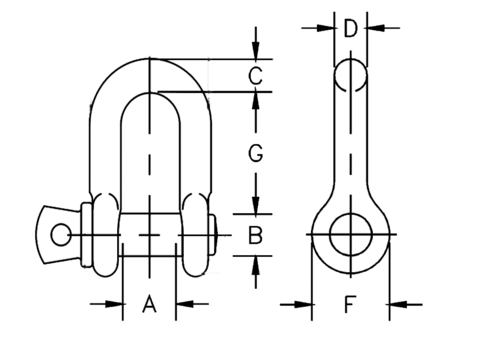

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
To download CAD files, you must provide a valid e-mail address
