Crosby

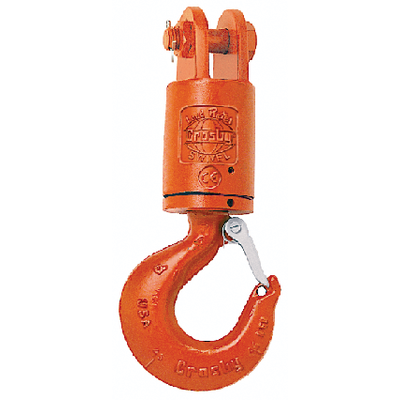

Design: Swivel with jaw and hook equipped with tapered roller thrust bearing.

Features:

  • Suitable for frequent rotation under load.
  • All swivels individually Proof Tested to 2 times the Working Load Limit.
  • Pressure lube fitting provided
  • All hooks furnished with latches
  • All jaws complete with bolts, nuts and cotter pins.
  • Other types and capacities up to 1250t available on demand.
  • Marking: CE-marked
  • Note: Always check before use if your steel wire rope is suitable for use with a swivel.
  • Warning: Not to be used on demolition- (wrecking-) balls!
  • Safety factor: 5:1
Select a row from the table below, then click the add to quote button

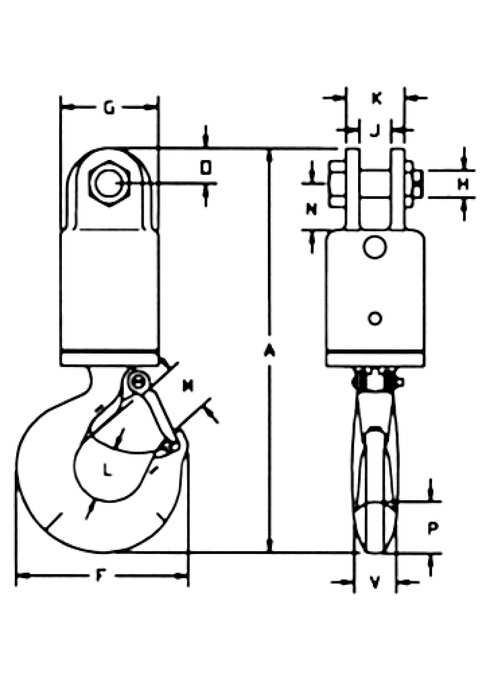

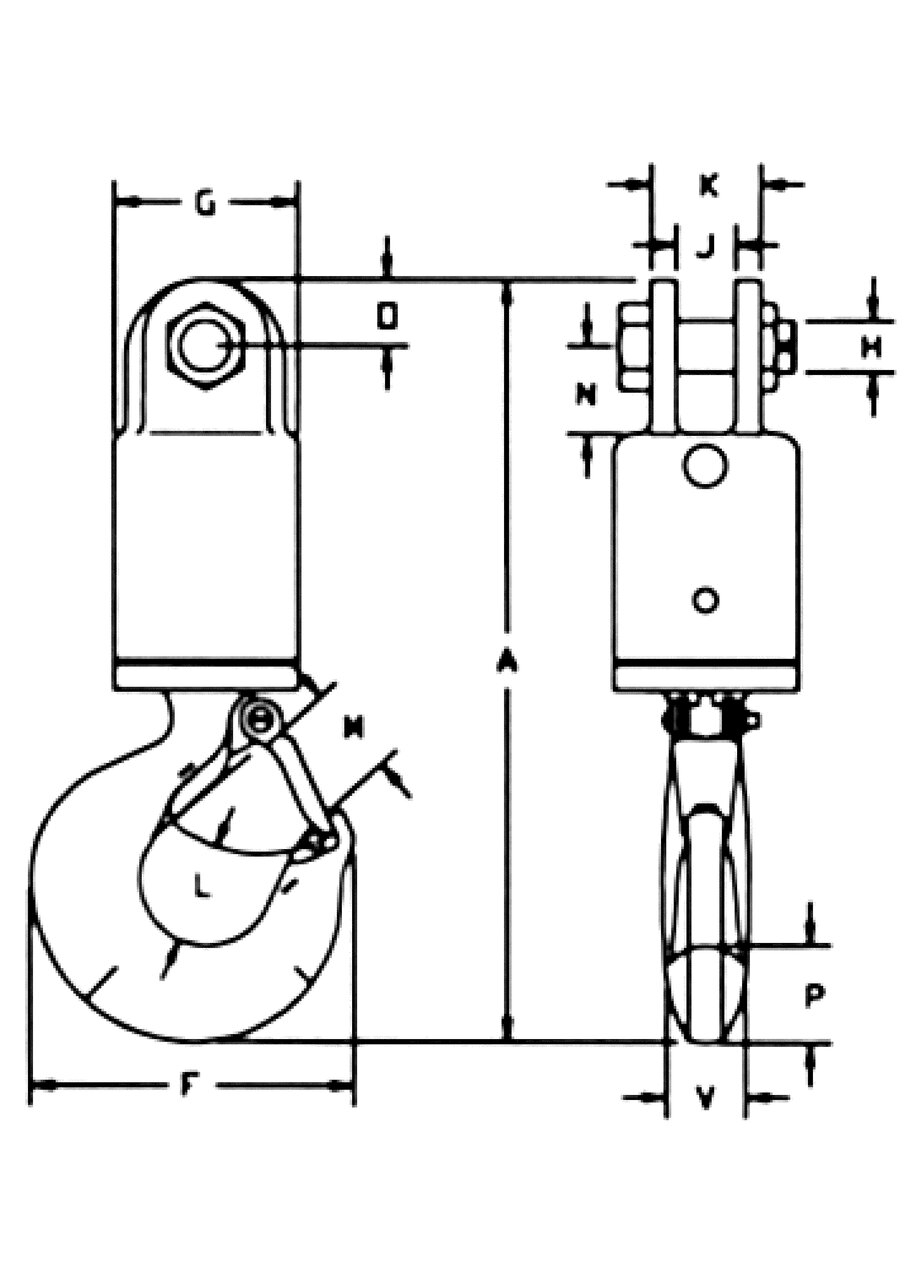

Part Code WLL
ton
Rope Ø
mm
Swivel No A
mm
F
mm
G
mm
H
mm
J
mm
K
mm
L
mm
M
mm
N
mm
O
mm
P
mm
V
mm
Weight
kg
CAD
-- 3 13 3-S-1 291 123 70,0 19,1 22,4 41,1 38,9 35,8 33,3 25,4 36,6 28,4 4,45
-- 5 16 5-S-1 339 160 76,0 22,4 25,4 57,0 49,3 42,9 41,1 28,4 46,0 36,6 7,04 -
-- 8,5 19 8-S-1 418 192 102 25,4 39,5 71,5 62,5 56,5 54,0 35,1 57,0 41,1 13,3 -
-- 10 22 10-S-1 502 212 114 38,1 44,5 86,0 66,0 61,0 89,0 44,5 66,0 49,3 21,2 -
-- 15 26 15-S-1 565 263 127 38,1 44,5 86,0 71,5 81,0 89,0 44,5 76,0 60,5 33,5 -
-- 25 25-S-1 680 346 152 51,0 51,0 117 87,5 92,0 93,5 60,5 93,0 76,0 64 -
-- 35 35-S-1 760 357 165 51,0 51,0 117 98,5 95,5 93,5 60,5 116 81,0 100 -
-- 45 45-S-1 891 392 178 57,0 63,5 127 121 108 102 76,0 129 82,5 114 -
