Open Wedge Socket G-6413

Green Pin


Standard: generally to EN 13411-6

  • Material: high tensile steel
  • Temperature range: -20°C up to +200°C
  • Finish: hot dipped galvanized

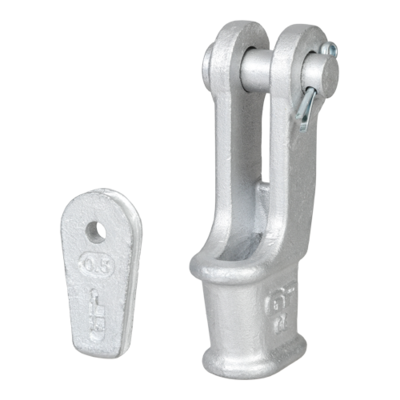

    Product Image 1

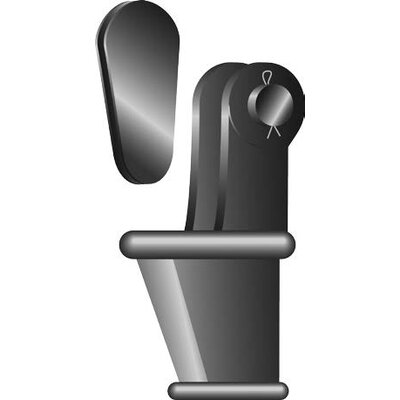

    Product Image 2
    Select a row from the table below, then click the add to quote button

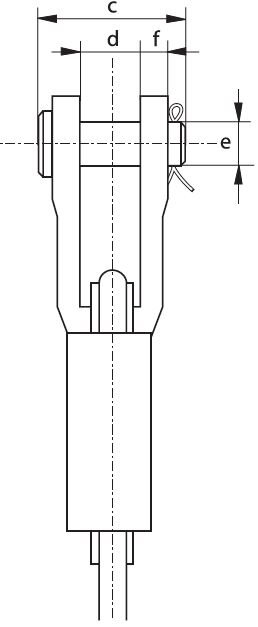

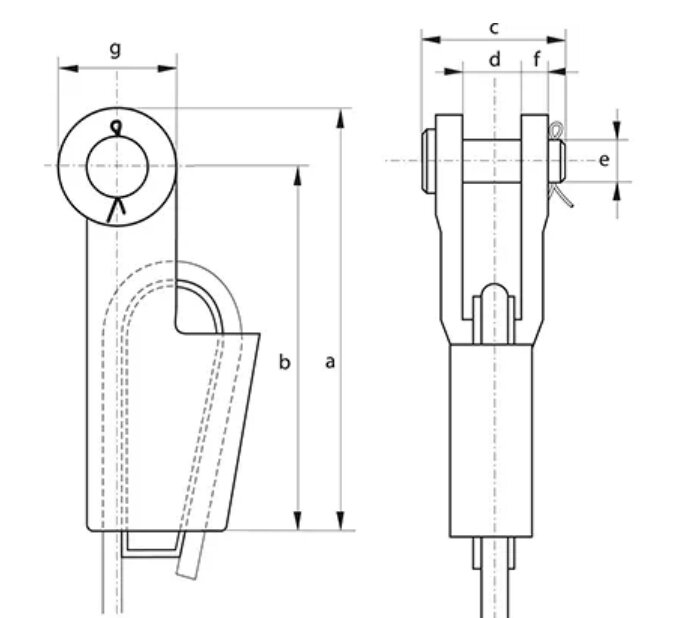

    Part Code Rope diameter
    mm    		 Finish length a width inside d CAD
    -- 7-8 Galvanized 128 18 -
    -- 9-10 Galvanized 165 20,5 -
    -- 11-13 Galvanized 175 25 -
    -- 14-16 Galvanized 211 31 -
    -- 18-19 Galvanized 252 38 -
    -- 20-22 Galvanized 288 44 -
    -- 24-26 Galvanized 329 51 -
    -- 27-29 Galvanized 375 57 -
    -- 30-32 Galvanized 423 63 -
    -- 34-36 Galvanized 474 69 -
    -- 37-39 Galvanized 527 76 -
    -- 40-42 Galvanized 580 76 -
    -- 43-48 Galvanized 650 89 -
    -- 49-52 Galvanized 745 101 -
    -- 54-58 Galvanized 785 114 -
    -- 60-68 Galvanized 970 127 -
    -- 72-76 Galvanized 1 150 146 -
    -- 81-86 Galvanized 1 252 159 -

    Download CAD

    Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

    To download CAD files, you must provide a valid e-mail address

    Fetching the CAD file...
