Crosby

Standard: Fed Spec RR-S-550D TYPE A.

  • Features: Spelter socket terminations have an efficiency rating of 100%, based on the catalogue strength of wire rope.
  • Material: Forged steel sockets through 11/2”, cast alloy steel 1-5/8” through 4”.
  • Marking: ID code and Manufacturer's symbol.
  • Finish: Galvanised.
  • Safety factor: 5:1

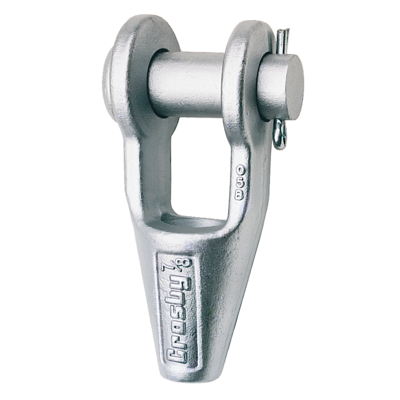

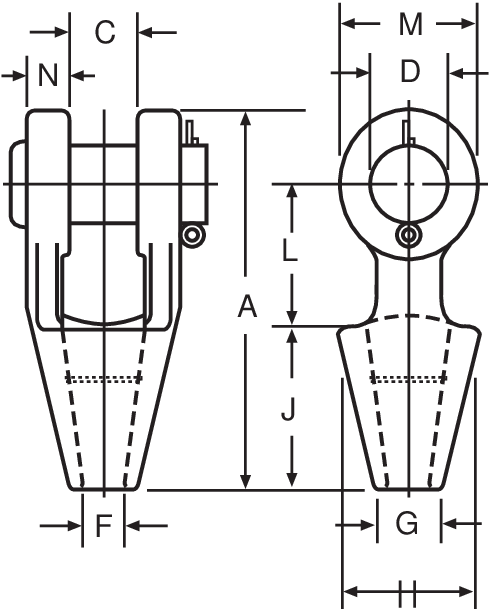

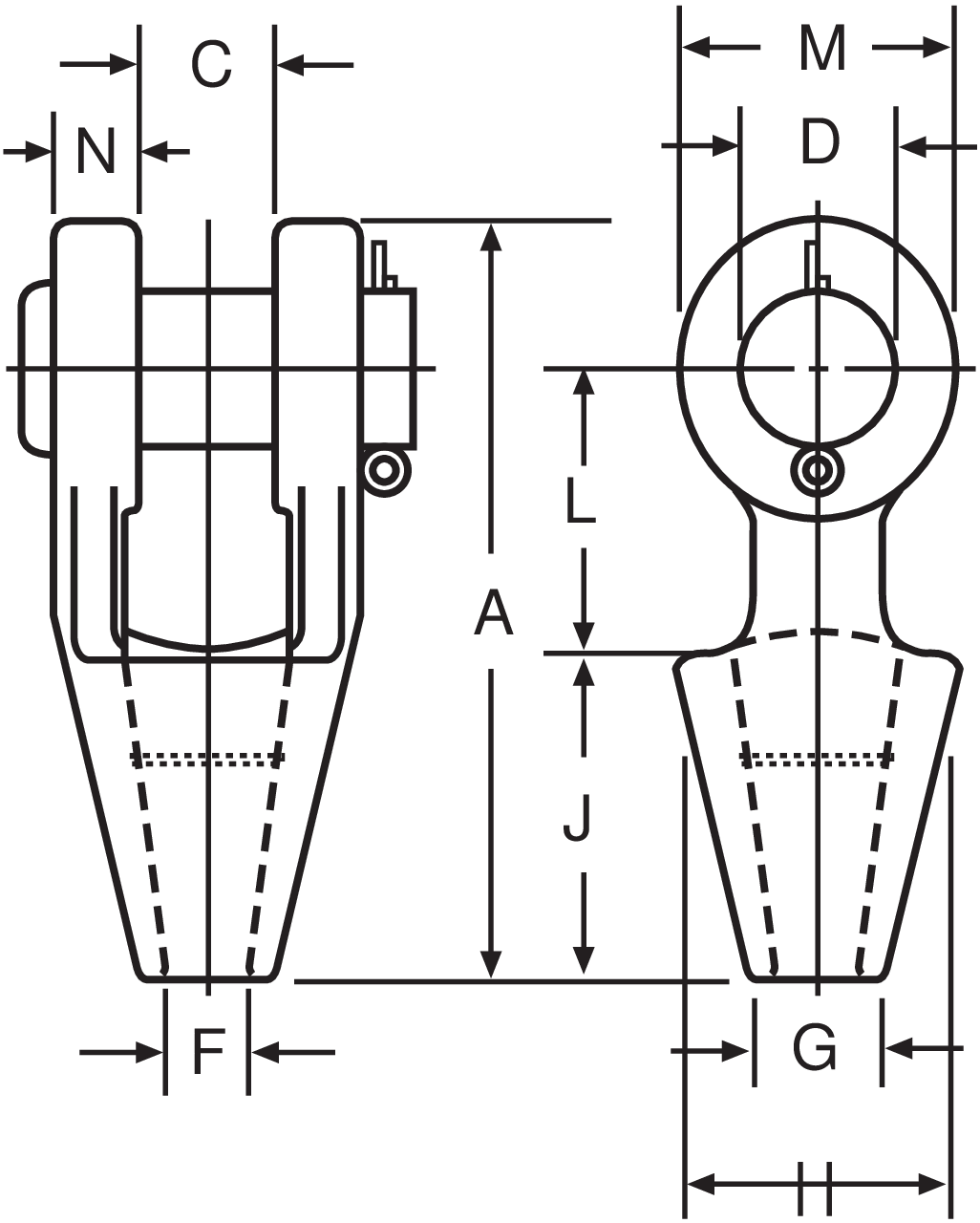

Crosby G416 SPELTER SOCKET
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
WLL
ton
Rope dia.
inch
A
mm
C
mm
D
mm
F
mm
G
mm
H
mm
J
mm
L
mm
M
mm
N
mm
Weight
kg
CAD
-- 6-7 4,5 1/4 116 19,1 17,5 9,65 17,5 39,6 57 39,6 33,3 9,1 0,5 -
-- 8-10 12 5/16 - 3/8 123 20,6 20,6 12,7 20,6 42,9 57 44,5 38,1 11,2 0,59 -
-- 11-13 20 7/16 - 1/2 141 25,4 25,4 14,2 23,9 47,8 63,5 51 47,8 12,7 1,02 -
-- 14-16 27 9/16 - 5/8 171 31,8 30,2 17,5 28,7 57 76 63,5 57 14,2 1,863 -
-- 18 43 3/4 202 38,1 35,1 20,6 31,8 66,5 89 76 66,5 15,7 2,64 -
-- 20-22 55 7/8 235 44,5 41,4 23,9 38,1 82,5 102 89 79,5 20,3 4,438 -
-- 24-26 78 1 268 51 51 28,7 44,5 95,5 114 102 95,5 22,4 7,03 -
-- 28-30 92 1 1/8 300 57 57 31,8 51 105 127 117 105 25,4 9,75 -
-- 32-35 136 1 1/4 - 1 3/8 335 63,5 63,5 38,1 57 121 140 127 121 28,7 14,1 -
-- 38 170 1 1/2 384 76 70 41,4 70 133 152 152 137 30,2 21,4 -
-- 40-42 188 † 1 5/8 413 76 76 44,5 76 140 165 165 146 33,3 24,9 -
-- 44-48 268 † 1 3/4 - 1 7/8 464 89 89 51 79,5 162 191 178 165 39,6 37,2 -
-- 50-54 291 † 2 - 2 1/8 546 102 95,5 57,2 95,5 187 216 229 178 46 59 -
-- 56-60 360 † 2 1/4 - 2 3/8 597 114 108 63,5 102 210 229 254 197 54 76 -
-- 64-67 424 † 2 1/2 - 2 5/8 648 127 121 73 114 235 248 274 216 60,5 114 -
-- 70-73 511 † 2 3/4 - 2 7/8 692 133 127 79 124 267 279 279 229 73 143 -
-- 75-80 563 † 3 - 3 1/8 737 146 133 86 133 282 305 287 241 76 172 -
-- 82-86 722 † 3 1/4 - 3 3/8 784 159 140 92 146 302 330 300 254 79 197 -
-- 88-92 779 † 3 1/2 - 3 5/8 845 171 152 98,5 165 314 356 318 274 82,5 255 -
-- 94-102 875 † 3 3/4 - 4 921 191 178 108 184 346 381 343 318 89 355 -
