Tractel

General: For lifting and pulling with unlimited length of wire rope. Works in any position: horisontal, vertical or angled. The wire rope tackle comes without wire rope or according to request.

  • Marking: Rate badge and CE marking.
  • Safety factor:  Tackle 5:1

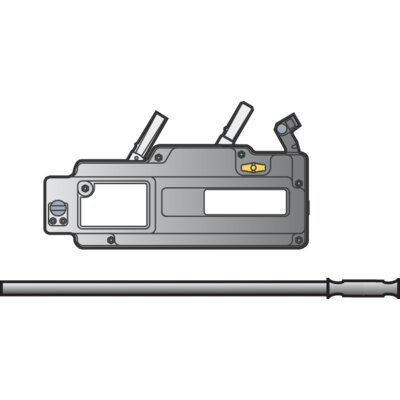

pully hoist_tirfor_alu_225mm

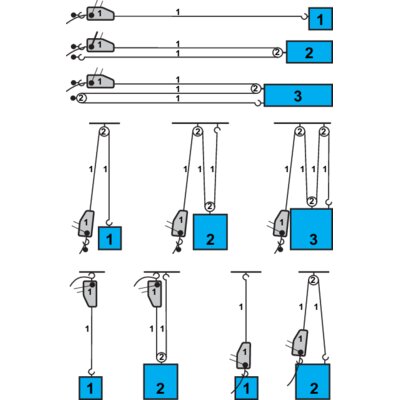

Schema_225mm
Select a row from the table below, then click the add to quote button
Art No Code Diameter
mm
WLL
Ton
Weight
kg
CAD
06.65T508 T508 8.3 0.8 7
06.65T516 T516 11.5 1.6 14
06.65T532 T532 16.3 3.2 24

Download CAD
