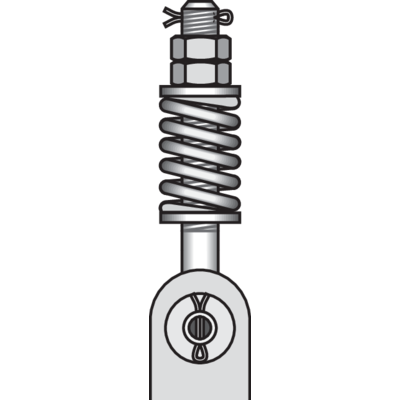

• Features: Wedge Suspension kit Type D with Eyebolt, Spring, nuts and split pin
  • Material: Galvanised Steel
  • Marking: According to standard
  • Finish: Galvanised
  • Standard: EN 13411-7
    DIN 15315 replaced by EN 13411-7

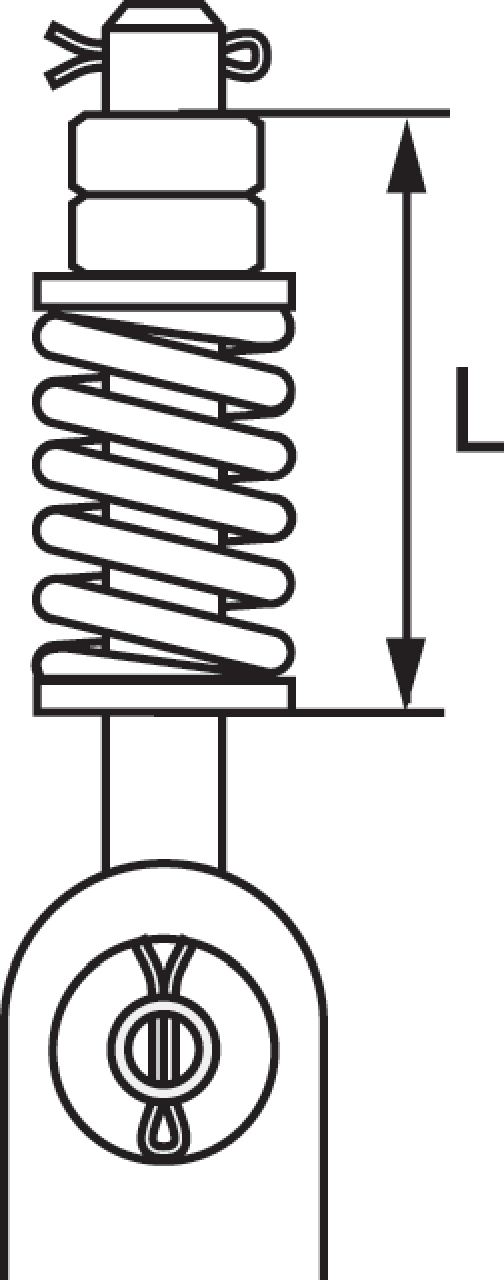

    Wedge socket 3050 type D - for lifting - measurements
    Wedge socket 3050 type D - for lifts measurements
    Select a row from the table below, then click the add to quote button
    Part Code Rope diameter
    mm
    L
    mm
    Weight
    kg
    -- 6-8 167 1,4
    -- 9-11 173 2,4
    -- 12-14 202 4,7
    -- 15-17 248 8,2
    -- 18-20 254 11
