Welded Master Link designed for 1 leg chain, wire rope and webbing slings.
At least 25% greater WLL than traditional Grade 8 products.
Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.

  • Material: Quenched and Tempered Alloy Steel
  • Marking: According to standard, CE-marked, Type, manufacturer ID, traceability.
  • Temperature range: -40° up to +200°C (without reduction in WLL).
  • Finish: Blue Painted
  • Standard: EN 1677-4
  • Safety factor: 4:1
  • Grade: 10
Product Picture 1
Product Picture 2
Select a row from the table below, then click the add to quote button

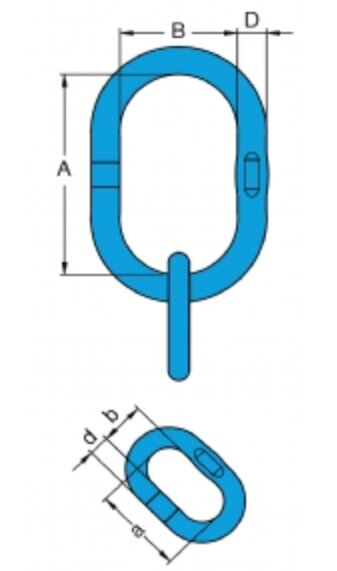

Part Code Code WLL
ton
WLL β 0-45°
ton
Used to single hook acc. to DIN 15401 No. Proof Load
kN
For grade 100 Chain 1-leg
mm
D
mm
A
mm
B
mm
d
mm
a
mm
b
mm
Weight
kg
11.02X-0081-22 ED-28 2.5 2,5 25 61 6,7,8 22 340 180 13 54 25 3.2
11.02X-0081-28 ED-22 4 4 25 98 10 28 340 180 16 70 34 5.4
