Powertex

Design: Forged according to. U.S. specification RR-C-271D Type IVA, Grade A, Class 2.
Not to be heat-treated.

  • Material: Forged alloy steel, supplied with alloy screw pin.
  • Marking: WLL, CE, size, grade, charge number and manufacturer ID.
  • Finish: Hot dip galvanized.
  • Safety factor: 6:1.
  • Grade: 6
201_e_225mm

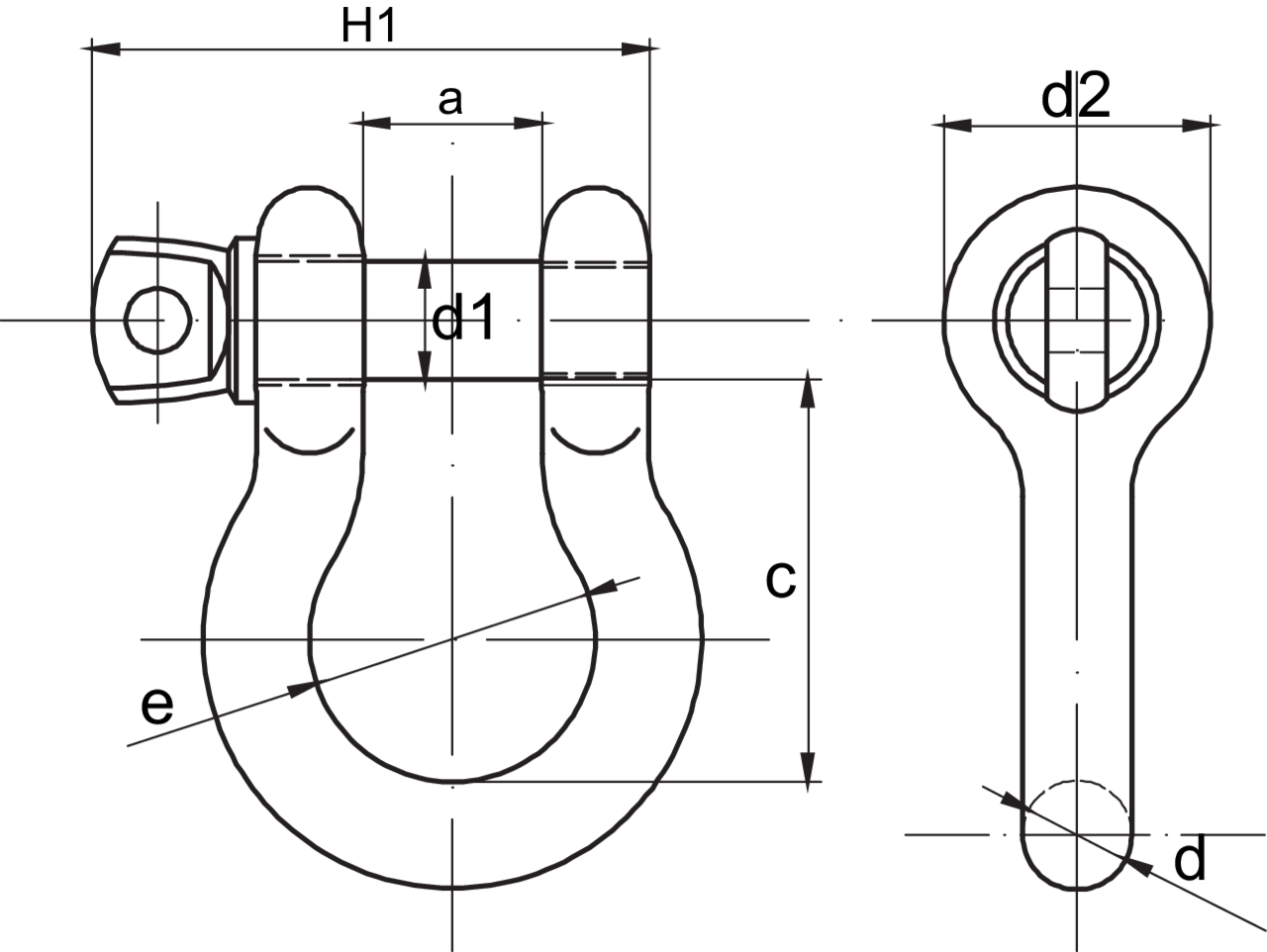

128715
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton
Nominalsize In. Pin Ø d1 (mm) a* (mm) c* (mm) d (mm) d2 e (mm) Weight
kg
CAD
05A4190 1331 0.33 3/16 6,3 10 22,6 5 14,5 15,5 0.026
05A4200 1332 0.5 1/4 8 13 29 6,5 17,5 20 0.048
05A4205 1333 0.75 5/16 9,5 13,5 31 8 21 21,5 0.082
05A4210 1334 1 3/8 11,2 17 36,5 10 25 26,2 0.15
05A4220 1335 1.5 7/16 12,7 18,5 42,9 11,3 27 29,5 0.2
05A4230 1336 2 1/2 15,8 20,6 47,75 12,7 30,5 33,3 0.3
05A4240 1337 3.25 5/8 18,6 27 60 16 40 43 0.65
05A4250 1338 4.75 3/4 22 32 71,5 19 48 51 1.01
05A4260 1339 6.5 7/8 25 37 84,5 22 54 58 1.5
05A4270 1340 8.5 1 28 43,5 96,25 26,5 60 68,5 2.25
05A4280 1341 9.5 1-1/8 32 48 109 29 68 75 3.25
05A4300 1342 12 1-1/4 35 53 120,5 32 76 84 4.45
05A4310 1343 13.5 1-3/8 38 59 134 35 84 94 5.95
05A4320 1344 17 1-1/2 42 62 148,5 38 92 99 7.72
05A4330 1345 25 1-3/4 50 75 178 45 106 128 12.64
05A4340 1346 35 2 55 84 197,5 52 122 148 18.72
05A4350 1347 55 2-1/2 70 107 269,5 66 145 186 37
11.31PBSP08500 85 3 80 130 325 76 165 205 58
*Tolerance: +/- 5%
