Crosby

Design: Hook-hook. End fittings are quenched and tempered, bodies heat treated by normalizing.

Proof: 2 x WLL.

Standard: According to Federal Specifications FF-T-791b.

  • Marking: Logo, size and type.
  • Finish: Hot dipped galvanized.
  • Note: Turnbuckles recommended for straight or in-line pull only.
  • Safety factor: 5:1
Crosby HG223
Select a row from the table below, then click the add to quote button
WLL
Ton

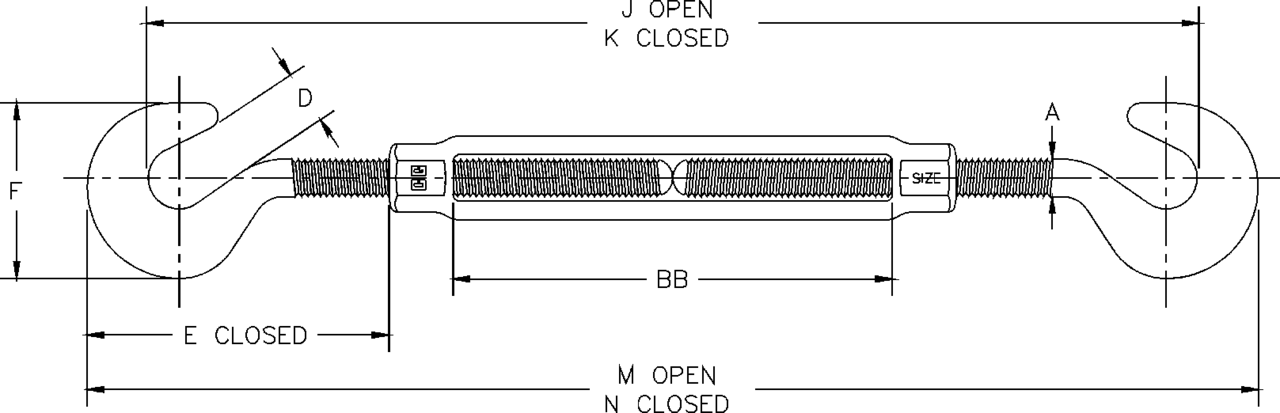

Thread dia. & take up (mm) Thread dia. & take up (inch) A (mm) D (mm) E closed F (mm) J open K closed M open N closed BB (mm) Weight
kg
CAD
0.18 6,35 x 102 1/4 x 4 6,35 11,2 42,3 32,3 249 187 310 208 103 0.15
0.32 7,94 x 114 5/16 x 4-1/2 7,94 12,7 50,7 38,1 294 218 358 243 116 0.24
0.45 9,53 x 152 3/8 x 6 9,53 14,2 57,8 44,7 387 270 453 301 155 0.38
0.68 12,7 x 152 1/2 x 6 12,7 16,5 89,7 57,9 457 335 527 375 153 0.85
0.68 12,7 x 305 1/2 x 12 12,7 16,5 89,2 57,9 769 495 839 535 314 1.26
1.02 15,9 x 152 5/8 x 6 15,9 22,9 108 71,4 495 368 572 419 153 1.46
1.02 15,9 x 305 5/8 x 12 15,9 22,9 107 71,4 809 529 885 580 315 2.08
1.36 19,1 x 152 3/4 x 6 19,1 24,9 129 84,6 538 406 620 467 156 1.91
1.36 19,1 x 305 3/4 x 12 19,1 24,9 128 84,6 853 568 935 630 320 3.14
1.36 19,1 x 457 3/4 x 18 19,1 24,9 129 84,6 1,158 721 1,240 782 471 3.92
1.81 22,2 x 305 7/8 x 12 22,2 28,7 148 96,0 886 597 972 667 309 4.47
2.27 25,4 x 305 1 x 12 25,4 31,8 167 108 929 637 1,019 714 309 6.7
