Crosby


Due to the special design of these clamps, they may also be utilized perpendicularly underneath a spreader beam.
The IPHSZ clamps are based on the IPHTONZ model but feature an extra-large jaw opening.
Design:
Material:
Marking:
Safety Factor:
4:1
Finish:
Standard:

  • Features: IPHTONZ clamps are suitable for the transport of steel plates and construction elements in the horizontal position.
    iptonz
    515721

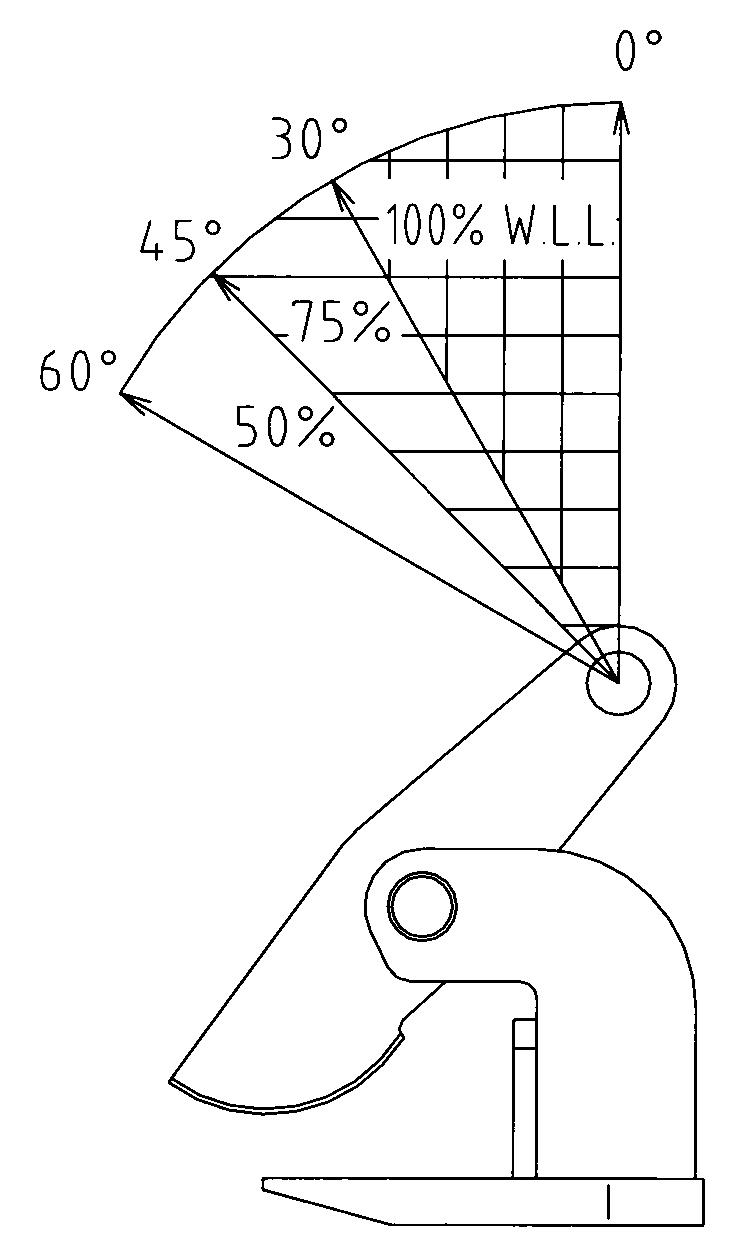

    515720
    Select a row from the table below, then click the add to quote button
    Part Code WLL
    ton
    Jaw width
    mm
    Model Weight
    kg
    CAD
    -- 0,75 0-30 0,75 IPHTONZ 4 -
    -- 1,5 0-60 1,5 IPHTONZ 9 -
    -- 3 0-60 3 IPHTONZ 14 -
    -- 3 0-100 3 IPHSZ 22 -
    -- 4,5 0-60 4,5 IPHTONZ 20 -
    -- 6 0-60 6 IPHTONZ 25 -
    -- 6 0-100 6 IPHSZ 36,4 -
    -- 9 0-60 9 IPHTONZ 31 -
    -- 9 0-100 9 IPHSZ 49,2 -
    -- 12 0-60 12 IPHTONZ 41 -
    -- 12 0-100 12 IPHSZ 62,8 -

    Download CAD

    Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
