General:

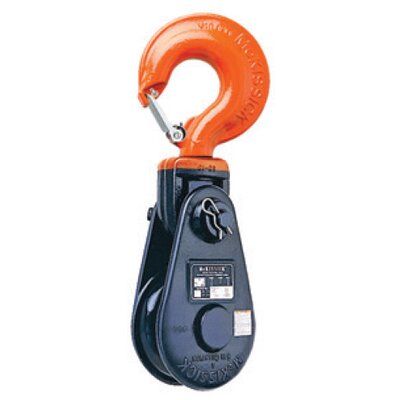

The McKissick snatch block 418 Light Champion from Crosby is a snatch block fitted with a hook. Available from WLL 2  up to 15 T.
Can be delivered with bronze bushing (BB) and from WLL 8 T also with roller bearing (RB).

Features:

  • Bolt for opening feature is retained, to ensure no lost bolts.
  • Opening feature permits easy insertion of rope without reeving, or while the block is suspended.
  • Center pin equipped with pressure lube fitting.
  • All sizes feature sheave grooves suited for a range of wire line diameters.
  • Meets or exceeds all requirements of ASME B30.26 including identification ductility, design factor, proof load and temperature requirements.
  • Meet other critical performance requirements including fatigue life and material traceability, not addressed by ASME B30.26.
  • Material: Forged steel.
  • Marking: CE-marked
  • Safety factor: 4:1
Brand logo
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Sheave dia.
mm
Bearing Code Wire Rope Size
mm

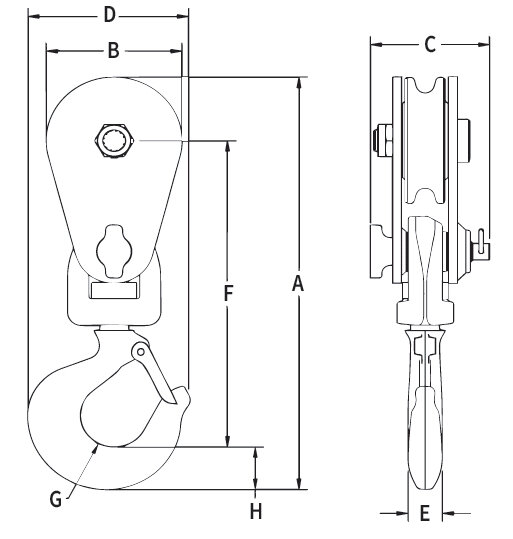

A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
Weight
kg
CAD
-- 418 2 76 BB 8-10 247 47 67 91 19 164 19 25 2,3 -
-- 418 4 114 BB 10-13 359 108 79 133 25 257 24 47 5,4 -
-- 418 8 152 BB 16-19 481 152 106 173 40 344 33 61 12,2 -
-- 418 8 152 RB 16-19 481 152 106 173 40 344 33 61 12,2 -
-- 418 8 203 BB 16-19 534 206 106 173 40 369 33 61 15 -
-- 418 8 203 RB 16-19 534 206 106 173 40 369 33 61 15 -
-- 418 8 254 BB 16-19 586 257 106 173 40 396 33 61 18,6 -
-- 418 8 254 RB 16-19 586 257 106 173 40 396 33 61 18,6 -
-- 418 8 305 BB 16-19 658 308 106 173 40 442 33 61 21,6 -
-- 418 8 305 RB 16-19 658 308 106 173 40 442 33 61 21,6 -
-- 418 8 356 BB 16-19 696 359 106 173 40 455 33 61 24,9 -
-- 418 8 356 RB 16-19 696 359 106 173 40 455 33 61 24,9 -
-- 418 15 406 BB 19-22 819 409 129 212 45 540 37 74 59 -
-- 418 15 406 RB 19-22 851 460 129 212 45 546 38 74 59 -
-- 418 15 457 BB 22-26 851 460 129 212 45 546 38 74 68 -
-- 418 15 457 RB 22-26 851 460 129 212 45 546 38 74 68 -

Bearing codes:
BB = Bronze Bushing
RB = Roller Bearing
