Very convenient for loading and unloading of horizontal machine centres and lathes
Magnet is adjustable to suit a range of diameters and widths
Lifting arm can be retrofitted to existing NEO magnets
The advantages of magnetic handling
Considerable savings in time and money
One man operation
More effective use of floor space
No workpiece damage
Improved labour conditions
Lift magnet programme
Permanent and electro-permanent lift magnets standard up to 5000kg capacity for flat material
Battery lift magnets up to 5000kg capacity for flat and 2200kg for round material
Electro (mains powered) lifting magnets for plate, rounds, structurals and bundles

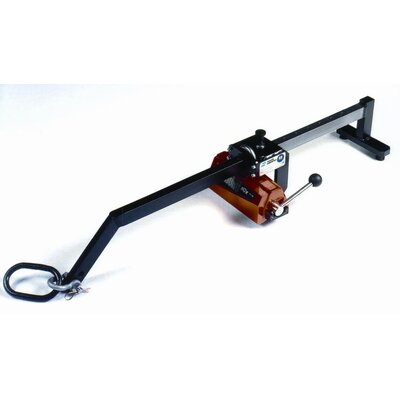

  • Features: Magnet provided with lifting arm for turning workpieces through 90°
  • Safety factor: 4:1

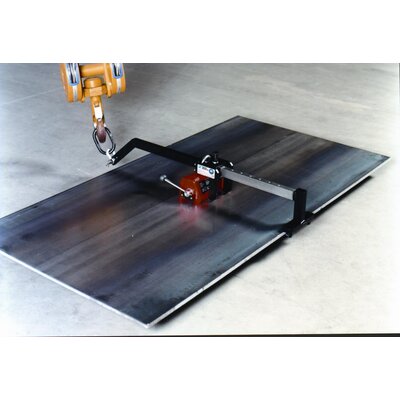

NEO-HV-3 inset
New Picture
Select a row from the table below, then click the add to quote button
Part Code Code Height
nominal lifting capacity (flat material) minimum thickness
Length x Width
Tested break away force
Workpiece width
-- NEO-HV 250 255 250 4 958 x 210 800 300-800 27
-- NEA-HV 500 255 500 6 1158 x 275 1 600 300-1000 38

** Tested on a ground, 50mm thick, mild steel plate
* Nominal lift capacity includes a safety factor of at least 3 Capacity varies with workpiece material, thickness and surface quality
