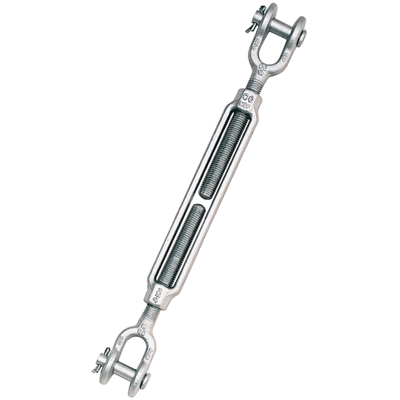

End fittings are quenched and tempered, bodies heat treated by normalizing.
Forged jaw ends are fitted with bolts and nuts for 6 mm through 16 mm, and pins and cotters on 19 mm through 70 mm sizes.
Modified UNJ thread on end fittings for improved fatigue properties.
Body has UNC threads.
Standard: According to Federal Specifications FF-T-791b.
- Marking: Logo, size and type.
- Finish: Hot dipped galvanized.
- Note: Turnbuckles recommended for straight or in-line pull only.
- Safety factor: 5:1
