General: Universal for lifting in any direction. The IPU10 vertical lifting clamp is used for the lifting, turning, moving or vertical transfer of sheet, plates, or fabrications from horizontal to vertical and down to horizontal (180°) as needed. The hinged hoisting eye allows for the clamp to place and lift the load from any direction, or with a multiple leg sling without sideloading the clamp.
Wide variety of jaw openings from 0 to 155 mm. Available in a variety of styles:
• IPU10 - Standard clamp for materials with a surface hardness to 37Rc (345 HB)
• IPU10J - Larger jaw opening.
• IPU10S - For use with Stainless Steel material.
• IPU10H - For use with materials with a surface hardness to 47Rc (450 HB).
• Full 180° turning range for material transfer, turning or moving.
• Lock open, lock closed ability with latch for pretension on material and then release of material.
• Optional IP-5000 Stinger assembly available (see page 382). Allows for easy connection between the clamp and hoist hook.



  • Marking: Logo, WLL, jaw capacity, serial number, proof load test date and CE-marking.
  • Finish: Painted.
  • Note: Min load is 10% of WLL.
IPU10

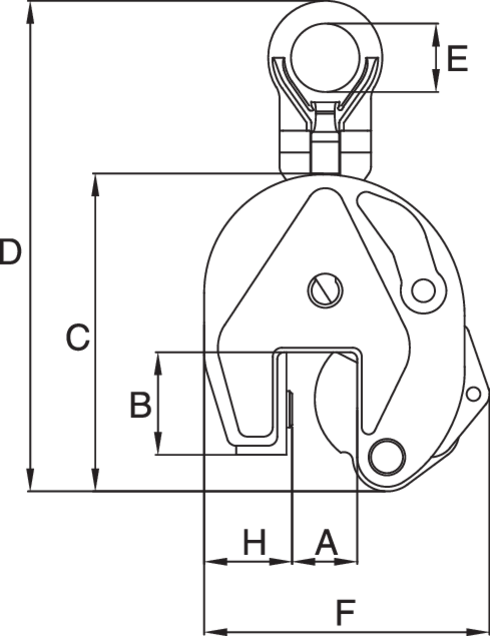

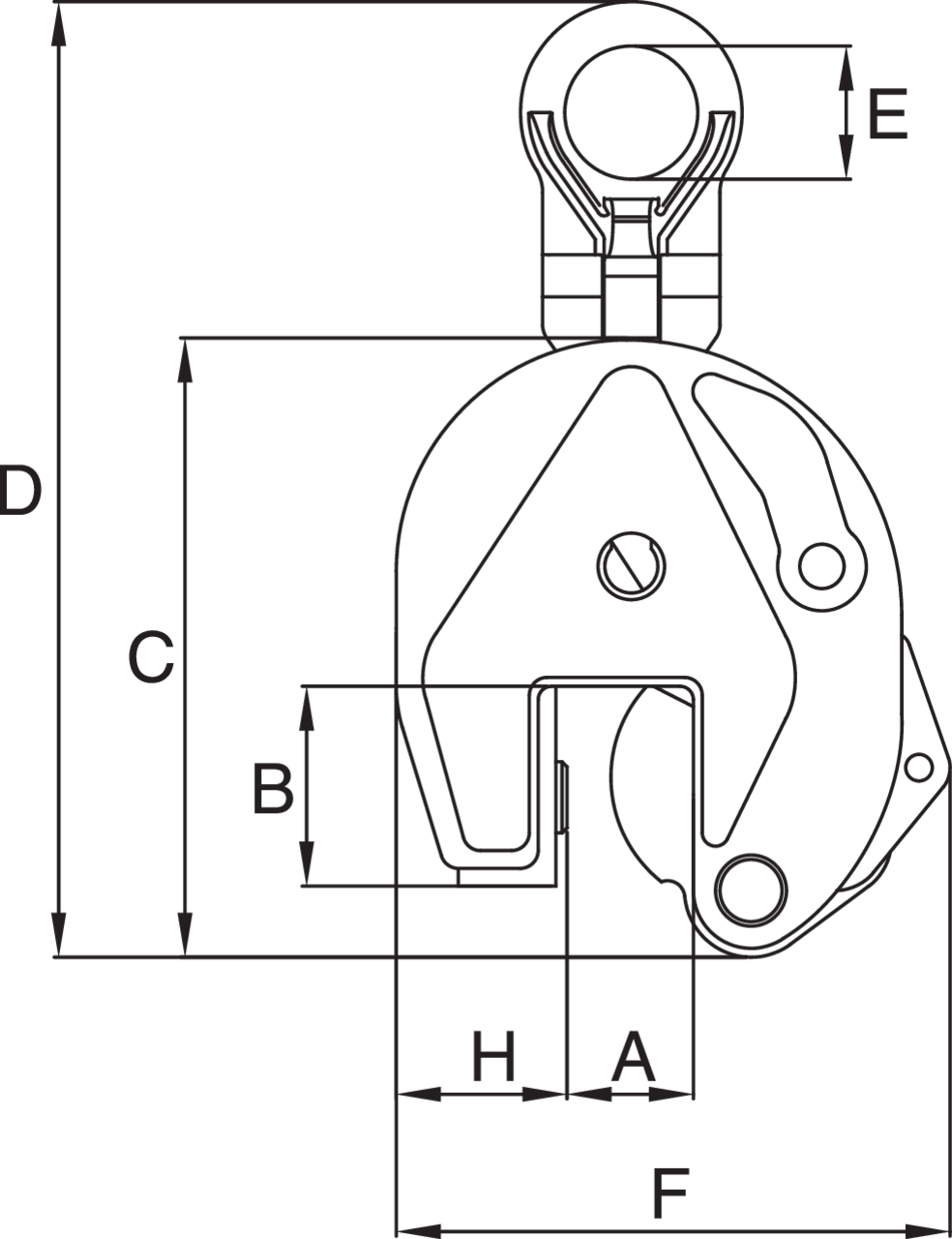

IPU10_fig5 IPU10_fig4
Select a row from the table below, then click the add to quote button
Art No WLL
Ton
Jaw A B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) K (mm) J (mm) Type Weight
kg
CAD
16.012701675 0.5 0 - 16 44 128 228 40 115 41 28 11 IPU 10 0,5 1.9
16.012702275 0.5 0 - 16 44 128 228 40 115 41 28 11 IPU10/S 0,5 1.9
16.012702175 0.5 0 - 16 44 128 228 40 115 41 28 11 IPU10/H 0,5 1.9
16.012702263 1 0 - 20 45 139 222 40 126 41 38 11 IPU10/S 1 2.1
16.012701663 1 0 - 20 45 139 222 40 126 41 38 11 IPU 10 1 2.4
16.012702177 1 0 - 35 78 201 372 70 190 61 55 16 IPU10/H 1 7.6
16.012702277 2 0 - 35 78 201 372 70 190 61 55 16 IPU10/S 2 7.6
16.012701677 2 0 - 35 78 201 372 70 190 61 55 16 IPU 10 2 8.5
16.012702165 2 0 - 40 100 253 445 75 225 78 60 20 IPU10/H 2 14.8
16.012701665 3 0 - 40 100 253 445 75 225 78 60 20 IPU 10 3 14.8
16.012702265 3 0 - 40 100 253 445 75 225 78 60 20 IPU10/S 3 14.8
16.012702167 3 0 - 40 100 253 445 75 232 82 65 20 IPU10/H 3 16
16.012701667 4.5 0 - 40 100 253 445 75 232 82 65 20 IPU 10 4,5 16
16.012702267 4.5 0 - 40 100 253 445 75 232 82 65 20 IPU10/S 4,5 16
16.012702169 4.5 0 - 50 126 302 525 80 292 84 95 20 44 IPU10/H 4,5 24
16.012702269 6 0 - 50 126 302 525 80 292 84 95 20 44 IPU10/S 6 24
16.012701669 6 0 - 50 126 302 525 80 292 84 95 20 44 IPU 10 6 24
16.012702171 6 0 - 50 126 325 557 80 310 92 105 20 44 IPU10/H 6 29.5
16.012702469 6 50 - 100 126 302 525 80 342 84 95 20 44 IPU 10/J 6 30.5
16.012702271 9 0 - 50 126 325 557 80 310 92 105 20 44 IPU10/S 9 29.5
16.012701671 9 0 - 50 126 325 557 80 310 92 105 20 44 IPU 10 9 29.5
16.012701673 9 50 - 100 126 325 562 80 360 92 105 20 44 IPU 10/J 9 30.5
16.012702279 12 0 - 54 160 391 623 80 331 117 137 25 41 IPU10/S 12 30.5
16.012701679 12 0 - 54 160 391 623 80 331 117 137 25 41 IPU 10 12 57
16.012701681 12 54 - 108 178 439 673 80 415 117 137 25 41 IPU 10/J 12 59
16.012701683 16 5 - 64 178 465 734 88 397 119 153 25 45 IPU 10 16 72
16.012701685 16 64 - 128 208 521 790 88 472 119 161 25 45 IPU 10/J 16 85
16.012701687 22.5 5 - 80 222 554 855 110 470 136 186 25 49 IPU 10 22,5 127
16.012701689 22.5 80 - 155 253 628 930 110 575 136 196 25 49 IPU 10/J 22,5 130
16.012701691 30 5 - 80 222 545 860 110 470 152 186 30 54 IPU 10 30 153
16.012701693 30 80 - 155 250 620 935 110 565 152 196 30 54 IPU 10/J 30 165
