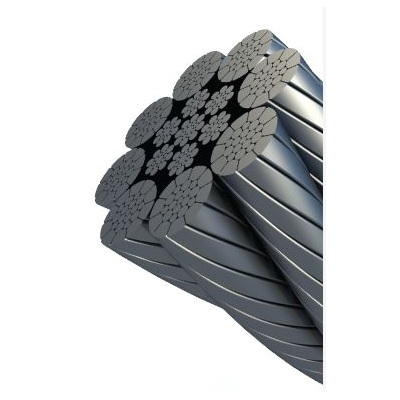

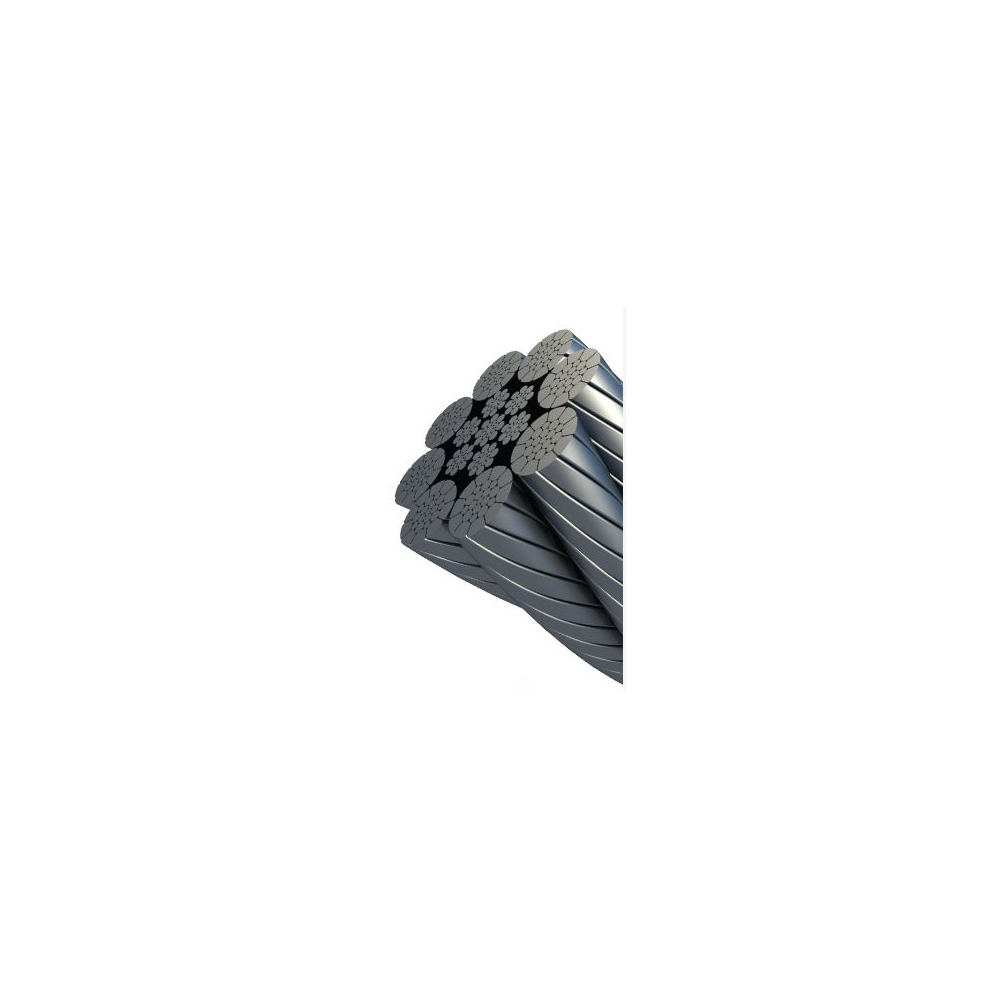

Wire rope Dyform 8
Product information
Superior bending fatigue life when compared with other conventional eight strand ropes.
Excellent resistance to crushing and abrasion particularly on multi layer coiling resulting from the Dyform strands.
Reduced elongation results from increased steel content and the Dyform process.
Optional plastic impregnation to further extend fatigue life, improve structural stability and resistance to corrosion.
Standard: EN 12385-4
ISO 4309 Rope Category No: 10-17mm RCN.04, 18-34mm RCN.09, 36-50mm RCN.11
- Features: High breaking force.
- Material: High Carbon Steel
- Finish: Galvanised or Ungalvanised
- Fill factor: 0.68
- RCN: 04
Product FAQ
What surface finish and tensile strength does this steel wire rope have?
This steel wire rope has a Bright, Galvanized and is manufactured with a tensile strength of 1960 N/mm².A bright (uncoated) finish has no corrosion protection and is therefore primarily used in dry, indoor, or controlled environments. Bright wire ropes are generally selected for cost reasons. The galvanized coating provides corrosion protection through a zinc layer, making the rope suitable for outdoor use and humid operating conditions.
Does this steel wire rope have any special design or performance features?
This steel wire rope is compacted, resulting in a smoother surface, higher breaking load, and improved wear resistance compared to standard wire rope constructions.

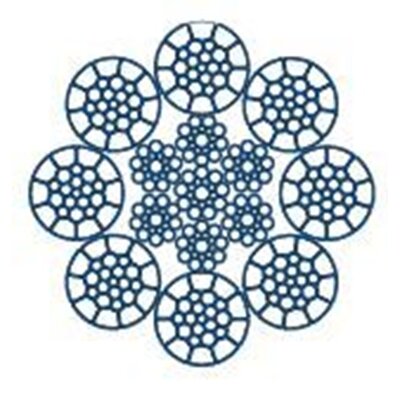

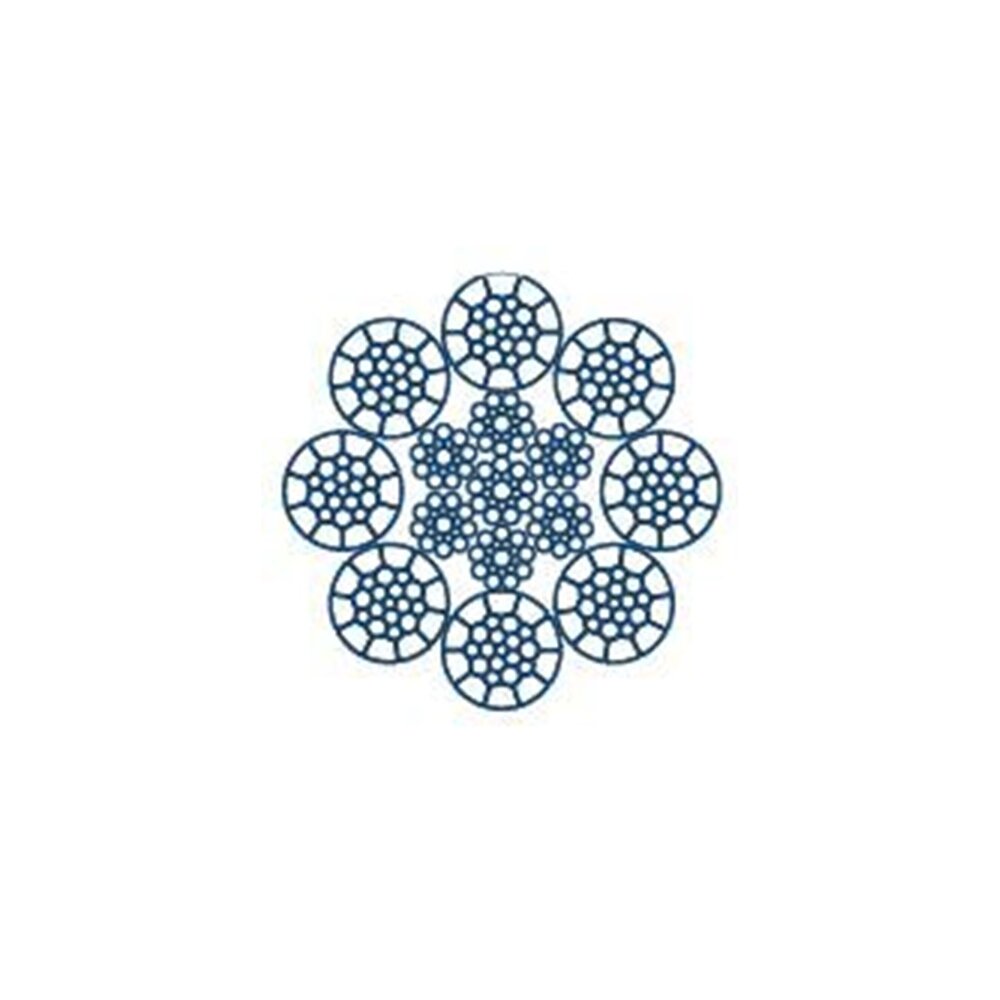

What is the construction, core type, and lay of this steel wire rope?
This steel wire rope is constructed with 8 strands.
It is manufactured with a steel core, offering higher structural stability, improved resistance to crushing, and reliable performance under heavy loads and multi-layer winding conditions.
It is manufactured with an ordinary right-hand lay (sZ), providing a balanced combination of flexibility, wear resistance, and stable handling. This is the most commonly used lay for general It is manufactured with an ordinary left-hand lay (zS), offering similar performance characteristics to right-hand ordinary lay but designed for specific directional or equipment requirement It is manufactured with a right-hand lang lay (zZ), offering increased abrasion resistance and extended service life in applications where surface wear is a critical factor. It is manufactured with a left-hand lang lay (sS), providing enhanced wear resistance and longer service life where high surface durability is required.
