When fitting the rope to the socket as much slack as possible should be removed from the system in order to maximise the available eye bolt adjustment. The load should then be applied to the assembly and the wedge observed to seat correctly in the socket body.A single DIN 1142 wire rope grip should then be fitted across the two parts of rope near to the socket body. This, along with the split pin fitted into the wedge, ensures that the wedge cannot become displaced in a slack rope condition.

  • Features: High Quality Lift Suspension Wedge Socket
  • Material: Steel
  • Marking: According to standard, Size
  • Finish: Galvanized
  • Standard: EN 13411-7
    DIN 15315 replaced by EN 13411-7
  • Safety factor: 10:1

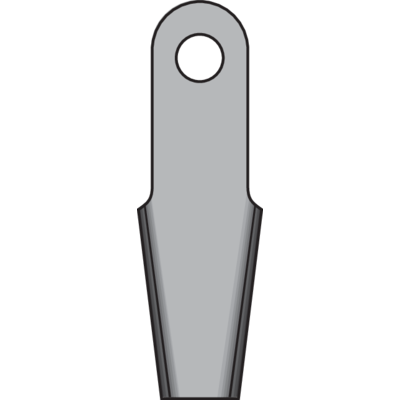

Wedge Socket 3050 housing

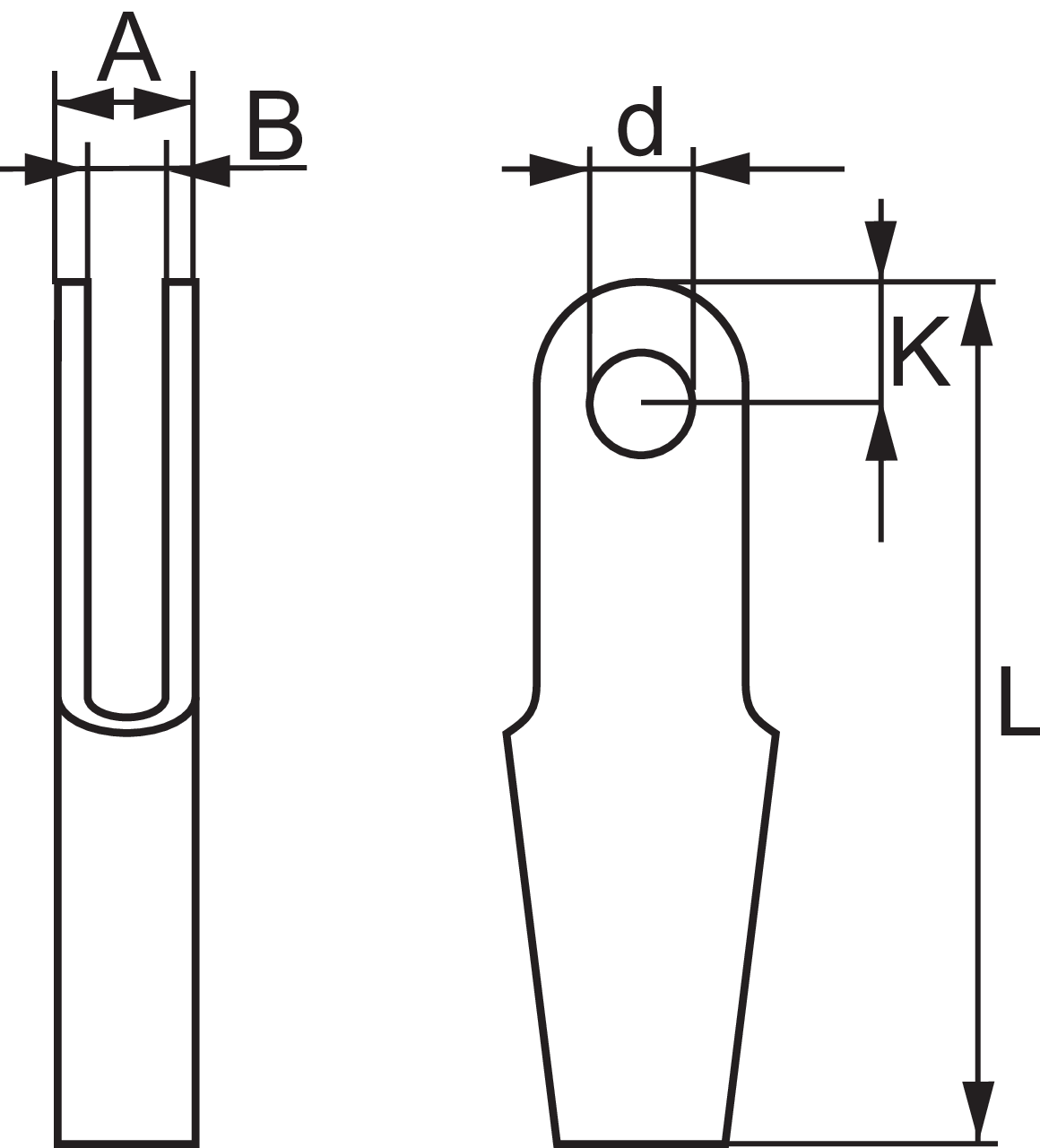

Wedge socket 3050 housing measurements
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Finish A
mm
B
mm
K
mm
L
mm
D
mm
Weight
kg
04G0010 6-8 Galvanized 22 14 20 150 12 0,5
04G0020 9-11 Galvanized 29 17 26 190 16 1,1
04G0030 12-14 Galvanized 38 22 32 230 18 2,1
04G0040 15-17 Galvanized 45 25 36 260 22 3,5
-- 18-20 Galvanized 51 27 40 300 25 5,5
